Brand: Whirlpool
Model: KOCE500ESS11 - WALL OVEN, MICRO COMBO, SINGLE, 30 INCH

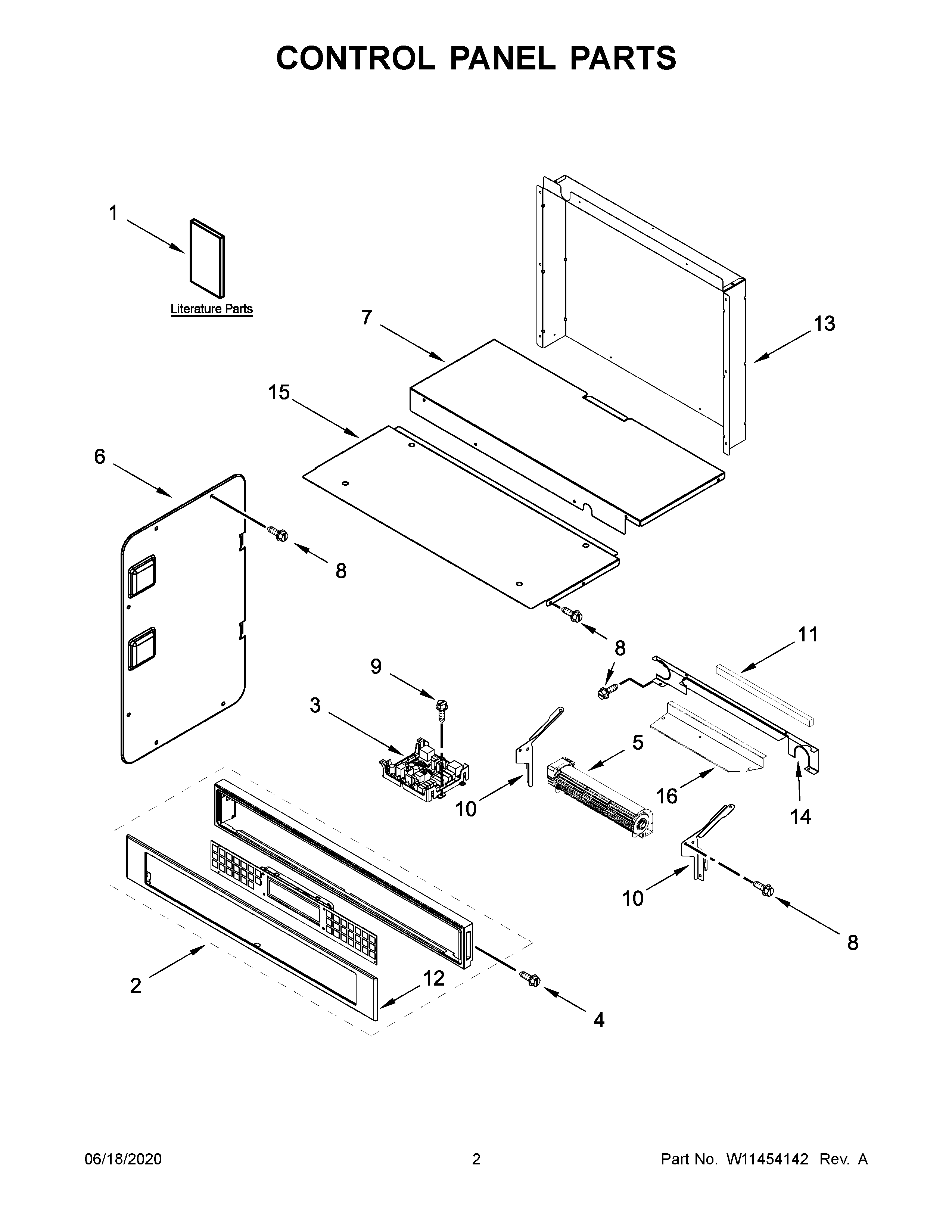

02 - CONTROL PANEL PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10725683 | INSTRUCTIONS, INSTALLATION | $0.00 | |||
| 1A | W10643472 | GUIDE, USE & CARE (OVEN) | $0.00 | |||
| 1B | W10643473 | GUIDE, USE & CARE (MICROWAVE OVEN) | $0.00 | |||
| 1C | W11041081 | SHEET, TECH (ENGLISH) | $0.00 | |||
| 1D | W11041082 | SHEET, TECH (FRENCH) | $0.00 | |||
| 2 | W10890569 | CONTROL PANEL | W11093255 | $770.85 | ||
| 2A | W10890566 | SWTCH-MEMB | W10916779 | $458.62 | ||
| 2B | W10890568 | CONTROL PANEL | W11093254 | $745.23 | ||
| 2C | W10890563 | SWITCH-MEMBRANE | W10916778 | $429.87 | ||
| 3 | W11040195 | CONTROL BOARD | W11179310 | $454.96 | ||
| 4 | W11249635 | SCREW | WPY706189 | $5.97 | ||
| 5 | W11200130 | BLOWER | W11245567 | $329.97 | ||
| 6 | W10655467 | COVER-SIDE | $62.57 | |||
| 7 | W10588732 | COVR-ACESS | $170.25 | |||
| 9 | 7101P434-60 | SCREW | WP7101P434-60 | $6.62 | ||
| 10 | W10655463 | BRKT-MNTG | $25.48 | |||
| 10A | W10655462 | BRKT-MNTG | $25.48 | |||
| 11 | 4451758 | SEAL-FOAM | W10491987 | $6.28 | ||
| 12 | W10588744 | PANL-CNTRL | $193.58 | |||
| 12A | W10588746 | PANL-CNTRL | $193.90 | |||
| 12B | W10588740 | CONTROL PANEL | $161.66 | |||
| 12C | W10776407 | PANL-CNTRL | $206.29 | |||
| 13 | W11037653 | REAR COVER | $52.91 | |||
| 14 | W10618126 | BRKT-MNTG | $58.06 | |||
| 15 | W10318158 | COVR-ACESS | $61.42 | |||
| NI | N/P | FOLLOWING PARTS NOT ILLUSTRATED | $0.00 | |||
| NI | W11157180 | HARNS-WIRE | $173.82 | |||
| NI | W11157223 | HARNS-WIRE | $86.66 | |||
| NI | W11132989 | HARNESS,DOOR LATCH | $86.66 | |||
| NI | W11229448 | HARNS-WIRE | $173.82 | |||
| NI | W11356968 | HARNS-WIRE | $113.26 | |||
| NI | 3400015 | SCREW | WP3400015 | $5.09 | ||
| NI | W11226264 | HARNS-WIRE | $86.66 | |||
| NI | 4448664 | MOUNTING BRACKET | $18.06 | |||
| NI | W10017410 | FUSE 20 AMP | WPW10017410 | $15.54 | ||
| NI | 4454949 | FUSE HOLDER | $69.45 | |||
| NI | W10431303 | HARDWARE | W10760039 | $7.73 |
*The price can change whitout warning
