Brand: Maytag
Model: DE308 - ELECTRIC DRYER

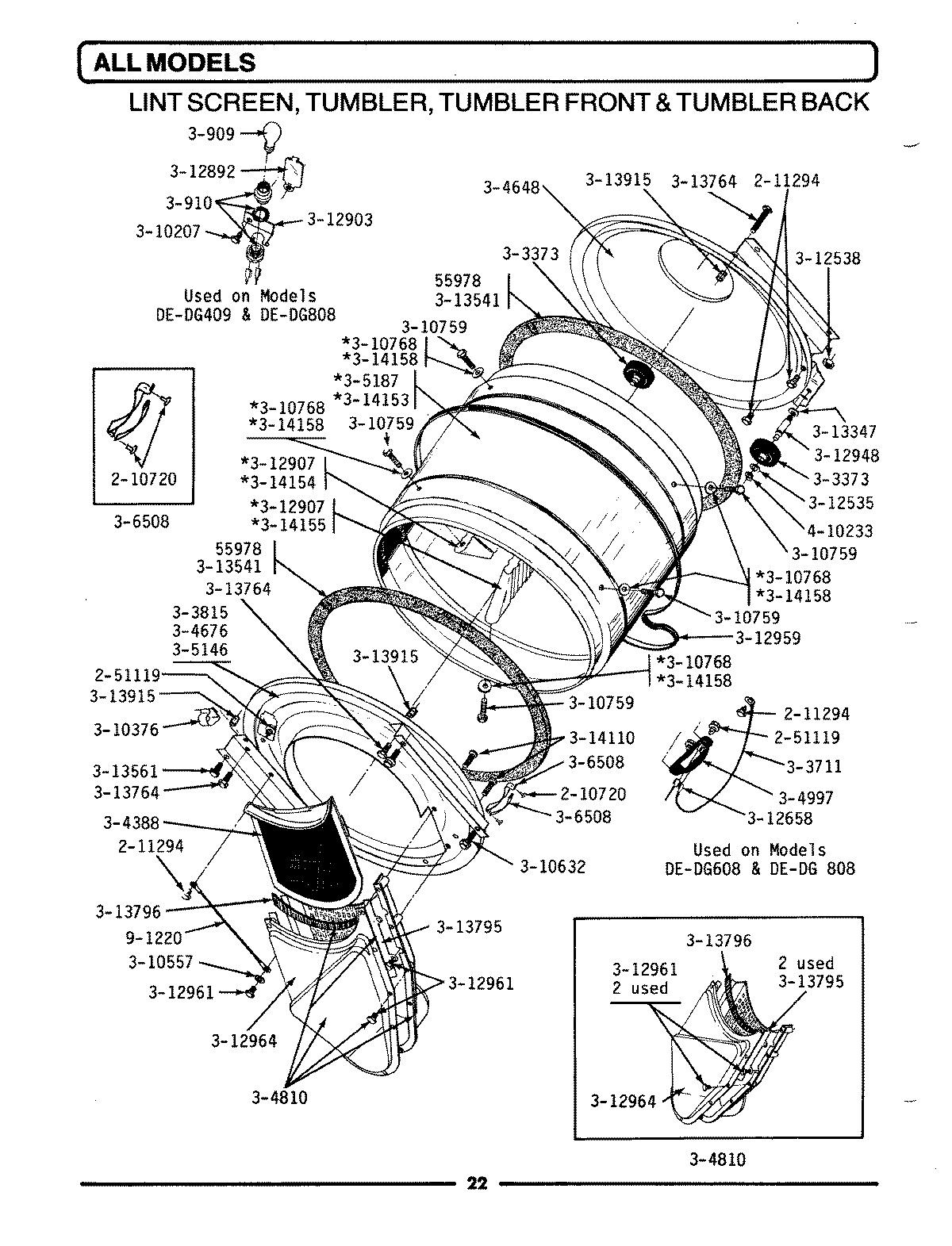

06 - LINT SCREEN, TUMBLER (FRONT & BACK)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | Y053241 | SET SCREW, PULLEY | $0.00 | |||
| 2 | Y055978 | RUBBER ADHESIVE, 2 OZ TUBE | $0.00 | |||
| 3 | 210720 | RIVET | WP210720 | $12.81 | ||
| 8 | Y303373 | MAYTAG DRUM ROLLER | 12001541 | $22.12 | ||
| 9 | Y303711 | SENSOR GROUND WIRE | $0.00 | |||
| 10 | Y303815 | TUMBLER FRONT----SUB | $0.00 | |||
| 11 | Y304244 | PULLEY-MTR | WP6-3042440 | $46.03 | ||
| 12 | Y304388 | 12" LINT FILTER | WP33001003 | $43.25 | ||
| 13 | Y304648 | TUMBLER BACK WITH SEAL | $0.00 | |||
| 15 | Y304810 | OUTLET DUCT ASSEMBLY | $0.00 | |||
| 18 | Y305185 | PULLEY, MOTOR (W/SET SCREW) | $0.00 | |||
| 19 | 305187 | TUMBLER | $0.00 | |||
| 20 | 306508 | GLIDE KIT - TUMBLER | $17.62 | |||
| 22 | Y310376 | CLIP, WIRE HARNESS | $0.00 | |||
| 23 | 310557 | WASHER | $0.00 | |||
| 24 | Y310632 | SCREW | $6.43 | |||
| 25 | Y310759 | SCREW | WPY310759 | $5.91 | ||
| 26 | 310768 | WASHER | $0.00 | |||
| 27 | 312535 | WASHER | WP312535 | $8.88 | ||
| 28 | 312538 | NUT,HEXAGONE | WP33001443 | $5.97 | ||
| 32 | Y312907 | TUMBLER BAFFLE | $0.00 | |||
| 33 | Y312948 | ROLLER SHAFT | WP6-3129480 | $8.42 | ||
| 34 | Y312959 | DRYER BELT 100" | WPY312959 | $25.54 | ||
| 35 | Y312961 | SCREW | WPW10116751 | $5.91 | ||
| 36 | Y312964 | OUTLET DUCT - OUTER HALF | $0.00 | |||
| 37 | Y313347 | WASHER | WP312535 | $8.88 | ||
| 38 | Y313541 | FELT | WP33313541 | $24.53 | ||
| 39 | Y313561 | SCREW | WPY313561 | $5.09 | ||
| 40 | 313764 | SCREW | $0.00 | |||
| 41 | Y313795 | GUIDE FOR LINT SCREEN | $0.00 | |||
| 42 | Y313796 | LINT SEAL | $0.00 | |||
| 43 | 313915 | COVER, THREAD | 65004704 | $0.00 | ||
| 44 | Y314110 | SCREW | WP33002917 | $5.63 | ||
| 45 | Y314153 | TUMBLER | $0.00 | |||
| 46 | 314154 | TUMBLER BAFFLE - SHORT | $0.00 | |||
| 47 | 314155 | BAFFLE TALL | 33001004 | $112.31 | ||
| 48 | 314158 | WASHER | $0.00 | |||
| 49 | 410233 | RING-RETAINER | WP9703438 | $3.20 | ||
| 50 | 901220 | WIRE, GROUND | $0.00 |
*The price can change whitout warning
