Marque: Whirlpool
Modèle: KERA807PWW02

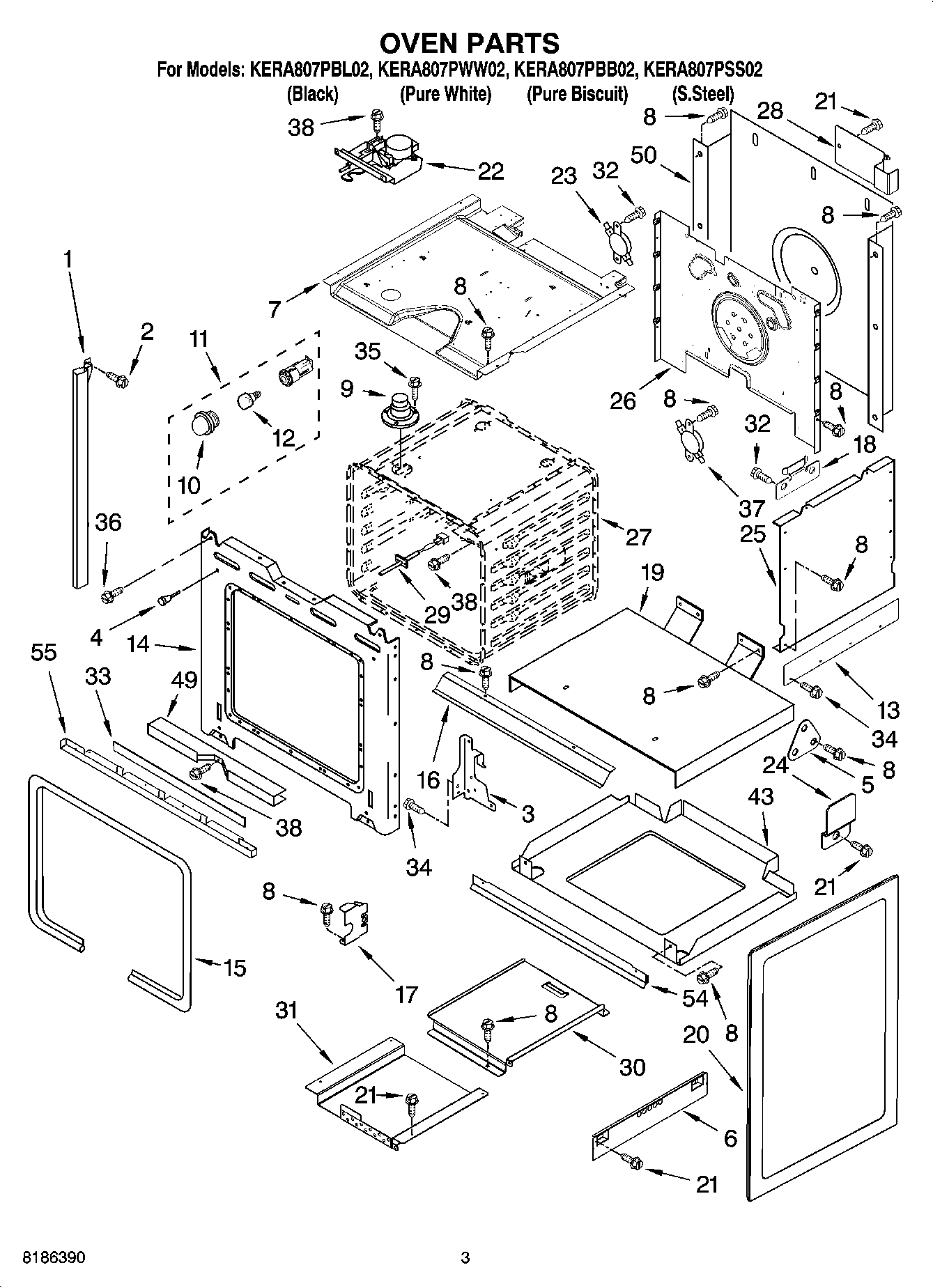

03 - OVEN PARTS
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | 9756619WH | Trim, Side (Right Hand) (White) | ||||
| 1 | 9756619BT | Trim, Side (Right Hand) (Biscuit) | ||||
| 1 | 9756619BL | Trim, Side (Right Hand) (Black) | ||||
| 1 | 9756619SS | Trim, Side (Right Hand) (S.Steel) | ||||
| 1 | 9756620WH | Trim, Side (Left Hand) (White) | ||||
| 1 | 9756620BT | Trim, Side (Left Hand) (Biscuit) | ||||
| 1 | 9756620BL | Trim, Side (Left Hand) (Black) | ||||
| 1 | 9756620SS | Trim, Side (Left Hand) (S.Steel) | ||||
| 2 | 3400832 | VIS | WP3400832 | Appeler pour commander | ||
| 3 | 4455605 | RECEPTACLE DE PENTURE | WP4455605 | Appeler pour commander | ||
| 3 | 4455606 | PENTURE | WP4455606 | Appeler pour commander | ||
| 4 | 4448520 | BUMPER | Appeler pour commander | |||
| 5 | 9757461 | BRACKET,SIDE PANEL | ||||
| 6 | 9757811 | Brace, Side Panel | ||||
| 7 | 8303099 | Top Chassis | ||||
| 8 | 4449809 | VIS | WP4449809 | Appeler pour commander | ||
| 9 | 4452158 | TUBE-VENT | W10861715 | Appeler pour commander | ||
| 10 | 4452165 | Lens, Light | ||||
| 11 | 4452368 | Oven Light Assy | ||||
| 12 | 4452166 | LUMIERE 15W 125V | WP4173175 | Appeler pour commander | ||
| 13 | 9757732 | Shield, Heat | ||||
| 14 | 9759060 | Frame, Front | ||||
| 15 | 4455382 | JOINT DE PORTE | W11675844 | Appeler pour commander | ||
| 16 | 4453951 | Deflector, Vent Bottom | ||||
| 17 | 4452152 | BRKT-MNTG | Appeler pour commander | |||
| 18 | 9757685 | GUIDE-PANL | WP9757685 | Appeler pour commander | ||
| 19 | 4451478 | Support, Insulation | ||||
| 20 | 9760723PB | BODY, SIDE BLACK | ||||
| 20 | 9760723PC | Body, Side (Biscuit) | ||||
| 20 | 9760723PW | Body, Side (White) | ||||
| 21 | 3196537 | VIS | WP3196557 | Appeler pour commander | ||
| 22 | 9760888 | LOQUET,PORTE | WP9760889 | Appeler pour commander | ||
| 23 | 341196 | Thermostat SPST (205) | WP341196 | |||
| 24 | 9759890 | Clip, Side Panel | ||||
| 25 | 4455641 | PANEL-SIDE | W10782197 | Appeler pour commander | ||
| 26 | 9759761 | Back, Chassis | ||||
| 27 | N/A | Liner, Oven (Not serviceable) | ||||
| 28 | 9759945 | Cover, Rear Standoff | ||||
| 29 | 4455636 | SONDE | WPW10131825 | Appeler pour commander | ||
| 30 | 9756454 | Bracket, GOC | ||||
| 31 | 9756452 | SLIDE | W10083460 | Appeler pour commander | ||
| 32 | 3196160 | VIS | W10491985 | Appeler pour commander | ||
| 33 | 9757717 | Insulation, Bottom Vent | ||||
| 34 | 4449743 | MTR SC LRCA BLK | WP4449743 | Appeler pour commander | ||
| 35 | 3196176 | VIS | W11233072 | Appeler pour commander | ||
| 36 | 4449040 | SCREW | WP4449040 | Appeler pour commander | ||
| 37 | 9759242 | THERMOSTAT FIX | WP9759242 | Appeler pour commander | ||
| 38 | 4449154 | SCREW | WP4449154 | Appeler pour commander | ||
| 43 | 9759713 | Base, Chassis | ||||
| 49 | 4448933 | SUPPORT, JOINT | WP4448933 | Appeler pour commander | ||
| 50 | 4451747 | COVER-REAR | WP4451747 | Appeler pour commander | ||
| 54 | 9756481WH | Vent, Bottom Upper (White) | ||||
| 54 | 9756481BT | Vent, Bottom Upper (Biscuit) | ||||
| 54 | 9756481BL | Vent, Bottom Upper (Black) | ||||
| 54 | 9756481SS | Vent, Bottom Upper (S. Steel) | ||||
| 55 | 9756485WH | Trim, Btm Vent (White) | ||||
| 55 | 9756485BT | Trim, Bottom Vent (Biscuit) | ||||
| 55 | 9756485BL | Vent, Bottom Lower (Black) | ||||
| 55 | 9756485SS | Trim, Btm Vent (S.Steel) | ||||
| 55 | N/A | FOLLOWING PARTS NOT ILLUSTRATED INSULATION | ||||
| 55 | 9756817 | Insulation, Wrap | ||||
| 55 | 9756470 | Insulation, Back |
*Le prix peut changer sans préavis
