Marque: Whirlpool
Modèle: KERA807PWW02 - 30" FREE STANDING ELECTRIC OVEN CONVECTION

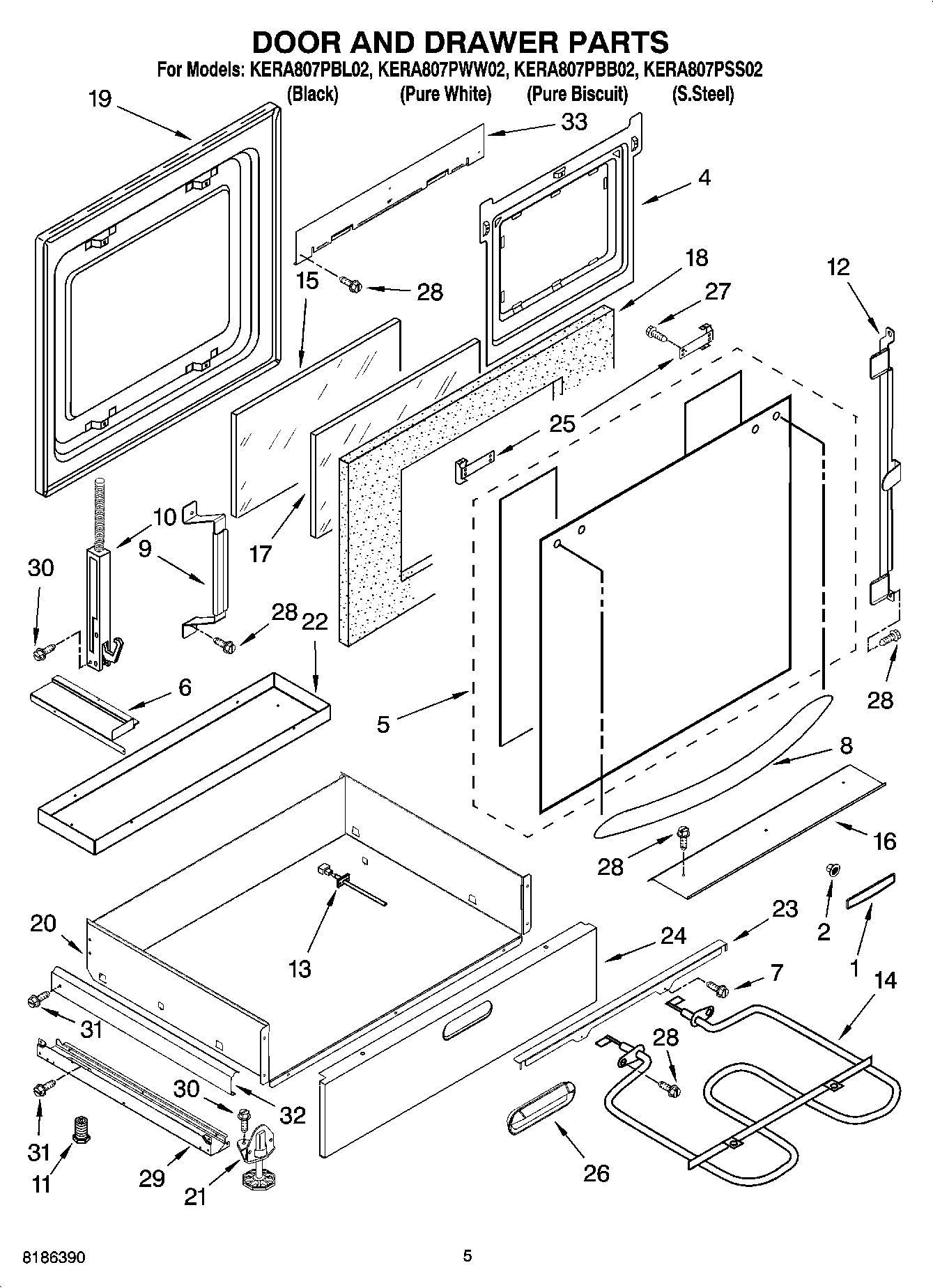

04 - DOOR AND DRAWER PARTS
- 01 - COOKTOP PARTS
- 02 - CONTROL PANEL PARTS
- 03 - OVEN PARTS
- 04 - DOOR AND DRAWER PARTS
- 05 - INTERNAL OVEN PARTS
- 06 - TOP VENTING PARTS, OPTIONAL PARTS
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | 9757730BL | Nameplate (Black) | ||||
| 1 | 9757730BT | Nameplate (Biscuit) | ||||
| 1 | 9757730WH | Nameplate (White) | ||||
| 2 | 4453107 | Palnut | ||||
| 4 | 4457132 | RETAINER | WP4457132 | 140,19$ | ||
| 5 | 9757102BL | Glass, Door Front (Black) | ||||
| 5 | 9757102WH | Glass, Door Front (White) | ||||
| 5 | 9757102BT | Glass, Door Front (Biscuit) | ||||
| 5 | 9757102SS | Glass, Door Front (S.Steel) | WP9757102SS | |||
| 6 | 9760887 | Cover, Terminal | ||||
| 7 | 3196176 | VIS | W11233072 | 12,16$ | ||
| 8 | 9756833BL | Handle, Door (Black) | ||||
| 8 | 9756833WH | Handle, Door (White) | ||||
| 8 | 9756833BT | Handle, Door (Biscuit) | ||||
| 8 | 9756833OG | Handle, Door (S.Steel) | ||||
| 9 | 8302094 | Bracket, Central | ||||
| 10 | 9760579 | PENTURE DE FOUR DROIT (ORANGE) | WP9760579 | 66,46$ | ||
| 10 | 9760580 | PENTURE DE FOUR GAUCHE (ORAN) | WP9760574 | 63,08$ | ||
| 11 | 9761935 | PATTE DE NIVELLEMENT | WPW10058460 | 4,61$ | ||
| 12 | 8302092 | BRKT-MNTG | WP9759229 | 101,45$ | ||
| 13 | 8274149 | THERMISTOR | WP8274149 | 142,59$ | ||
| 14 | 8054056 | ELMNT-WARM | 9760775 | 98,23$ | ||
| 15 | 9757706 | VITRE INTERIEUR | WP9757706 | 103,92$ | ||
| 16 | 4457114 | SHIELD-HT | Appeler pour commander | |||
| 17 | 4449263 | VITRE-PORTE | WP4449263 | 112,40$ | ||
| 18 | 4451722 | ISOLATION,PORTE | WP4451722 | 97,01$ | ||
| 19 | 9759413 | CONTRE-PORTE | WP9759413 | 187,00$ | ||
| 20 | 9757805 | Drawer Assy | ||||
| 21 | 3196037 | PATTE DE NIVELLEMENT | WP3196037 | 45,97$ | ||
| 22 | 9760590 | Panel, Drawer | ||||
| 23 | 9758676 | Support, Element | ||||
| 24 | 4453799WH | Front, Drawer (White) | ||||
| 24 | 4453799BL | Front, Drawer (Black) | ||||
| 24 | 4453799BT | Front, Drawer (Biscuit) | ||||
| 24 | 4453799SS | Front, Drawer (S.Steel) | ||||
| 25 | 4457231 | Bracket, Handle (R.Hand) | ||||
| 25 | 4457232 | Bracket, Handle (L.Hand) | ||||
| 26 | 9756952WH | Handle, Drawer (White) | ||||
| 26 | 9756952BT | Handle, Drawer (Biscuit) | ||||
| 26 | 9756952BL | Handle, Drawer (Black) | ||||
| 26 | 9756952CM | Handle, Drawer (S.Steel) | ||||
| 27 | 8533988 | VIS | WP8533988 | 6,64$ | ||
| 28 | 4449809 | VIS | WP4449809 | 6,32$ | ||
| 29 | 9759953 | Side, Base (R.Side) | ||||
| 29 | 9759954 | Side, Base (L.Side) | ||||
| 30 | 4449743 | MTR SC LRCA BLK | WP4449743 | 6,34$ | ||
| 31 | 3196537 | Screw | WP3196557 | |||
| 32 | 4453719 | GLISSIERE-TIROIR | WPW10155633 | 58,64$ | ||
| 32 | 4453718 | GLISSIERE - TIROIR, GAUCHE | WPW10155632 | 61,62$ | ||
| 33 | 9757707 | Shield, Heat Top |
*Le prix peut changer sans préavis
