Marque: Whirlpool
Modèle: KERA807PWW02

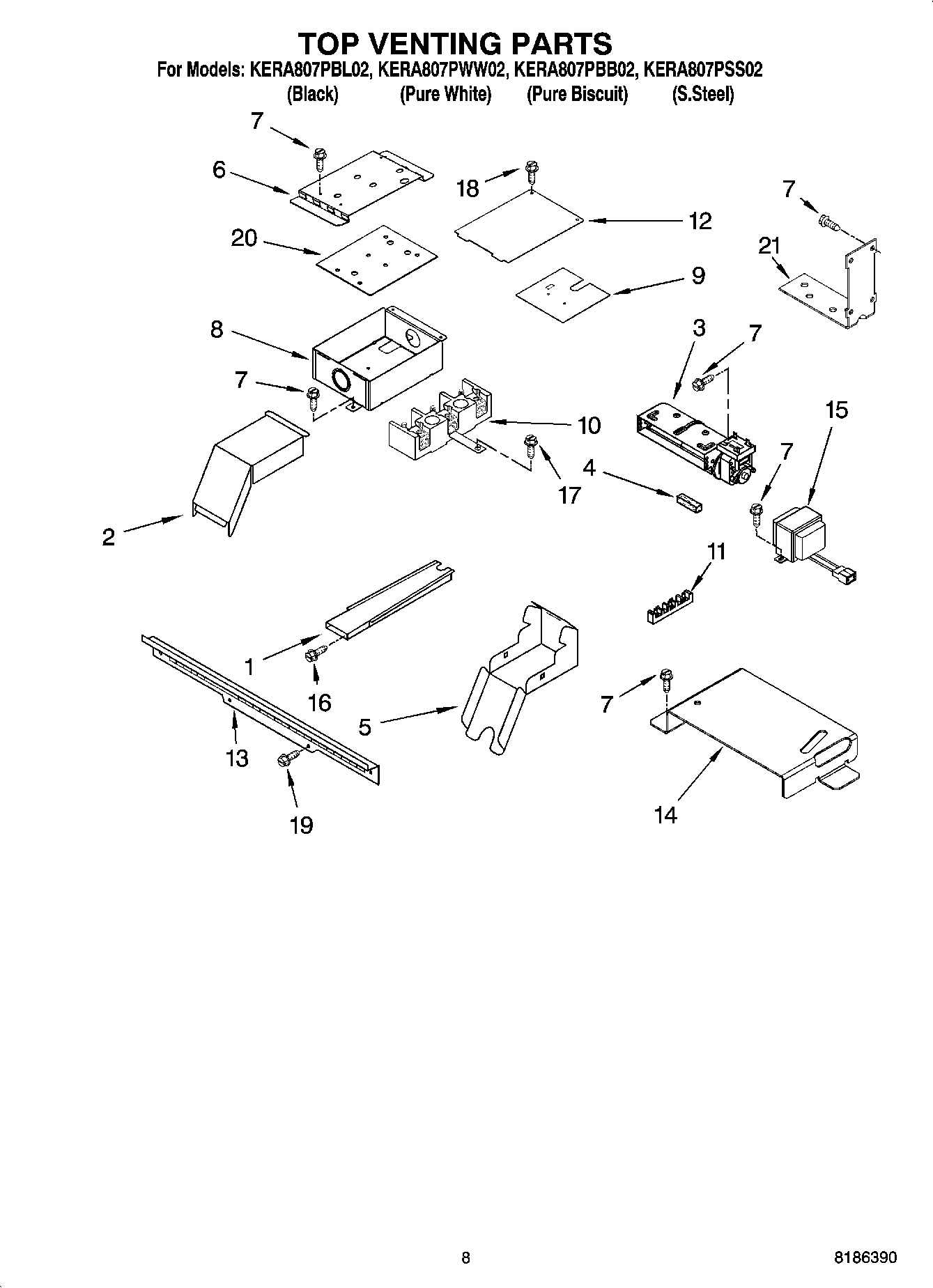

06 - TOP VENTING PARTS, OPTIONAL PARTS
- 01 - COOKTOP PARTS
- 02 - CONTROL PANEL PARTS
- 03 - OVEN PARTS
- 04 - DOOR AND DRAWER PARTS
- 05 - INTERNAL OVEN PARTS
- 06 - TOP VENTING PARTS, OPTIONAL PARTS


# sur le plan | # de pièce | Description | Remplacement | Prix | ||
---|---|---|---|---|---|---|
1 | 4451759 | VENT-EXHST | 75,12$ | |||
2 | 4455178 | ELBOW-TOP | 11,34$ | |||
3 | 8300223 | VENTILATEUR | W10810687 | 331,09$ | ||
3 | 9759320 | VENTILATEUR | W10810687 | 331,09$ | ||
4 | 4451758 | SEAL-FOAM | W10491987 | 6,28$ | ||
5 | 4455177 | ELBOW-BTM | 8,84$ | |||
6 | 9759938 | Bracket, Term.Box | 0,00$ | |||
7 | 4449809 | VIS | WP4449809 | 6,32$ | ||
8 | 9757404 | BOX-TERMNL | W10115858 | 92,06$ | ||
9 | 9759721 | INSULATOR | 89,85$ | |||
10 | 9761958 | BLOC DE RACCORDEMENT | WP9761958 | 33,79$ | ||
11 | 4449868 | BLOC DE RACCORDEMENT | WP8203546 | 23,61$ | ||
12 | 9757405 | Cover, Term Box | 0,00$ | |||
13 | 9757118BL | Vent, (Control Panel) | 0,00$ | |||
14 | 9757829 | BRKT-MNTG | WP9757829 | 68,18$ | ||
15 | 9756551 | Transformer | 0,00$ | |||
16 | 4449040 | SCREW | WP4449040 | 6,46$ | ||
17 | 3400080 | SCREW | W11684512 | 11,19$ | ||
18 | 3196160 | VIS | W10491985 | 6,68$ | ||
19 | 4450038 | VIS | WP4450038 | 6,32$ | ||
20 | 9759884 | Insulation | 0,00$ | |||
21 | 4455352 | SUPPORT,MONTAGE | WP4455352 | 31,48$ | ||
72017 | RETOUCHE BLANC | 11,47$ | ||||
261869 | PEINTURE CW | WP261869 | 19,59$ | |||
72032 | RETOUCHE NOIR | 17,49$ | ||||
350930 | PEINTURE,SPRAY | 16,77$ | ||||
261900 | SPRAY | 33,56$ | ||||
830864 | PEINTURE NOIR AEROSOL 12OZ. | 285006 | 30,51$ | |||
N/A | ADHESIVE | 0,00$ | ||||
591014 | ADHESIVE LOCTITE (1/3 OZ.) | 0,00$ | ||||
482338 | ADHESIF | WP482338 | 62,07$ | |||
242828 | Wire (12 Ga. 150 c Black) | 0,00$ | ||||
242820 | Wire (14 Ga. 150 c Black) | 0,00$ | ||||
242821 | Wire (14 Ga. 150 c Blue) | 0,00$ | ||||
242822 | Wire (14 Ga. 150 c Brown) | 0,00$ | ||||
242830 | Wire (14 Ga. 200 c Brown) | 0,00$ | ||||
242823 | Wire (14 Ga. 150 c Green) | 0,00$ | ||||
242824 | Wire (14 Ga. 150 c Orange) | 0,00$ | ||||
242829 | Wire (12 Ga. 150 c Red) | 0,00$ | ||||
242825 | Wire (14 Ga. 150 c Red) | 0,00$ | ||||
242831 | WIRE | 251,91$ | ||||
242826 | Wire (14 Ga. 150 c White) | 0,00$ | ||||
242827 | Wire (14 Ga. 150 c Yellow) | 0,00$ | ||||
242832 | Wire (14 Ga. 200 c Yellow) | 0,00$ | ||||
9762523 | Harness, Wire (Main) | 0,00$ | ||||
9760693 | Harness, Wire (Switch, Elec) | 0,00$ | ||||
9756554 | Harness, Wire | 0,00$ | ||||
9759715 | Conduit | 0,00$ | ||||
313660 | Clip, Ground Wire | 0,00$ | ||||
4448664 | SUPPORT,MONTAGE | 18,06$ | ||||
4449809 | VIS | WP4449809 | 6,32$ | |||
112432 | NUT | WP112432 | 6,32$ | |||
4450800 | SCREW | 12,16$ | ||||
4452222 | Spacer, Harness | 0,00$ | ||||
3400015 | SCREW | WP3400015 | 5,09$ | |||
814381 | GOUPILLE,PORTE | 6,81$ | ||||
4448950 | SCREW | WP4448950 | 5,29$ | |||
9782676 | ANCRAGE | W11447673 | 24,49$ |
*Le prix peut changer sans préavis
