Brand: Electrolux
Model: EIDW6105GS0 - DISHWASHER

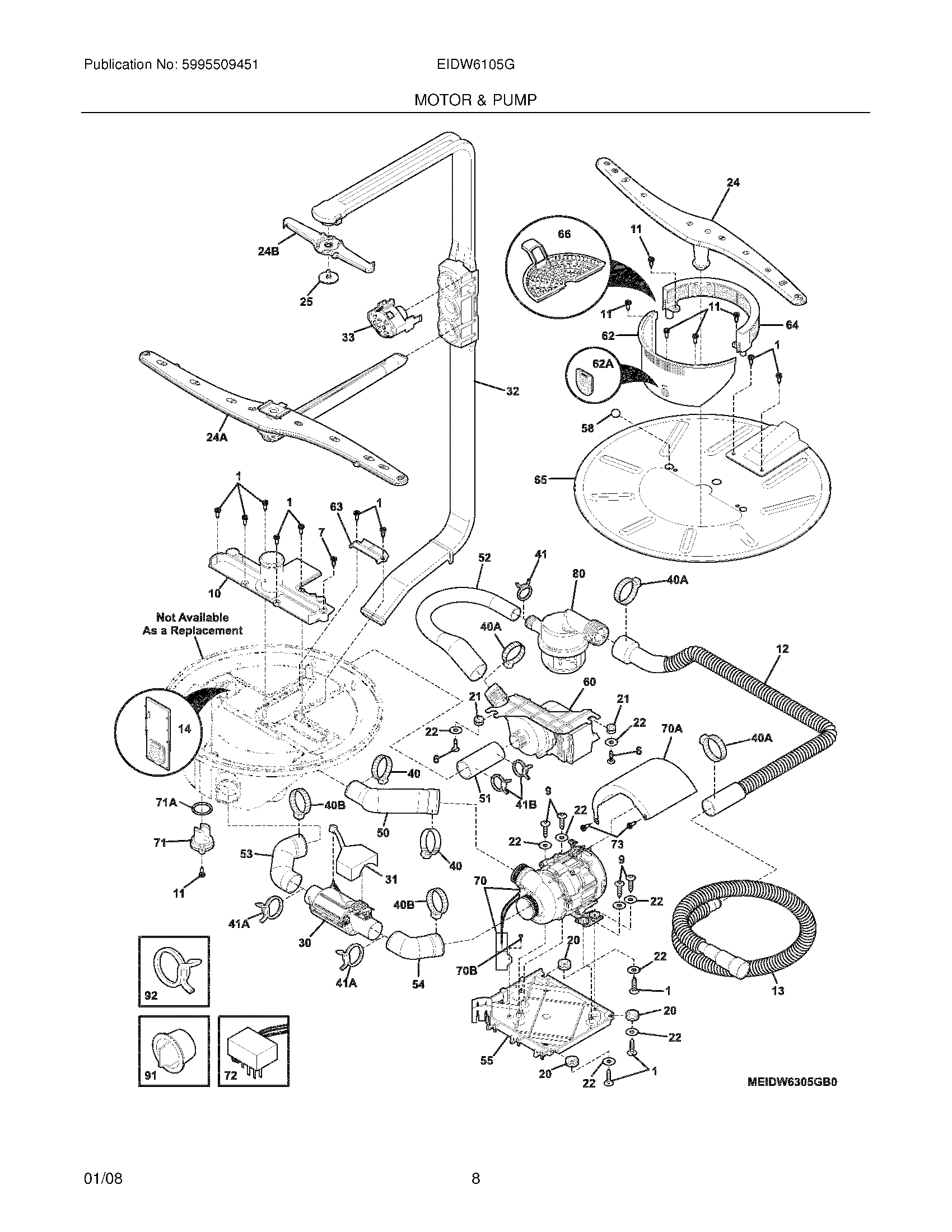

09 - MOTOR & PUMP
- 01 - COVER
- 03 - CONTROL PANEL
- 05 - DOOR
- 07 - UPPER FRAME/TUB
- 09 - MOTOR & PUMP
- 11 - LOWER FRAME
- 13 - RACKS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 7154518001 | SCREW,PAN HEAD,#10-16 X .8" | 154518001 | $10.80 | ||
| 6 | 7154518301 | Screw,6 lobe recess ,No.8-18 | 154518301 | $0.00 | ||
| 7 | 7154673501 | Screw,6 lobe recess ,No.10 hi lo | 154673501 | $0.00 | ||
| 9 | 7154625701 | SCREW,CONTROL MTG | 5304453707 | $15.25 | ||
| 10 | 7154602001 | Support,lower spray arm | 154763201 | $0.00 | ||
| 11 | 75303316032 | Screw,truss ss ,8 .625 ,(7) | 5303316032 | $0.00 | ||
| 12 | 7154654801 | Hose,drain ,Intermediate | 154654801 | $0.00 | ||
| 13 | 7154654901 | MAIN DRAIN HOSE | 5304521094 | $55.90 | ||
| 14 | 7154511801 | BRACKET,DRAIN | 154793601 | $15.25 | ||
| 20 | 7154678602 | Grommet,vibration ,(3) | 154740001 | $0.00 | ||
| 21 | 7154672502 | GROMMET,VIBRATION,(2) | 154672502 | $19.25 | ||
| 22 | 75300809968 | WASHER | 5300809968 | $43.55 | ||
| 24 | 7154610001 | SPRAY ARM ASM,LOWER | 154755501 | $58.80 | ||
| 24A | 7154508201 | SPRAY ARM ASSY,MIDDLE | 154508201 | $40.65 | ||
| 24B | 7154649502 | UPPER SPRAY ARM ASM | 154649502 | $21.80 | ||
| 25 | 7154650102 | PIN,SPRAY ARM,UPPER | 154650102 | $8.70 | ||
| 30 | 7154503701 | HEATER,INLINE,1200W | 154503701 | $66.05 | ||
| 31 | 7154622901 | Cover,inline heater | 154622901 | $0.00 | ||
| 32 | 7154515602 | Tubing Assembly,delivery ,w/check valve | 154515602 | $0.00 | ||
| 33 | 7154616502 | Nozzle Assembly,Mid Level | 154616502 | $0.00 | ||
| 40 | 7154106801 | CLAMP,SPRING,RED,(2) | 154611101 | $12.35 | ||
| 40A | 7154380601 | CLAMP-HOSE | 154380601 | $75.50 | ||
| 40B | 7154672601 | WORMGEAR CLAMP,0.75"-1.75" | 5304513829 | $6.55 | ||
| 41 | 7154348401 | CLAMP, RED, PUMP | 154348401 | $33.10 | ||
| 41A | 7154611101 | CLAMP,SPRING,RED,(2) | 154611101 | $12.35 | ||
| 41B | 7154691501 | CLAMP,SPRING,(2) | 154691501 | $8.60 | ||
| 50 | 7154679602 | HOSE,SUMP TO MOTOR,CIRCULATION | 154679602 | $35.85 | ||
| 51 | 7154491202 | HOSE,SUMP TO ,DRAIN PUMP | 154757702 | $12.05 | ||
| 52 | 7154622402 | HOSE,DRAIN PUMP TO DRAIN VALVE | 154622402 | $56.35 | ||
| 53 | 7154653201 | Hose,sump to ,inline heater | $0.00 | |||
| 54 | 7154653301 | Hose,inline heater ,to motor | $0.00 | |||
| 55 | 7154677101 | PLATE,MOTOR MOUNTING | 154677101 | $71.10 | ||
| 58 | 7154512401 | Check ball | $0.00 | |||
| 60 | 7154618701 | WATER PUMP | 154757901 | $129.90 | ||
| 62 | 7154600702 | Filter Assembly,vertical ,w/flapper | $0.00 | |||
| 62A | 7154511601 | FLAPPER,DRAIN CHECK | 154511601 | $18.15 | ||
| 63 | 7154513501 | Cover,delivery tube | 154513501 | $0.00 | ||
| 64 | 7154604502 | Filter Assembly,fine soil ,pressurized | $0.00 | |||
| 65 | 7154624901 | FILTER ASSY,COARSE SOIL,W/CHIM | 154624901 | $195.20 | ||
| 66 | 7154514302 | Trap,glass | 154740901 | $0.00 | ||
| 70 | 7154614001 | Motor & Pump Assy,circulation ,w/capacitor | 154614002 | $0.00 | ||
| 70A | 7154656401 | Shield,motor ,circulation | 154656401 | $0.00 | ||
| 70B | 7154614401 | Screw,capacitor mtg. | 154614401 | $0.00 | ||
| 71 | 7154473901 | SENSOR | 154473901 | $214.10 | ||
| NI | 7154627001 | HARNESS,WIRING,TURBID MODULE | 154833101 | $17.25 | ||
| 71A | 7154376001 | O-RING,TURBIDITY | 154376001 | $7.75 | ||
| 72 | 7154655901 | SENSOR,LEAK DETECTOR | 154655901 | $108.15 | ||
| 73 | 7154518401 | Screw,6 lobe recess ,No.8-32 | 154518401 | $0.00 | ||
| 80 | 7154622001 | DRAIN VALVE ASSY | 154622001 | $187.25 | ||
| 91 | 7154676701 | Plug,drain hose | 154676701 | $0.00 | ||
| 92 | 7154348502 | CLAMP,RED,PUMP | 154348502 | $9.45 |
*The price can change whitout warning
