Brand: Electrolux
Model: EIDW6105GS0 - DISHWASHER

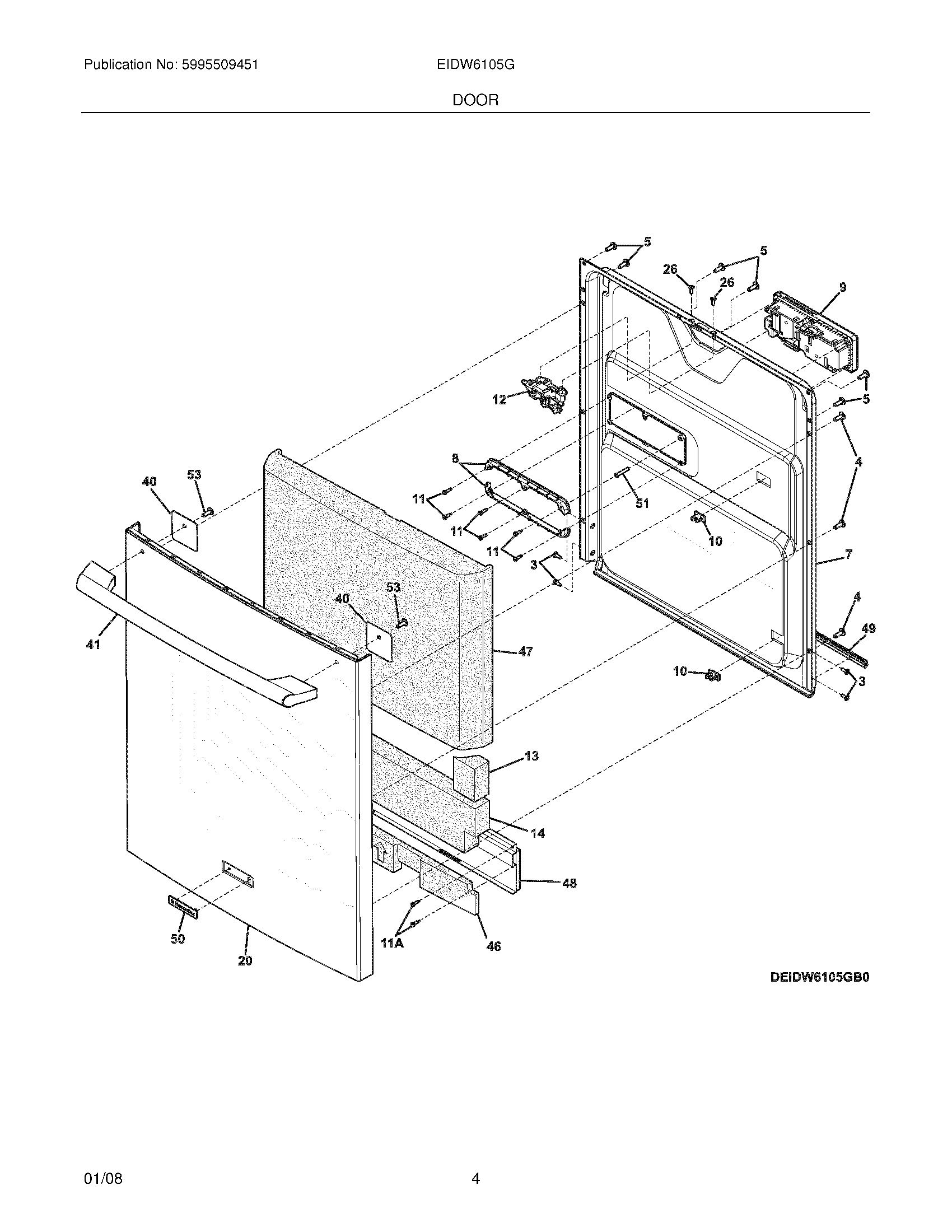

05 - DOOR
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 3 | 7154518201 | Screw,6 lobe recess ,No.10-32 ,(4) | 154518201 | $0.00 | ||
| 4 | 7154603801 | SCREW,LOW PROFILE,TRUSS,(6) | 154603801 | $14.50 | ||
| 5 | 7154603701 | Screw,PH ,No.10-16 hi-lo ,(6) ,6 lobe | 154603701 | $0.00 | ||
| 7 | 7154509701 | Liner Assembly,door ,inner ,w/mastic | $0.00 | |||
| 8 | 7154670901 | Bracket,dispenser mtg. ,(2) | 154670901 | $0.00 | ||
| 9 | 7154574405 | DISTRIBUTOR, DET / PRODUCT RI | 5304507354 | $71.85 | ||
| 10 | 7154633501 | Clip,wiring harness | 154633501 | $0.00 | ||
| 11 | 7154625702 | Screw,FT PH 6 lobe ,No.8-18 | 154625702 | $0.00 | ||
| 11A | 7154518301 | Screw,6 lobe recess ,No.8-18 | 154518301 | $0.00 | ||
| 12 | 7154671401 | LATCH ASSY,DOOR | 154671402 | $97.25 | ||
| 13 | 7154670701 | Foam,door ,sides ,(2) | $0.00 | |||
| 14 | 7154623401 | Foam,door | $0.00 | |||
| 20 | 7154603501 | Door,outer ,stainless | 154603501 | $0.00 | ||
| 26 | 7154519101 | Screw,Phlps Hd ,No.10-16 hi lo ,(4) | 154519101 | $0.00 | ||
| 40 | 7154603401 | PLATE,HANDLE SUPPORT,(2) | 154603401 | $0.00 | ||
| 41 | 7241761013 | Handle,door ,stainless | 241881305 | $0.00 | ||
| 46 | 7154690501 | Support,door ,bottom | $0.00 | |||
| 47 | 7154672001 | Moisture Barrier,assembly ,door ,w/data sheet | 154672001 | $0.00 | ||
| 48 | 7154670301 | Reinforcement,assembly ,door | 154670301 | $0.00 | ||
| 49 | 7154610601 | Gasket,door bottom | 154859401 | $0.00 | ||
| 50 | 7154658705 | PLAQUE-MARQUE,STAINLESS STEEL | 241873301 | $4.35 | ||
| 51 | 7154320301 | Clamp,drip loop ,wire | 154320301 | $0.00 | ||
| 53 | 7154633601 | SCREW,HANDLE MTG.,(2) | 154633601 | $15.25 |
*The price can change whitout warning
