Brand: Electrolux
Model: EIDW6105GS0 - DISHWASHER

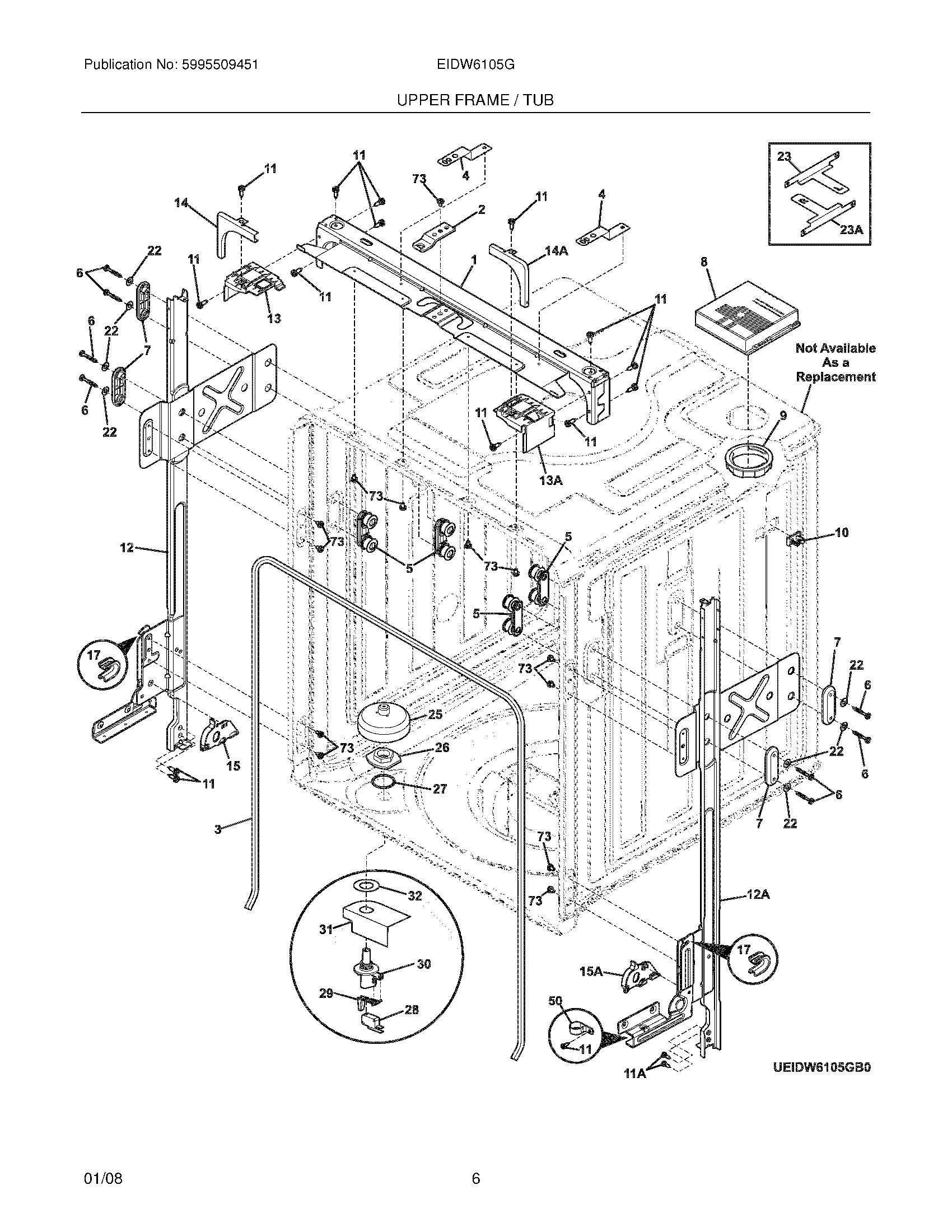

07 - UPPER FRAME/TUB
- 01 - COVER
- 03 - CONTROL PANEL
- 05 - DOOR
- 07 - UPPER FRAME/TUB
- 09 - MOTOR & PUMP
- 11 - LOWER FRAME
- 13 - RACKS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 7154500701 | Brace,frame ,top | 154500701 | $0.00 | ||
| 2 | 7154511401 | Strike,door latch | 154511401 | $0.00 | ||
| 3 | 7154513401 | Gasket,tub | 154749401 | $0.00 | ||
| 4 | 7154657901 | Clip,cabinet mtg. ,top mount ,(2) | 154657901 | $0.00 | ||
| NI | 7154657201 | SCREW,CABINET CLIP,(2) | 154657201 | $9.20 | ||
| 5 | 7154510702 | Roller Assembly,tub ,(4) ,w/gasket | $0.00 | |||
| 6 | 7154572801 | SCREW | 154539801 | $13.05 | ||
| 7 | 7154510601 | Plate,retainer ,outer ,(2) ,tub roller | $0.00 | |||
| 8 | 7154688501 | Vent Assembly,upper | 154773401 | $0.00 | ||
| NI | 7154691601 | COVER,CONNECTOR,VENT ASSY | 154691601 | $13.05 | ||
| 9 | 7154622601 | BEZEL,VENT ASSY,UPPER | 154622601 | $21.05 | ||
| 10 | 7154633501 | Clip,wiring harness | 154633501 | $0.00 | ||
| 11 | 7154518301 | Screw,6 lobe recess ,No.8-18 | 154518301 | $0.00 | ||
| 11A | 7154200701 | SCREW | 154200701 | $13.80 | ||
| 12 | 7154612901 | Leg and Hinge Assembly,left hand ,front | 154774001 | $0.00 | ||
| 12A | 7154613001 | Leg and Hinge Assembly,right hand ,front | 154774101 | $0.00 | ||
| 13 | 7154654401 | Bracket,cabinet clip ,LH | 154654401 | $0.00 | ||
| 13A | 7154654501 | Bracket,cabinet clip ,RH | 154654501 | $0.00 | ||
| 14 | 7154502901 | Trim,corner ,LH | 154502901 | $0.00 | ||
| 14A | 7154502001 | Trim,corner ,RH | 154502001 | $0.00 | ||
| 15 | 7154656801 | Cover,hinge arm ,LH | 154656801 | $0.00 | ||
| 15A | 7154656901 | Cover,hinge arm ,RH | 154656901 | $0.00 | ||
| 17 | 7154671501 | Bushing,hinge arm cable ,(2) | 154671501 | $0.00 | ||
| 22 | 75300809968 | WASHER | 5300809968 | $43.55 | ||
| 23 | 7154654601 | CLIP,CABINET MTG,LH | 154654601 | $52.25 | ||
| 23A | 7154654701 | CLIP,CABINET MTG,RH | 154654701 | $47.05 | ||
| 25 | 7154506702 | SWITCH ASSEMBLY,REED,FLOAT,WAT | 154763901 | $49.35 | ||
| 26 | 7154506902 | NUT,FLOAT SWITCH | 154506902 | $0.00 | ||
| 27 | 7154677201 | GASKET,FLOAT SWITCH | 154677201 | $8.70 | ||
| 28 | 7154507001 | SWITCH,FLOAT | 154860901 | $103.80 | ||
| 29 | 7154517001 | SWITCH ASSEMBLY,REED,FLOAT,WAT | 154763901 | $49.35 | ||
| 30 | 7154506601 | SWITCH ASSEMBLY,REED,FLOAT,WAT | 154763901 | $49.35 | ||
| 31 | 7154657101 | Shield,float bracket | 154657101 | $0.00 | ||
| 32 | 7154506801 | WASHER,FLOAT SWITCH | 154506801 | $2.80 | ||
| 50 | 7154690101 | CLAMP,WIRING | 154690101 | $15.25 | ||
| 73 | 7154518401 | Screw,6 lobe recess ,No.8-32 | 154518401 | $0.00 | ||
| NI | 7154627701 | SWITCH,FLOAT | 154860901 | $103.80 | ||
| NI | 7154662101 | CABINET SEAL KIT | 154662101 | $76.20 | ||
| NI | 7154623602 | Insulation,blanket | 154623602 | $0.00 | ||
| NI | 7154679701 | Clip,insulation ,(2) | 154679701 | $0.00 |
*The price can change whitout warning
