Brand: Electrolux

Model: EW23BC70IS1 - REFRIGERATOR

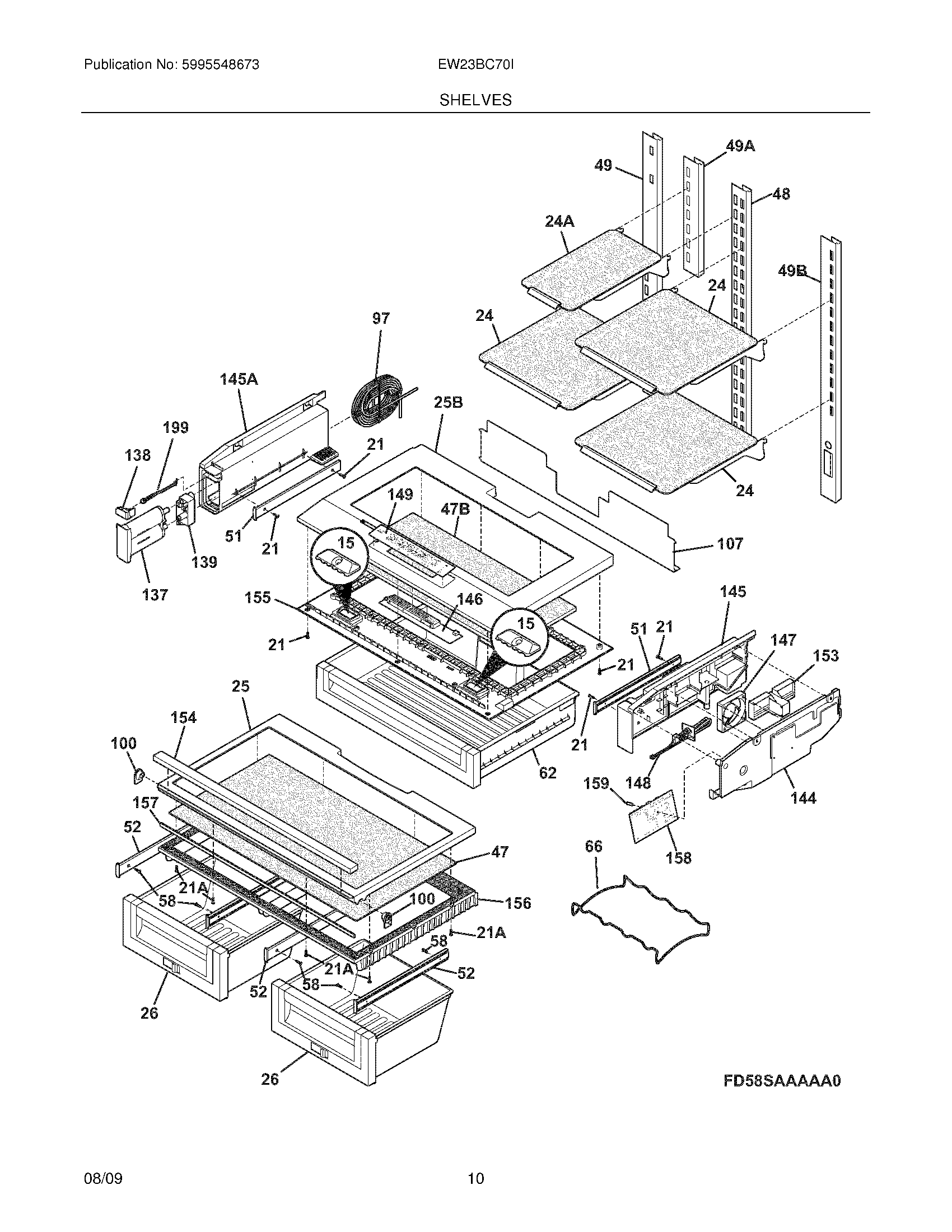

09 - SHELVES

EW23BC70IS1
Plan number Part Number Description Replacement Price
15 7241891101 LIGHT, LED 241891106   $89.25
21 7241953902 SCREW 8 18 X .380 241953902   $17.40
21A 7241953901 SCREW,CONTROL MTG 5304453707   $15.25
24 7241839902 SHELF-GLASS,FORMED 241839902   $405.65
NI 7241809203 · Trim-shelf,hand grip   $0.00
24A 7241839904 SHELF GLASS FORMED 241839904   $340.35
24A 7241809204 · Trim-shelf,hand grip   $0.00
25 7241802201 FRAME-CRISPER COVER,UPPER 241802205   $121.90
25B 7241803301 FRAME-DELI COVER,UPPER 241803303   $214.10
25B 7241862501 HARNESS WIRING PTD MAIN W/LED 241862501   $48.65
25B 7241862601 HARNESS WIRING PTD W/LED 241862601   $116.85
26 7241772802 CRISPER PAN 241772808   $284.50
47 7241768802 GLASS CRISPER FRAME 241768802   $74.05
47B 7241967401 GLASS 2 PANE INSULATD 241967401   $230.80
47B 75304469950 SEALANT,WH RTV SILICONE 5304469950   $104.50
48 7241774201 Channel-shelf mtg,center 241774201   $0.00
49 7241773801 Channel-shelf mtg,side ,(2) ,LH 241773801   $0.00
49A 7241865701 CHANNEL SHELF MTG CENTER ICE 241865701   $26.85
49B 7241774301 Channel-shelf mtg,side ,RH 241774301   $0.00
51 7241816101 SLIDE,DELI 241816101   $156.05
52 7241769002 SLIDE CRISPER COVER 241769002   $122.65
58 7241941202 SCREW 8 18 X 3/8 241941202   $14.50
62 7241827201 PAN-DELI 241827206   $267.80
66 7241748901 RACK,WINE 241748901   $79.85
97 7241821202 Water Tank 241821204   $0.00
100 7241768601 SUPPORT,CRISPER COVER 241768601   $19.60
101 7218493101 SCREW 218493101   $13.80
107 7241925901 Cover-water tank 241925901   $0.00
137 7241932301 ELUX H20 FILTER FRENCH-DR REFR EWF01C   $71.99
137 7240526901 O-ring,wtr filter base   $0.00
138 7241885901 BUTTON,FILTER RELEASE 241885901   $29.05
139 7240396002 Base-water filter 240396002, WG03L02327   $0.00
139 7241858401 SCREW 6 X 1/2 HILO 241858401   $13.80
144 7241803901 COVER DELI AIR CONTROL 241803901   $152.40
145 7241803801 HOUSING-DELI AIR CONTROL 241803803   $133.55
145 7241788701 SUPPORT,RAIL,CD 242058709   $92.15
146 7241958401 CONTROL ELECTRONIC PTD 241958401   $279.40
146 7241822602 HARNESS-POWER PTD 5304521780   $22.50
147 7241825701 Fan Assembly,motor ,with blade 241825701   $0.00
147 7241936201 DAMPER RUBBER PTD FAN 241936201   $58.80
148 7241782001 HEATER PTD 115 V 241782001   $199.55
148 7240451503 SCREW,IND HEX WSHR HD,8-32 X 240451503   $0.00
149 7242025901 OVERLAY ELECTRONIC MEMBRANE 242025901   $163.30
153 7241775301 MOTOR-DAMPER 241775301   $216.25
153 7241835402 HARNESS WIRE 241835402   $23.95
154 7241879901 TRIM-CRISPER COVER 241879902   $37.75
155 7241803401 FRAME-DELI COVER,LOWER 241803403   $151.70
156 7241872002 FRAME-CRISPER COVER,LOWER 241872006   $122.65
157 7241872201 BEAM CRISPER COVER 241872201   $51.55
158 7241955002 Board-main power,PTD 241955002   $0.00
159 7241815401 CAP PCBA HOLD DOWN 241815401   $6.55
199 7240397501 ROD 240397501   $58.80
199 7240398401 SPRING FILTER RELEASE ROD 240398401   $56.60
NI 7241615476 Energy Guide   $0.00
*The price can change whitout warning
