Brand: Electrolux

Model: EW23BC70IS1 - REFRIGERATOR

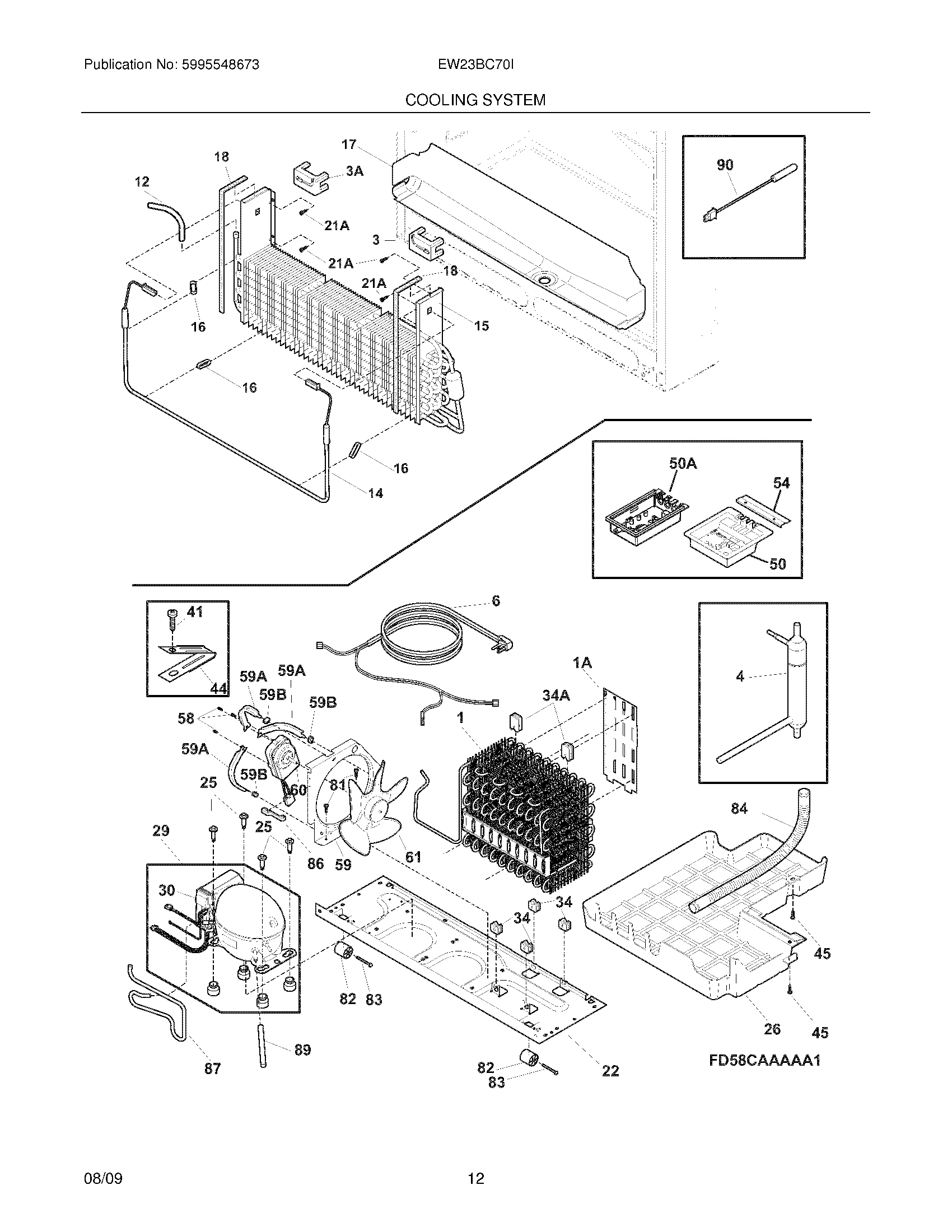

11 - COOLING SYSTEM

EW23BC70IS1
Plan number Part Number Description Replacement Price
1 7241862901 CONDENSER 241862903   $134.25
1A 7241987301 DEFLECTOR AIR CONDENSER 241987301   $27.60
3 7241838401 BLOCK EVAP COIL STYROFOAM INS 241838401   $19.60
3A 7241838402 BLOCK EVAP COIL STYROFOAM INS 241838402   $20.35
4 7241863101 Drier-filter,w/process tube 5303305677, 60041     Call to order
6 7241516901 POWER CORD 241516904   $37.00
NI 7241994801 Harness-wiring,machine compt 241994801   $0.00
NI 7242015701 Harness-wiring,main   $0.00
12 7242036701 VALVE EXPANSION PRESSURE REG 242036701   $18.15
14 75303918410 DEFROST ELEMENT KIT 28" 5303918410   $130.65
15 75303918406 EVAPORATOR KIT 5303918406   $393.35
16 75308000110 STRAP-EVAP/HEATER 5308000110   $63.85
17 7241791201 TROUGH DRAIN 241791201   $111.75
18 7241860101 GASKET CLOSED CELL 241860101   $18.15
21A 7218362501 SCREW,HEX WASHER HEAD,8-18AB X 218362501   $12.35
22 7241602112 Base-compressor,w/rollers   $0.00
NI 7218252201 SCREW 218252201   $14.50
25 7240491503 Screw-compressor mtg,1/4-28 x 1.16 ,(4) 240491503   $0.00
26 7241920602 PAN-DEFROST,26 241920608   $141.45
29 75303918437 COMPRESSOR KIT 5303918437   $783.75
30 7241577505 INVERTER 241577505   $272.85
34 7241929901 GROMMET COND MTG (4) 241929901   $9.45
34A 7241929902 GROMMET COND MTG (4) 241929902   $9.45
41 7240555002 SCREW-#8-32 X 3/8 240555002   $13.80
44 7215174700 CLAMP-WIRING HARNESS 5303001199   $67.50
45 75304455650 SCREW 5304455650   $14.50
50 7241996301 BOARD,SWITCH,TERMINAL 5303918507   $535.55
50A 7241891601 POWER BOARD LED 241891601   $271.40
50A 7241852501 CLIP,WIRING HARNESS 241852501   $15.95
54 7241532401 CHANNEL 241532401   $31.20
58 7240433203 SCREW 8 18 X .380 241953902   $17.40
59 7240315502 SHROUD-CONDENSER 241946105   $26.85
NI 7240346701 TAPE-FOAM SEAL, SHROUD 240346701   $30.50
59A 7240346501 BRACKET-SUPPORT 240346501   $22.50
59B 7240346601 GROMMET-BRACKET (3) 240346601   $20.35
60 7241584301 MOTOR,FAN 297279500   $141.50
61 7241639501 FAN BLADE 241639502   $21.05
81 7240359403 SCREW-FAN,SHROUD,(2) 240359403   $3.65
82 75304418225 ROLLER,COMPRESSOR BASE,REAR 5304418225   $49.35
83 75304455655 RIVET 5304455655   $7.25
84 7241830901 DRAIN HOSE 241830904   $23.95
86 7240409302 SPACER-COND TUBE, BLACK 240409302   $64.60
87 7241846302 TUBE,CONNECTOR SUCCION 241871501   $45.00
89 7215346900 TUBE 215346900   $19.60
90 7240597203 SENSOR 240597203   $55.15
NI 73205266 EDGE PROTECTOR WIRING HARNESS 3205266   $82.00
NI 7218515403 CLIP,GRILLE 218515403   $29.75
NI 7241947701 SPACER HEAT EXCHANGER 241947701   $95.80
NI 7241994701 Harness-wiring,jumper   $0.00
NI 75303918408 Heat Exchanger,suction line 5303918408   $0.00
NI 75303918409 Heat Exchanger,icemaker 5303918409   $0.00
NI 75303918416 THERMISTER KIT,T-3 SUCTION 5303918416   $100.15
NI 75303918428 Hot Tube Repair Kit,service 5303918428   $0.00
NI 7241986401 VALVE EXPANSION PRESSURE REG 242036701   $18.15
*The price can change whitout warning
