Brand: Electrolux

Model: EW23BC70IS1 - REFRIGERATOR

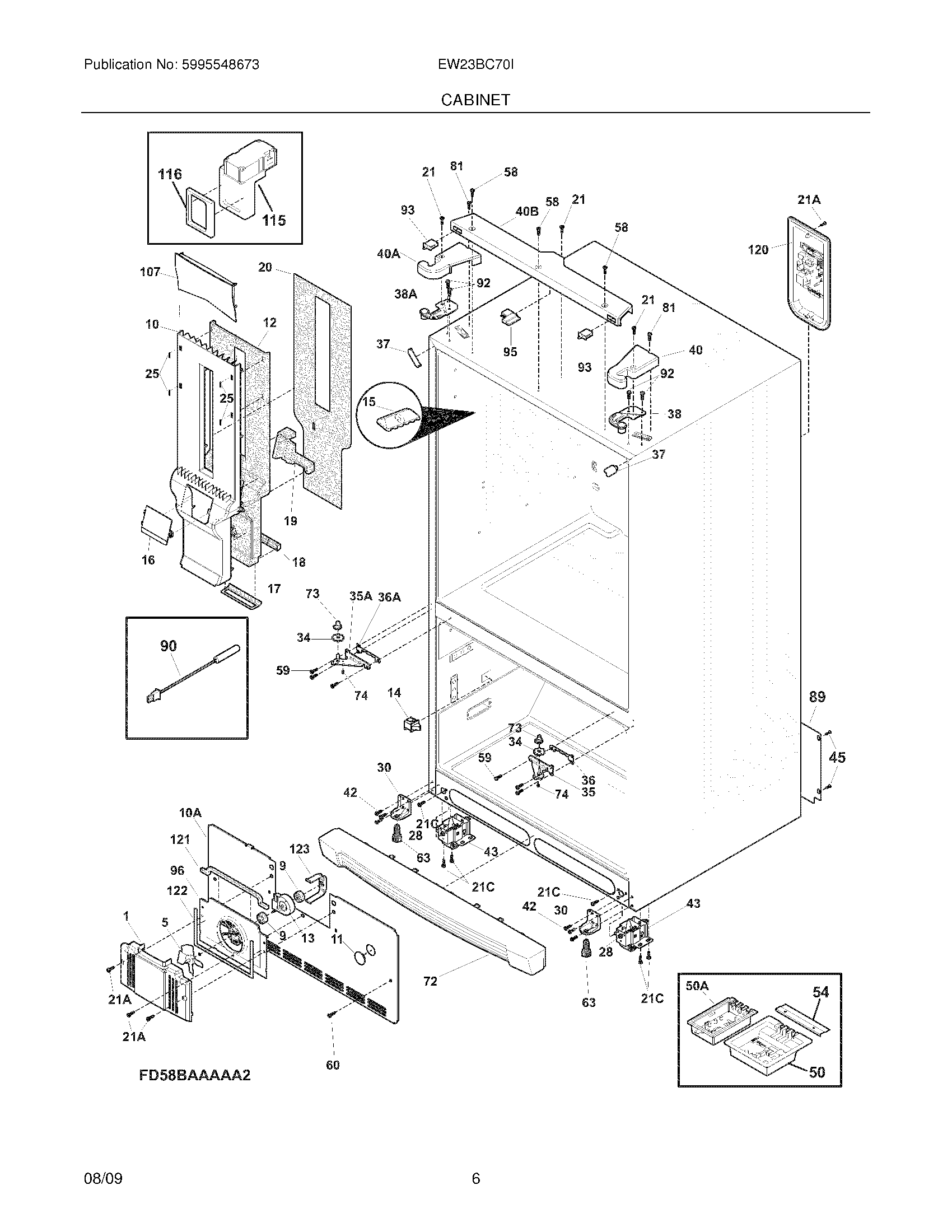

07 - CABINET

EW23BC70IS1
Plan number Part Number Description Replacement Price
1 7241859701 COVER FAN 241859701   $53.70
5 75308000010 FAN PLASTIC EVAP. 5308000010   $58.80
9 7241518301 BUSHING,MOTOR MOUNTING 241518301   $68.20
10 7241860001 COVER AIR DUCT 241860001   $69.85
NI 7242004801 INSULATION-AIR DUCT,FOAM STRIP 242004802   $5.80
10A 7241860401 Cover-evap coil,lower 241860401   $0.00
10A 7241860104 GASKET COIL COVER 241860104   $30.50
10A 7241860105 GASKET COIL COVER 241860105   $17.40
11 75303208309 PLUG-HOLE 5303208309   $43.55
12 7241859901 FOAM-AIR SUPPLY 242073901   $63.15
13 7241509402 MOTOR FAN OF EVAPORATOR 241509402   $173.45
NI 7215474201 WASHER NYLON EVAP FAN SHAFT 215474201   $18.85
14 7240505801 Switch,light/lamp 240505801, WG03F03557   $0.00
15 7241891101 LIGHT, LED 241891106   $89.25
16 7241860501 COVER,DAMPER 241860502   $16.65
NI 7241859801 COVER EPS DAMPER 241859801   $9.45
NI 7241953904 SCREW 8 18 241953904   $10.90
17 7241928201 GASKET,AIR DUCT 241928201   $18.15
18 7241928101 DUCT AIR 241928101   $8.70
19 7241871901 SUPPORT EPS DAMPER 241871901   $18.85
20 7241922901 Cover-air duct,rear 241922901   $0.00
21 7241732101 SCREW 241732101   $15.95
21A 7241953901 SCREW,CONTROL MTG 5304453707   $15.25
21C 7218252201 SCREW 218252201   $14.50
25 7241949501 Clip,air vent   $0.00
28 7240335502 ROLLER ASSY,FRONT (2) 5304499445   $23.95
30 7241778701 BRACKET ANTI TIP 241778701   $25.40
34 7241868301 WASHER 241868301   $0.00
35 7241763001 LOWER HINGE,ZINC,RIGHT 241767211   $98.00
35A 7241763002 HINGE-LOWER,ZINC,LH 241767212   $99.45
36 7241868201 SPACER DOOR LOWER RH 241868201   $50.80
36A 7241868202 SPACER DOOR LOWER LH 241868202   $22.50
37 7240337612 Trim-cabinet corner,nickeloid ,(2) 240337614   $0.00
38 7241761301 BRACKET,UPPER HINGE,RIGHT 241761301   $67.50
38A 7241761302 BRACKET,UPPER HINGE,LEFT 241761302   $66.05
40 7241778001 Cover-upper hinge,grey ,RH 241778001   $0.00
40A 7241778002 Cover-upper hinge,grey ,LH 241778002   $0.00
40B 7241862401 COVER-UPPER HINGE,GREY,CENTER 241862405   $107.40
40B 7242015901 HARNESS HINGE JUMPER HINGE JU 242015901   $150.25
42 7240578902 SCREW-HINGE 240578902   $14.50
43 7240335006 ROLLER ASSY,FRONT (2) 5304499445   $23.95
45 7241500303 SCREW,HEX WASHER HEAD,8-18AB X 241500303   $4.35
50 7241996301 BOARD,SWITCH,TERMINAL 5303918507   $535.55
50A 7241891601 POWER BOARD LED 241891601   $271.40
50A 7241852501 CLIP,WIRING HARNESS 241852501   $15.95
54 7241532401 CHANNEL 241532401   $31.20
58 7241853201 Screw,No.8-18 x 1/2 241853201   $0.00
59 7240442708 Screw-No.10-32 X 3/4,white   $0.00
60 75304455650 SCREW 5304455650   $14.50
63 7216396900 Screw,leveling foot ,plastic ,adjustable 216396900, WG03F04389   $0.00
72 7241930301 KICKPLATE 241930301   $309.15
73 7241868601 DOOR BUSHING KIT 5303918453   $50.80
74 7218755401 SCREW SET 218755401   $23.95
81 7242025601 SCREW HEX HEAD 10 32 X 3/8 242025601   $15.25
89 7241733905 COVER 241733902   $81.30
90 7240597203 SENSOR 240597203   $55.15
92 7241710601 SCREW 241710601   $13.80
93 7241835503 LIGHT SWITCH,GREY 241835505   $65.30
95 7241530501 SENSOR,HUMIDITY 241530501   $124.10
96 7241860601 COVER,EVAPORATOR 241860601   $135.00
107 7241963101 DUCT-AIR 241963102   $34.85
115 7241518501 DAMPER 5303918899   $77.30
116 7241518601 SEAL,DAMPER 241518601   $9.45
120 7241956701 ICEMAKER UPGRADE KIT 5303918495   $715.45
121 7241860103 GASKET EVAP UPPER 241860103   $3.65
122 7241860102 GASKET EVAP BOTTOM 241860102   $3.65
123 7241517701 CLIP,EVAP FAN MOTOR 242135301   $8.00
NI 7242006901 DUCT-FRZ AIR 242006903   $60.95
NI 7241969001 CAP SCREW 241969001   $15.95
*The price can change whitout warning
