Brand: Whirlpool
Model: KBFN502EBS02 - REFRIGERATOR, FRENCH DOOR, BUILT-IN, BOTTOM MOUNT

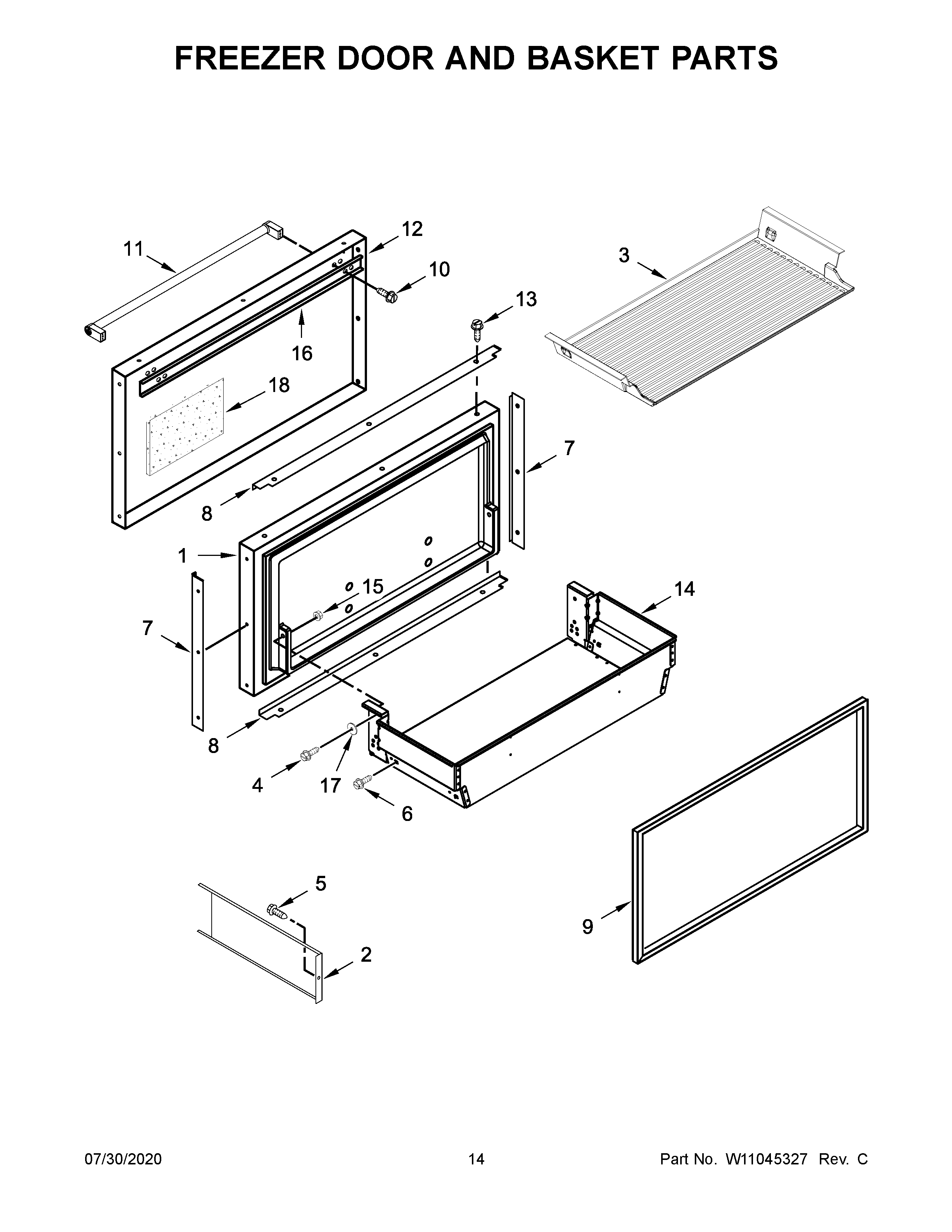

08 - FREEZER DOOR AND BASKET PARTS
- 01 - COVER SHEET
- 02 - CABINET PARTS
- 03 - CABINET TRIM PARTS
- 04 - REFRIGERATOR LINER PARTS
- 05 - FREEZER LINER AND ICEMAKER PARTS
- 06 - SHELF PARTS
- 07 - REFRIGERATOR DOOR PARTS
- 08 - FREEZER DOOR AND BASKET PARTS
- 09 - TOP GRILLE AND UNIT COVER PARTS
- 10 - UPPER UNIT PARTS
- 11 - LOWER UNIT AND TUBE PARTS
- 12 - OPTIONAL PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10570168 | DOOR-FIP | W10782356 | $869.11 | ||
| 2 | W10600711 | DIVIDER | $107.97 | |||
| 3 | W10665413 | MAT | $209.94 | |||
| 4 | W10761334 | SCREW | $9.56 | |||
| 5 | W10135792 | SCREW | WP488234 | $6.30 | ||
| 6 | W10109030 | SCREW | $12.84 | |||
| 7 | W10600723 | SPACER | $128.03 | |||
| 8 | W10600721 | SPACER | $215.92 | |||
| 9 | W10600725 | GASKET-FIP | W10803138 | $239.32 | ||
| 10 | 308544 | SCREW | WP308544 | $6.32 | ||
| 11 | W10541591 | HANDLE | W10783283 | $151.56 | ||
| 12 | W10752573 | DOOR-SKIN | W10799258 | $469.81 | ||
| 12A | W10541580 | DOOR SKIN | W10799261 | $551.13 | ||
| 13 | 8281252 | SCREW | W10851443 | $6.65 | ||
| 13A | 8281250 | SCREW | WP8281250 | $8.08 | ||
| 14 | W10770921 | GRILLE | $307.52 | |||
| 15 | W10771111 | NUT | $15.43 | |||
| 16 | W10127710 | PLATE | $18.79 | |||
| 17 | W10001190 | WASHER | $7.07 | |||
| 18 | 2309219 | FILLER | $209.76 | |||
| 18 | N/P | FILLER (NOT SERVICED-INCLUDED WITH SKIN) | $0.00 |
*The price can change whitout warning
