Brand: Whirlpool
Model: KBFN502EBS02 - REFRIGERATOR, FRENCH DOOR, BUILT-IN, BOTTOM MOUNT

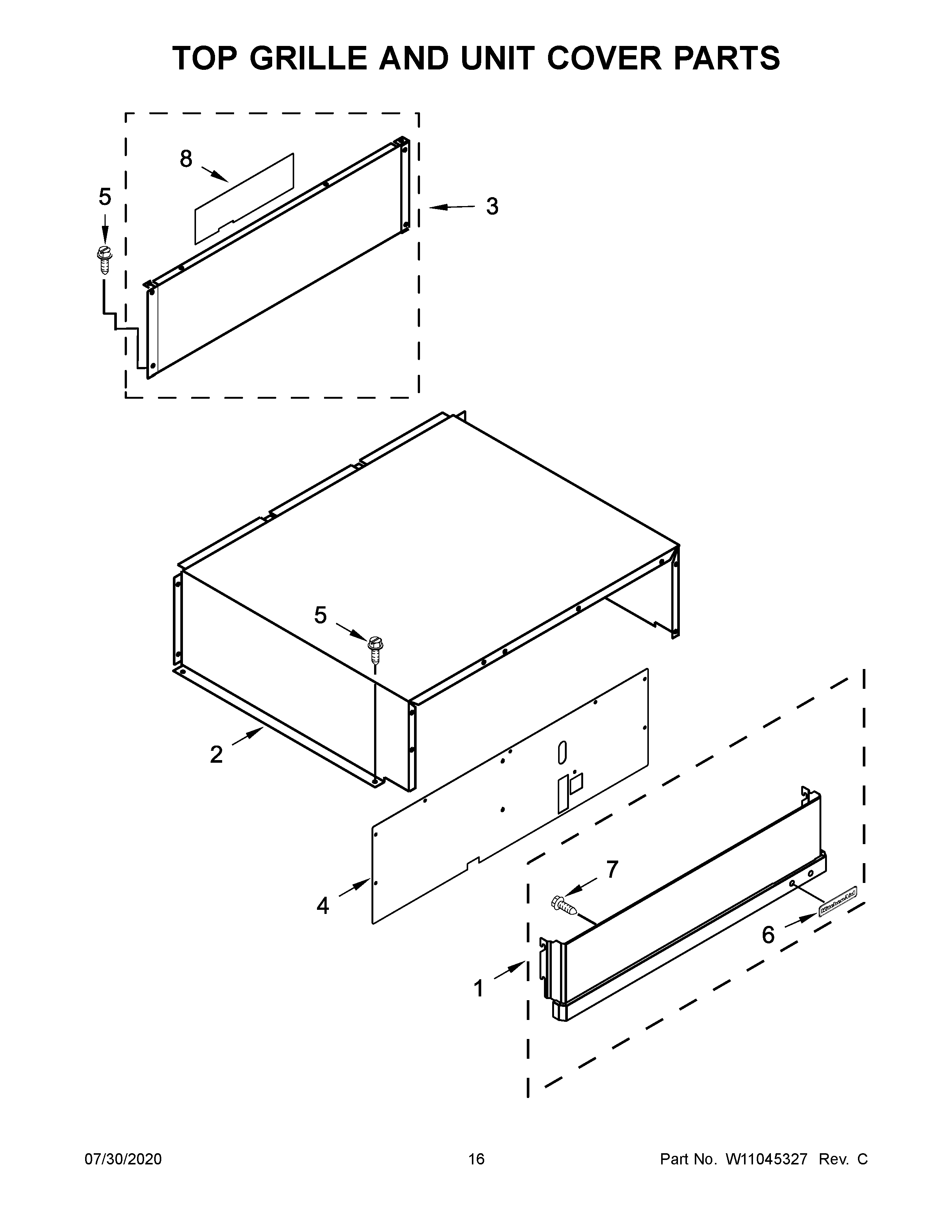

09 - TOP GRILLE AND UNIT COVER PARTS
- 01 - COVER SHEET
- 02 - CABINET PARTS
- 03 - CABINET TRIM PARTS
- 04 - REFRIGERATOR LINER PARTS
- 05 - FREEZER LINER AND ICEMAKER PARTS
- 06 - SHELF PARTS
- 07 - REFRIGERATOR DOOR PARTS
- 08 - FREEZER DOOR AND BASKET PARTS
- 09 - TOP GRILLE AND UNIT COVER PARTS
- 10 - UPPER UNIT PARTS
- 11 - LOWER UNIT AND TUBE PARTS
- 12 - OPTIONAL PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10752261 | GRILL-UPPR | W11449304 | $287.76 | ||
| 1A | W10645404 | GRILL-UPPER | W11104746 | $313.67 | ||
| 2 | W10545068 | COVER-UNIT | $97.30 | |||
| 3 | 2256466 | COVER-UNIT | $247.07 | |||
| 4 | W10694113 | COVER-UNIT | $78.43 | |||
| 5 | 1157158 | SCREW | WP489069 | $6.32 | ||
| 6 | W10518672 | NAMEPLATE | W10839793 | $53.13 | ||
| 7 | 489399 | SCREW | WP489399 | $5.68 | ||
| 6 | W10518672 | NAMEPLATE | W10839793 | $53.13 | ||
| 8 | W11244166 | INSULATION | $56.76 |
*The price can change whitout warning
