Brand: Whirlpool
Model: KBFN502EBS02 - REFRIGERATOR, FRENCH DOOR, BUILT-IN, BOTTOM MOUNT

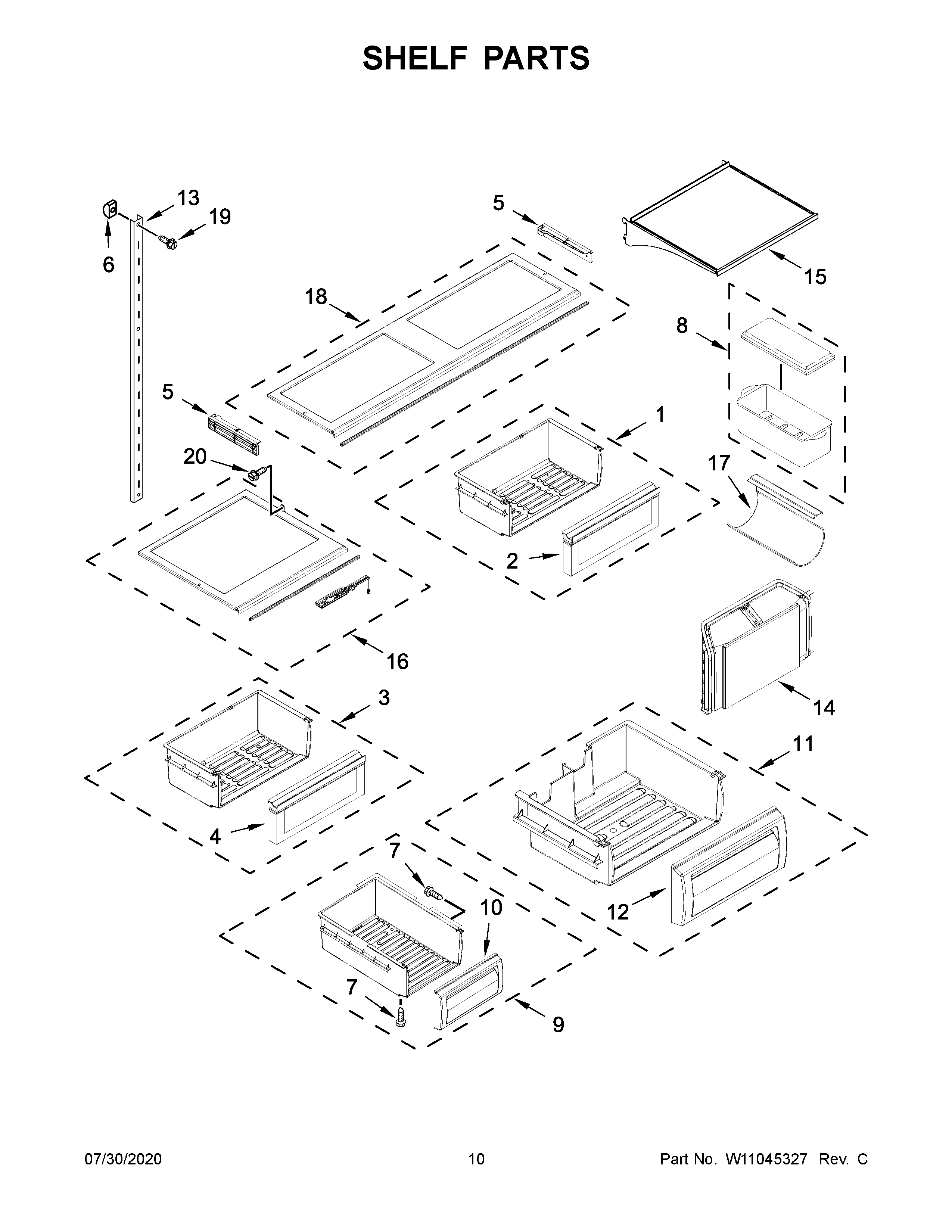

06 - SHELF PARTS
- 01 - COVER SHEET
- 02 - CABINET PARTS
- 03 - CABINET TRIM PARTS
- 04 - REFRIGERATOR LINER PARTS
- 05 - FREEZER LINER AND ICEMAKER PARTS
- 06 - SHELF PARTS
- 07 - REFRIGERATOR DOOR PARTS
- 08 - FREEZER DOOR AND BASKET PARTS
- 09 - TOP GRILLE AND UNIT COVER PARTS
- 10 - UPPER UNIT PARTS
- 11 - LOWER UNIT AND TUBE PARTS
- 12 - OPTIONAL PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10529578 | PAN-CRISPR | $322.34 | |||
| 2 | W10529563 | FRONT-PAN | $275.56 | |||
| 3 | W10529585 | PAN-CRISPR | $287.91 | |||
| 4 | W10529567 | FRONT-PAN | $165.56 | |||
| 5 | W10569854 | SUPPORT | $63.92 | |||
| 5A | W10569853 | SUPPORT | $63.92 | |||
| 6 | 520965 | SUPPORT | $22.85 | |||
| 7 | 488886 | SCREW | WP488787 | $9.73 | ||
| 8 | 2221071 | EGG-CONTNR | WP2221071A | $18.89 | ||
| 9 | W10600690 | PAN-ICE | $217.92 | |||
| 10 | W10600687 | FRONT-PAN | $59.91 | |||
| 11 | W10600700 | PAN-FRZR | $256.23 | |||
| 12 | W10600696 | FRONT-PAN | $59.91 | |||
| 13 | W10633565 | LADDER | $79.59 | |||
| 13A | W10633566 | LADDER | $82.52 | |||
| 14 | W10593207 | PRO PRSERV | $31.48 | |||
| 15 | W10568583 | SHELF-GLAS | WPW10568583 | $306.73 | ||
| 16 | W10570403 | SHELF-GLAS | WPW10570403 | $238.48 | ||
| 16A | W10570404 | SHELF-GLAS | WPW10570404 | $253.19 | ||
| 17 | W10701859 | RACK-WINE | $17.53 | |||
| 18 | W10578274 | SHELF-GLAS | WPW10578274 | $265.56 | ||
| 19 | W10808291 | SCREW | $10.69 | |||
| 20 | 8533950 | SCREW | $8.79 | |||
| 14 | W10826105 | PRESERVER | W11462816 | $16.79 |
*The price can change whitout warning
