Brand: Maytag
Model: RCC-3 (BOM: P7340801M) - GAS RANGE

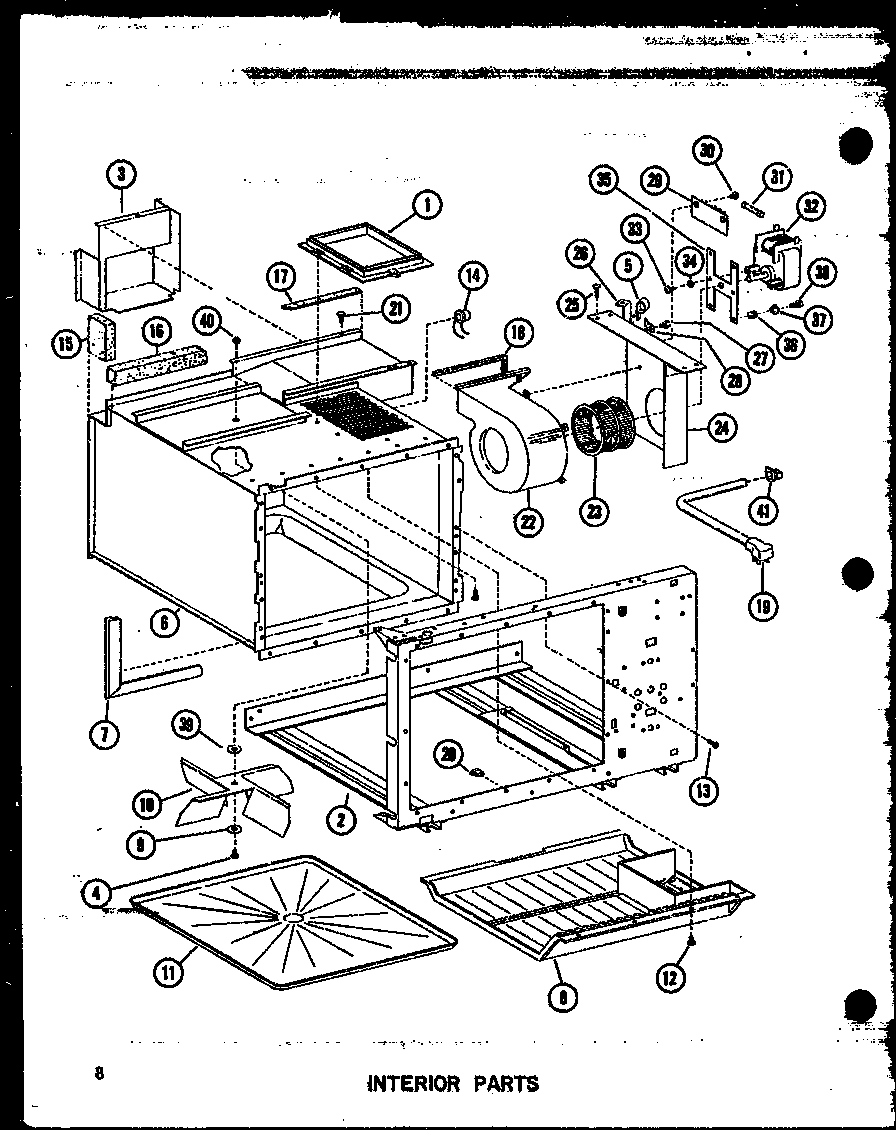

04 - INTERIOR PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | C8714801 | AIR DUCT | $0.00 | |||
| 2 | D7287902 | YOKE, WELDMENT | $0.00 | |||
| 3 | C8706801 | DUCT WLDMT | $0.00 | |||
| 4 | A3214902 | SHOULDER SCREW | $0.00 | |||
| 5 | M0102314 | CLAMP | $0.00 | |||
| 6 | D7232202 | OVEN WLD | $0.00 | |||
| 7 | D7174701 | GASKET OVEN CAVITY | $0.00 | |||
| 8 | D7106201 | GREASE SHIELD | $0.00 | |||
| 9 | A3214801 | BEARING | $0.00 | |||
| 10 | C8720801 | xFAN BLADE-STIRRER | $0.00 | |||
| 11 | D7089602 | OVEN TRAY KIT | $0.00 | |||
| 12 | M0230015 | SCREW | $0.00 | |||
| 13 | M0230015 | SCREW | $0.00 | |||
| 14 | M0370403 | THERMAL PROT | $0.00 | |||
| 15 | B5695301 | GASKET | $0.00 | |||
| 16 | B5695302 | GASKET, AIR SEALING | $0.00 | |||
| 17 | A3030330 | GASKET,PER FT | $0.00 | |||
| 18 | A3030318 | GASKET (1=1FT.) | $0.00 | |||
| 19 | B5703504 | CORD POWER | $0.00 | |||
| 20 | M0110501 | CLIP K | $0.00 | |||
| 20 | M0104101 | CLIP | WPM0104106 | $5.68 | ||
| 21 | M0230015 | SCREW | $0.00 | |||
| 22 | A4539601 | POP RIVET | $0.00 | |||
| 22 | D7171301 | SCROLL | $0.00 | |||
| 23 | C8704001 | BLOWER WHEEL | $0.00 | |||
| 24 | C3687701 | END PLATE, WELDMENT | $0.00 | |||
| 25 | M0230015 | SCREW | $0.00 | |||
| 26 | B5723101 | BRACE-SCROLL | $0.00 | |||
| 27 | M0218116 | SCREW | $0.00 | |||
| 28 | M0320901 | TERMINAL | $0.00 | |||
| 29 | B5735601 | FUSE BOARD | $0.00 | |||
| 30 | M0230015 | SCREW | $0.00 | |||
| 31 | M0850507 | FUSE-20A | $0.00 | |||
| 32 | B5736101 | MOTOR, BLOWER | $0.00 | |||
| 33 | M0202642 | SCREW | $0.00 | |||
| 34 | M0272605 | WASHER | $0.00 | |||
| 35 | B5744001 | MOTOR MOUNT-BL | $0.00 | |||
| 36 | YA0381501 | CLIP, WATERLINE | $0.00 | |||
| 37 | A0381401 | EYELET K | $0.00 | |||
| 38 | M0216531 | SCREW | $0.00 | |||
| 39 | B5704203 | BUSHING-STIRRER MT | $0.00 | |||
| 40 | M0282005 | NUT | $6.96 | |||
| 41 | M0370004 | STRAIN RELIEF | $0.00 |
*The price can change whitout warning
