Brand: Maytag
Model: RCC-3 (BOM: P7340801M) - GAS RANGE

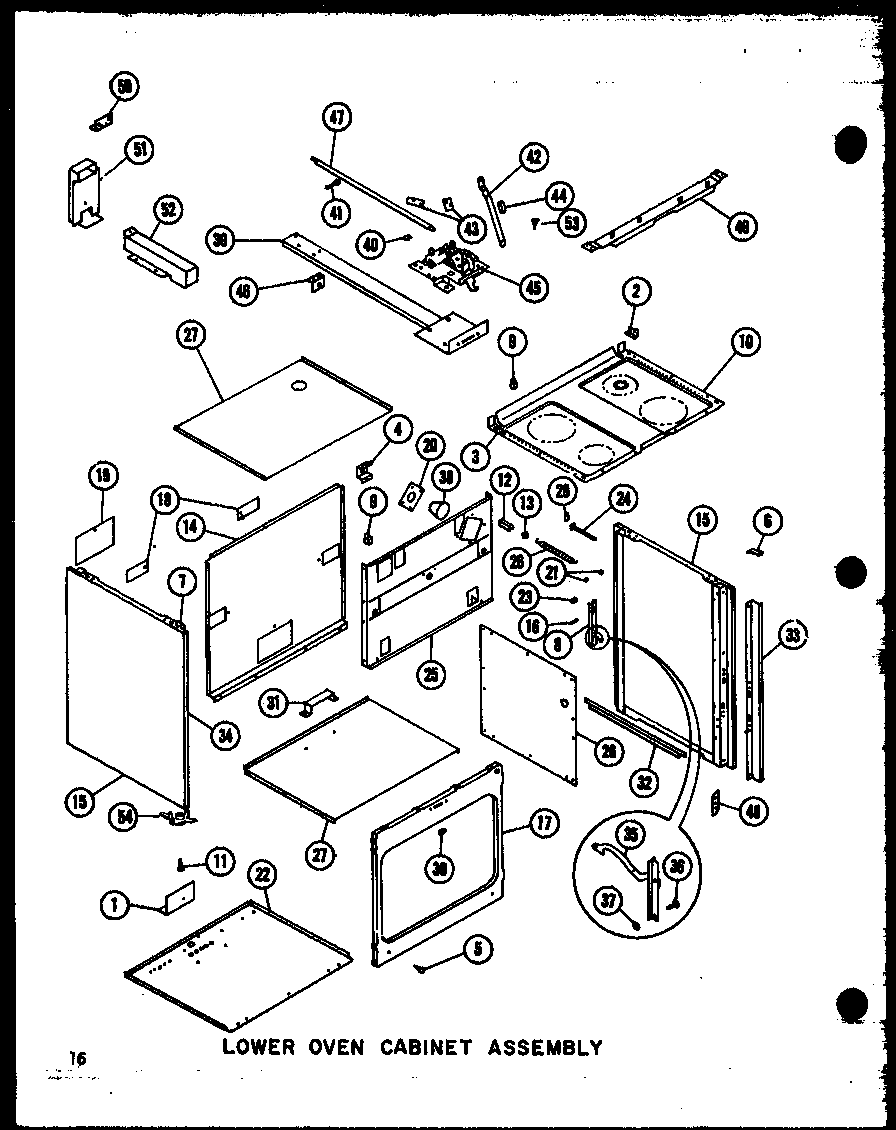

06 - LOWER OVEN CABINET ASSY
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | R0178750 | ANGLE, TERMINAL BLOCK | $0.00 | |||
| 2 | R0179014 | BRACKET | $0.00 | |||
| 3 | R0179015 | BRACKET | $0.00 | |||
| 4 | R0191040 | BRACKET-LIGHT SOCKET | $0.00 | |||
| 5 | R0182043 | BUMPER-DRAWER | $0.00 | |||
| 6 | R0178751 | TRIM, CAP, R.H. | $0.00 | |||
| 7 | R0178752 | TRIM, CAP, L.H. | $0.00 | |||
| 8 | R0179016 | CHANNEL, HINGE ADJUSTMENT | $0.00 | |||
| 9 | R0191041 | CLIP, WIRE CABLE | $0.00 | |||
| 10 | R0178894 | DRIP BAFFLE-AL | $0.00 | |||
| 10 | R0178892 | DRIP BAFFLE-DC | $0.00 | |||
| 10 | R0178895 | DRIP BAFFLE-AV | $0.00 | |||
| 10 | R0178893 | DRIP BAFFLE-G | $0.00 | |||
| 10 | R0178753 | DRIP BAFFLE-W | $0.00 | |||
| 11 | R0183035 | LEG, LEVELING | $0.00 | |||
| 12 | R0178757 | LINK OVEN DOOR SPRING | $0.00 | |||
| 13 | R0189015 | NUT, SQUARE No.10-32 | $0.00 | |||
| 14 | R0178758 | OVEN BACK PANEL | $0.00 | |||
| 15 | R0178906 | SIDE PANEL KIT - GOLD | $0.00 | |||
| 15 | R0178759 | MAIN END-W | $0.00 | |||
| 15 | R0178905 | SIDE PANEL KIT - DARK COPPER | $0.00 | |||
| 15 | R0178908 | MAIN END-AV | $0.00 | |||
| 15 | R0178907 | MAIN END-AL | $0.00 | |||
| 16 | R0191042 | ROLLER PIN | $0.00 | |||
| 17 | R0178763 | FRONT FRAME | $0.00 | |||
| 18 | R0178764 | ACCESS PLATE, SPRING ADJUST. | $0.00 | |||
| 19 | R0178765 | PLATE, ACCESS | $0.00 | |||
| 20 | R0191043 | MTG BRACKET-LIGHT | $0.00 | |||
| 21 | R0183036 | PLUG BUTTON GUIDE | $0.00 | |||
| 22 | R0178766 | RETAINER, INSULATION BOTTOM | $0.00 | |||
| 23 | R0183037 | ROLLER, NYLON | $0.00 | |||
| 24 | R0188019 | SCREW | $0.00 | |||
| 25 | R0178767 | INSULATION RETAINER, BACK | $0.00 | |||
| 26 | R0178768 | SHIELD SLIDE | $0.00 | |||
| 27 | R0178769 | HEAT SHIELD | $0.00 | |||
| 28 | R0178770 | SPRING, OVEN DOOR | $0.00 | |||
| 29 | R0178771 | STOP, SPRING | $0.00 | |||
| 30 | R0190023 | WASHER | $0.00 | |||
| 31 | R0178772 | SUPT-OVEN SHELL | $0.00 | |||
| 32 | R0176007 | TRACK-RH-DRAWER | $0.00 | |||
| 32 | R0176008 | STORAGE DRAWER TRACK LH | $0.00 | |||
| 33 | R0178773 | FRONT TRIM-RH | $0.00 | |||
| 34 | R0178774 | FRONT TRIM-LH | $0.00 | |||
| 35 | R0179017 | HINGE BLADE-RH | $0.00 | |||
| 35 | R0179018 | HINGE BLADE-LH | $0.00 | |||
| 36 | R0191044 | RIVET | $0.00 | |||
| 37 | R0191045 | CLIP, PUSH-ON | $0.00 | |||
| 38 | R0178775 | RETAINER | $0.00 | |||
| 39 | R0178776 | LATCH MTG CHANNEL | $0.00 | |||
| 40 | R0178777 | RETAINER RING | $0.00 | |||
| 41 | R0191046 | COTTER PIN | $0.00 | |||
| 42 | R0179020 | LATCH ARM BLACK | $0.00 | |||
| 43 | R0196021 | INSULATION | $0.00 | |||
| 44 | R0181070 | KNOB-DOOR LATCH | $0.00 | |||
| 45 | R0179021 | LATCH ASSY | $0.00 | |||
| 46 | R0179022 | SUPT-LATCH CHANNEL | $0.00 | |||
| 47 | R0179023 | ROD-LATCH RELEASE | $0.00 | |||
| 48 | R0178778 | SPACER-DRAWER | $0.00 | |||
| 53 | M0230814 | SCREW | $0.00 | |||
| 54 | R0178874 | RETAINER NUT | $0.00 |
*The price can change whitout warning
