Brand: Maytag
Model: RCC-3 (BOM: P7340801M) - GAS RANGE

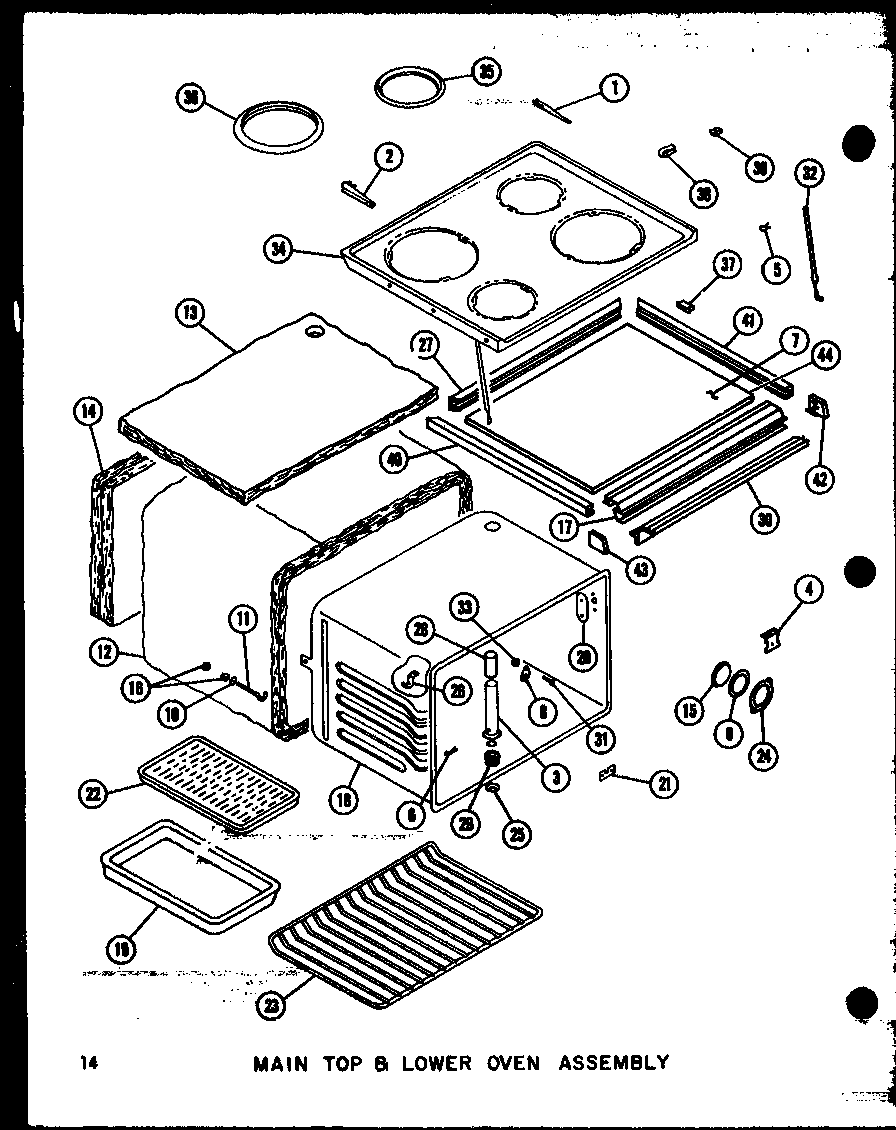

07 - MAIN TOP & LOWER OVEN ASSY
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | R0179010 | BRACKET ASSEMBLY | $0.00 | |||
| 2 | R0179011 | BRACKET ASSEMBLY | $0.00 | |||
| 3 | R0174043 | TUBE, OVEN VENT | $0.00 | |||
| 4 | R0191033 | BRACKET, BROILER ELEMENT | $0.00 | |||
| 5 | R0191034 | PIN, SUPPORT ROD | $0.00 | |||
| 6 | R0191035 | COTTER PIN | $0.00 | |||
| 8 | R0178729 | COVER, ROTISSERIE | $0.00 | |||
| 9 | R0182042 | GASKET-OVEN LENS | $0.00 | |||
| 10 | R0190021 | WASHER | $0.00 | |||
| 11 | R0191036 | HOOK BOLT | $0.00 | |||
| 12 | R0196018 | INSULATION, OVEN WRAP | $0.00 | |||
| 13 | R0196019 | INSULATION,WRAPPER | $0.00 | |||
| 14 | R0196020 | INSULATION,WRAPPER | $0.00 | |||
| 15 | R0183033 | LENS | $0.00 | |||
| 16 | R0189012 | HEX NUT No.10-32 NICKEL | $0.00 | |||
| 18 | R0178731 | OVEN SHELL ASSY | $0.00 | |||
| 19 | R0178732 | PAN-BROILER | 4396923 | $45.91 | ||
| 20 | R0178733 | RETAINER PLATE | $0.00 | |||
| 21 | R0178734 | PLATE | $0.00 | |||
| 22 | R0180035 | PAN-BROILER | 4396923 | $45.91 | ||
| 23 | R0178735 | OVEN RACK | WP314763J | $50.34 | ||
| 24 | R0178736 | RETAINER, OVEN LIGHT LENS | $0.00 | |||
| 25 | R0178737 | RETAINING RING | $0.00 | |||
| 26 | R0179012 | BRACKET, THERMOSTAT BULB | $0.00 | |||
| 28 | R0174045 | SHIELD-VENT TUBE | $0.00 | |||
| 29 | R0183034 | SMOKE ELIMINATOR CATALYST | $0.00 | |||
| 31 | R0187013 | No.10-24 BOLT COVER PLATE | $0.00 | |||
| 32 | R0178739 | SUPPORT, MAINTOP | $0.00 | |||
| 33 | R0189013 | NUT | M0282009 | $12.22 | ||
| 34 | R0178902 | MAIN TOP-G | $0.00 | |||
| 34 | R0178904 | MAIN TOP-AV | $0.00 | |||
| 34 | R0178906 | SIDE PANEL KIT - GOLD | $0.00 | |||
| 34 | R0178903 | MAIN TOP, ALMOND | $0.00 | |||
| 34 | R0178740 | MAIN TOP, WHITE | $0.00 | |||
| 35 | R0179033 | CHROME BOWL 6 | WPW10196406 | $14.48 | ||
| 36 | R0179034 | PAN,COMBINATION 8" | WPW10196405 | $19.59 | ||
| 38 | R0191039 | WIRE CLAMP | $0.00 | |||
| 39 | R0189014 | NUT, TYPE ``U`` | $0.00 |
*The price can change whitout warning
