Brand: Maytag
Model: LSE7804AGL - LAUNDRY SYSTEM

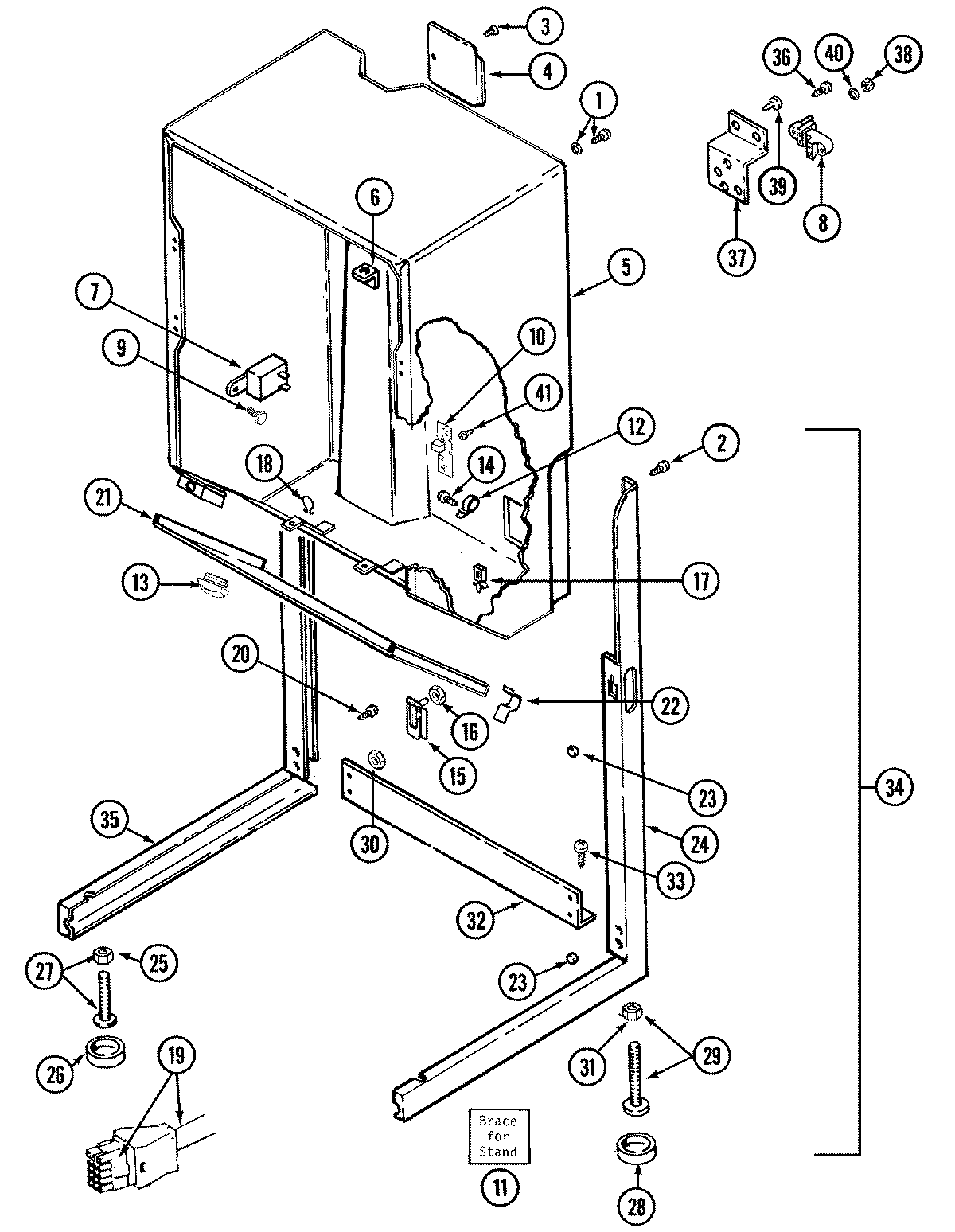

03 - CABINET-DRYER
- 01 - BASE
- 01 - UPPER OVEN PARTS
- 02 - CABINET
- 02 - CABINET
- 03 - CABINET-DRYER
- 03 - REFRIGERATOR SHELF PARTS
- 04 - CLUTCH, BRAKE & BELTS
- 05 - GEARCASE, MOTOR AND PUMP PARTS
- 05 - UNIT, LIT/OPTIONAL
- 06 - FRONT
- 10 - TOP & LID
- 11 - TOP & LID (LSE7804AGM)
- 13 - TUB
- 14 - TUMBLER
- 15 - WIRING INFORMATION-DRYER
- 16 - WIRING INFORMATION-WASHER
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 303846 | SCREW | W10850756 | $6.65 | ||
| 2 | 314663 | SCREW | $0.00 | |||
| 3 | Y313561 | SCREW | WPY313561 | $5.09 | ||
| 4 | 314470 | COVER, TERMINAL | $0.00 | |||
| 5 | 308055L | CABINET (ALM) | $0.00 | |||
| 6 | 312548 | FASTENER-ACCESS PANEL TO CA | $0.00 | |||
| 7 | 305205 | BUZZER | WP694419 | $103.57 | ||
| 8 | 400008 | BLOCK, TERMINAL | $0.00 | |||
| 9 | 211168 | SCREW | WPW10139210 | $5.09 | ||
| 10 | 33001212 | CONTROL ELECT. | WP33001212 | $269.22 | ||
| 11 | 306128 | BRACE FOR STAND-ACCESSORY | $0.00 | |||
| 12 | 315264 | CABLE CLAMP | $0.00 | |||
| 13 | 22001195 | BUMPER (ALM) | $0.00 | |||
| 14 | Y310632 | SCREW | $6.43 | |||
| 15 | 314489 | GUIDE, PIN | $0.00 | |||
| 16 | 214872 | PALNUT, END CAP | $0.00 | |||
| 17 | Y313262 | RETAINER, WIRE HARNESS | $0.00 | |||
| 18 | 315471 | RETAINER | WP22003298 | $7.42 | ||
| 19 | 33001555 | HARNESS, WIRE | $0.00 | |||
| 19 | 208772 | WIRE HARNESS (UPPER) | $0.00 | |||
| 19 | 33001044 | WIRE HARNESS ----NA | $0.00 | |||
| 19 | 33001378 | WIRE ASSY. | $0.00 | |||
| 19 | 33001377 | INDUCTOR, AIR CORE | $0.00 | |||
| 19 | 22001427 | WIRE HARNESS (UPR) NA | $0.00 | |||
| 19 | 33001370 | WIRE HARNESS, MAIN (240V-50HZ) | $0.00 | |||
| 20 | 314477 | SCREW, ACCESS PANEL | $0.00 | |||
| 21 | 33001051 | PANEL, ACCESS (ALM) | $0.00 | |||
| 21 | 33001130 | SHIELD, REFLECTIVE | $0.00 | |||
| 22 | 314482 | FASTENER, SPRING | $0.00 | |||
| 23 | 314498 | PAD, DRYER LEG | $0.00 | |||
| 24 | 33001294 | LEG ASSY. (RT-ALM)----NA | $0.00 | |||
| 25 | Y052740 | NUT | WP62739 | $5.68 | ||
| 26 | Y314137 | PAD | WPY314137 | $15.14 | ||
| 27 | Y305086 | ADJUSTABLE LEG & NUT | WPY305086, W10176519 | $0.00 | ||
| 28 | 210684 | RUBBER FOOT | WP210684 | $13.15 | ||
| 29 | Y302699 | LEG | 22003428 | $11.10 | ||
| 30 | Y052721 | NUT | $21.07 | |||
| 31 | 210385 | NUT- LOCK | WP210385 | $5.63 | ||
| 32 | 314499 | BRACE | $0.00 | |||
| 33 | 214354 | SCREW | $0.00 | |||
| 34 | 306110L | STAND,DRYER(COMPLETE)(ALM) | $0.00 | |||
| 35 | 33001296 | LEG ASSY. (LT-ALM)----NA | $0.00 | |||
| 36 | Y312209 | SCREW | W11164114 | $3.20 | ||
| 37 | Y312904 | BRACKET, TERMINAL BLOCK | $0.00 | |||
| 38 | 311484 | NUT | WP112432 | $6.32 | ||
| 39 | Y310632 | SCREW | $6.43 | |||
| 40 | Y311270 | BLOCK | WPY311270 | $8.41 | ||
| 41 | Y251119 | SCREW | WP3177991 | $6.32 |
*The price can change whitout warning
