Brand: Maytag
Model: LSE7804AGL - LAUNDRY SYSTEM

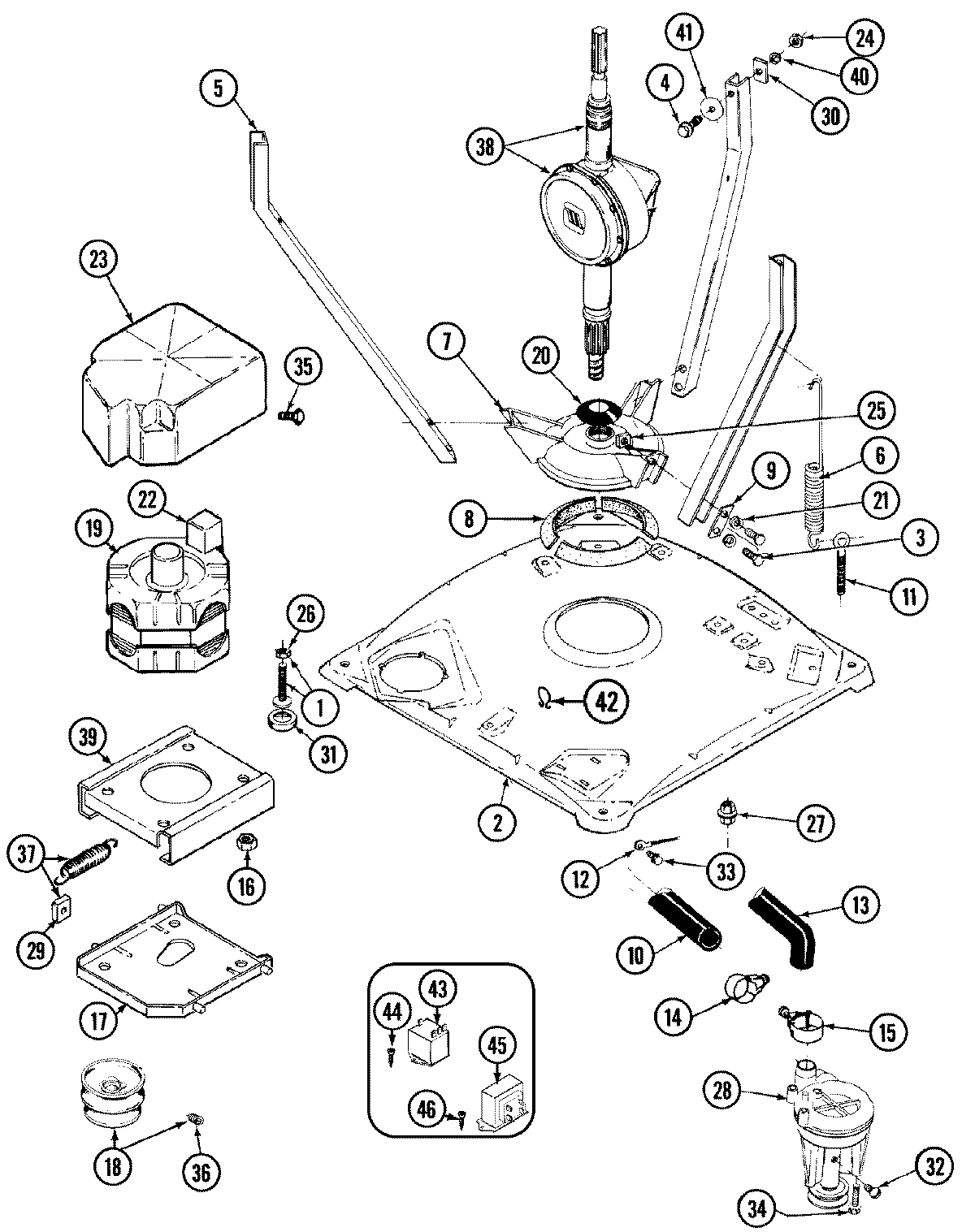

01 - BASE
- 01 - BASE
- 01 - UPPER OVEN PARTS
- 02 - CABINET
- 02 - CABINET
- 03 - CABINET-DRYER
- 03 - REFRIGERATOR SHELF PARTS
- 04 - CLUTCH, BRAKE & BELTS
- 05 - GEARCASE, MOTOR AND PUMP PARTS
- 05 - UNIT, LIT/OPTIONAL
- 06 - FRONT
- 10 - TOP & LID
- 11 - TOP & LID (LSE7804AGM)
- 13 - TUB
- 14 - TUMBLER
- 15 - WIRING INFORMATION-DRYER
- 16 - WIRING INFORMATION-WASHER
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | Y302699 | LEG | 22003428 | $11.10 | ||
| 2 | 22001172 | BASE (W/DAMPER PADS) | $0.00 | |||
| 3 | Y015627 | SCREW | $7.53 | |||
| 4 | 200744 | BOLT | W10175939 | $6.32 | ||
| 4 | 205254 | BOLT | W10175938 | $6.28 | ||
| 5 | 213053 | BRACE, TUB | $0.00 | |||
| 6 | 22001300 | SPRING, CENTERING | $0.00 | |||
| 7 | 203725 | DAMPER W/BOLT & CLIP | $0.00 | |||
| 8 | 203956 | DAMPER PADS WITH POLY LUBE | $50.68 | |||
| 9 | 213073 | WASHER, DOUBLE | $0.00 | |||
| 10 | 215365 | HOSE, PUMP (SIPHON BREAK) | WP22001448 | $62.03 | ||
| 11 | 216416 | BOLT | W11129403 | $12.16 | ||
| 12 | 901220 | WIRE, GROUND | $0.00 | |||
| 13 | 213045 | DRAIN HOSE | WP213045 | $45.40 | ||
| 14 | 202574 | CLAMP | WP3367052 | $0.00 | ||
| 15 | 202574 | CLAMP | WP3367052 | $0.00 | ||
| 16 | Y311426 | NUT | WP3400029 | $6.06 | ||
| 17 | 22001301 | MOUNT, MOTOR LOWER-ASSEMBLY | $0.00 | |||
| 18 | Y202496 | PULLEY, MOTOR (W/SET SCREW) | $0.00 | |||
| 19 | 202157 | MOTOR,DRIVE | 12002352 | $246.06 | ||
| 20 | 211028 | DEFLECTOR,WATER (DRIVE TUBE) | $0.00 | |||
| 21 | 911852 | WASHER, LOCK (BRACE) | $0.00 | |||
| 22 | 205132 | SWITCH, MOTOR START | $0.00 | |||
| 23 | 215098 | SHIELD, MOTOR | $0.00 | |||
| 24 | Y052734 | NUT | $0.00 | |||
| 25 | Y052785 | NUT,BRACE TO DAMPER | $0.00 | |||
| 26 | 210385 | NUT- LOCK | WP210385 | $5.63 | ||
| 27 | 211949 | ADJUSTING NUT | WP211949 | $5.34 | ||
| 28 | 202203 | MAYTAG WASHER PUMP | WP6-2022030 | $126.58 | ||
| 29 | 204998 | ROLLER SPRING KIT MAYTAG | 205000 | $66.14 | ||
| 30 | 212979 | WASHER, TUB BRACE | $0.00 | |||
| 31 | 210684 | RUBBER FOOT | WP210684 | $13.15 | ||
| 32 | Y015408 | SCREW | 22003235 | $7.53 | ||
| 33 | 912365 | SCREW | WP489128 | $9.34 | ||
| 34 | 211880 | SCREW | WPY014874 | $6.32 | ||
| 35 | 213121 | SCREW | WPW10346892 | $6.33 | ||
| 36 | 22001353 | SCREW | $0.00 | |||
| 37 | 205000 | ROLLER SPRING KIT MAYTAG | $66.14 | |||
| 37 | 22001442 | SPRING | 202718 | $10.71 | ||
| 38 | 206707 | TRANSMISSION, ORBITAL | $0.00 | |||
| 39 | 214956 | MOUNT, MOTOR/UPPER | $0.00 | |||
| 40 | Y054867 | WASHER, LOCK | $0.00 | |||
| 41 | 211100 | WASHER, CUSHION | $0.00 | |||
| 42 | 315471 | RETAINER | WP22003298 | $7.42 | ||
| 43 | 208227 | RELAY (240V, 50HZ) | $0.00 | |||
| 44 | Y251119 | SCREW | WP3177991 | $6.32 | ||
| 45 | 33001114 | TRANSFORMER (STEP DOWN) | $0.00 | |||
| 46 | Y313559 | SCREW | WP90767 | $6.30 |
*The price can change whitout warning
