Brand: Maytag
Model: LSE7804AGL - LAUNDRY SYSTEM

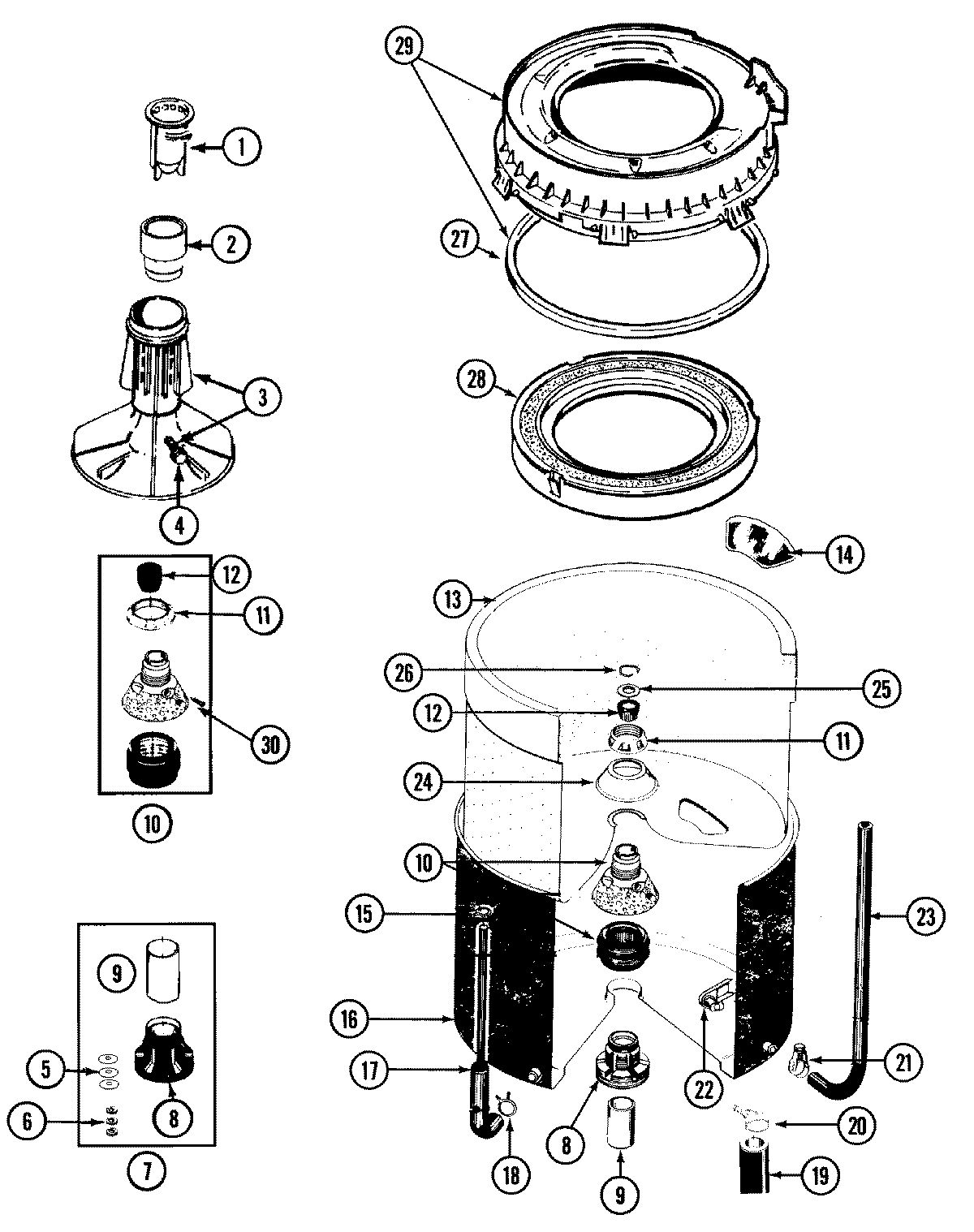

13 - TUB
- 01 - BASE
- 01 - UPPER OVEN PARTS
- 02 - CABINET
- 02 - CABINET
- 03 - CABINET-DRYER
- 03 - REFRIGERATOR SHELF PARTS
- 04 - CLUTCH, BRAKE & BELTS
- 05 - GEARCASE, MOTOR AND PUMP PARTS
- 05 - UNIT, LIT/OPTIONAL
- 06 - FRONT
- 10 - TOP & LID
- 11 - TOP & LID (LSE7804AGM)
- 13 - TUB
- 14 - TUMBLER
- 15 - WIRING INFORMATION-DRYER
- 16 - WIRING INFORMATION-WASHER
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 22001294 | CUP, DISPENSING | $0.00 | |||
| 2 | 22001295 | HOUSING, DISPENSER | $33.56 | |||
| 3 | 207538 | AGITATOR | WP207538 | $177.90 | ||
| 4 | 206478 | SCREW & WASHER FOR AGITATOR | $0.00 | |||
| 5 | 211100 | WASHER, CUSHION | $0.00 | |||
| 6 | Y054867 | WASHER, LOCK | $0.00 | |||
| 7 | 204013 | BEARING KIT | 6-2040130 | $72.58 | ||
| 8 | 200824 | BEARING KIT | 6-2040130 | $72.58 | ||
| 9 | 211130 | LINER, TUB BEARING | $0.00 | |||
| 10 | 204012 | MOUNTING STEM & BOOT SEAL KIT | 6-2095720 | $132.66 | ||
| 11 | 211047 | CLAMPING NUT | WP6-2110472 | $49.59 | ||
| 12 | Y0A4298 | WATER SEAL | WP6-0A57420 | $26.14 | ||
| 13 | 22001140 | TUB, INNER (LARGE-WHT) | $0.00 | |||
| 14 | 207219 | FILTER | $55.57 | |||
| 15 | 410296 | CLAMP | WP596669 | $6.27 | ||
| 16 | 22001116 | TUB, OUTER (STACK) | $0.00 | |||
| 17 | 22001073 | TUBE, WATER LEVEL SWITCH | $0.00 | |||
| 18 | 211641 | CLAMP | WP285655 | $5.88 | ||
| 19 | 213045 | DRAIN HOSE | WP213045 | $45.40 | ||
| 20 | 201011 | CLAMP | WP285655 | $5.88 | ||
| 21 | 205161 | CLAMP | WP489503 | $9.86 | ||
| 22 | 214434 | SPOUT, DEFLECTOR | $0.00 | |||
| 23 | 214495 | TUBE, INLET TO TUB | $0.00 | |||
| 24 | 211210 | WASHER,CLAMPING NUT(STAINLESS) | $0.00 | |||
| 25 | Y015666 | WASHER,RETAINING(CENTER SEAL)- | WPY015666 | $0.00 | ||
| 26 | Y015667 | RETAINING RING | $0.00 | |||
| 27 | 22001007 | GASKET | WP22001007 | $63.07 | ||
| 28 | 22001142 | RING,BALANCE (W/CONCRETE) | WPW10860268 | $215.38 | ||
| 29 | 22001299 | TUB COVER | $203.77 | |||
| 30 | 211618 | SCREW | 22001423 | $40.31 |
*The price can change whitout warning
