Brand: Maytag
Model: A26CA - DISHWASHER, UNDERCOUNTER

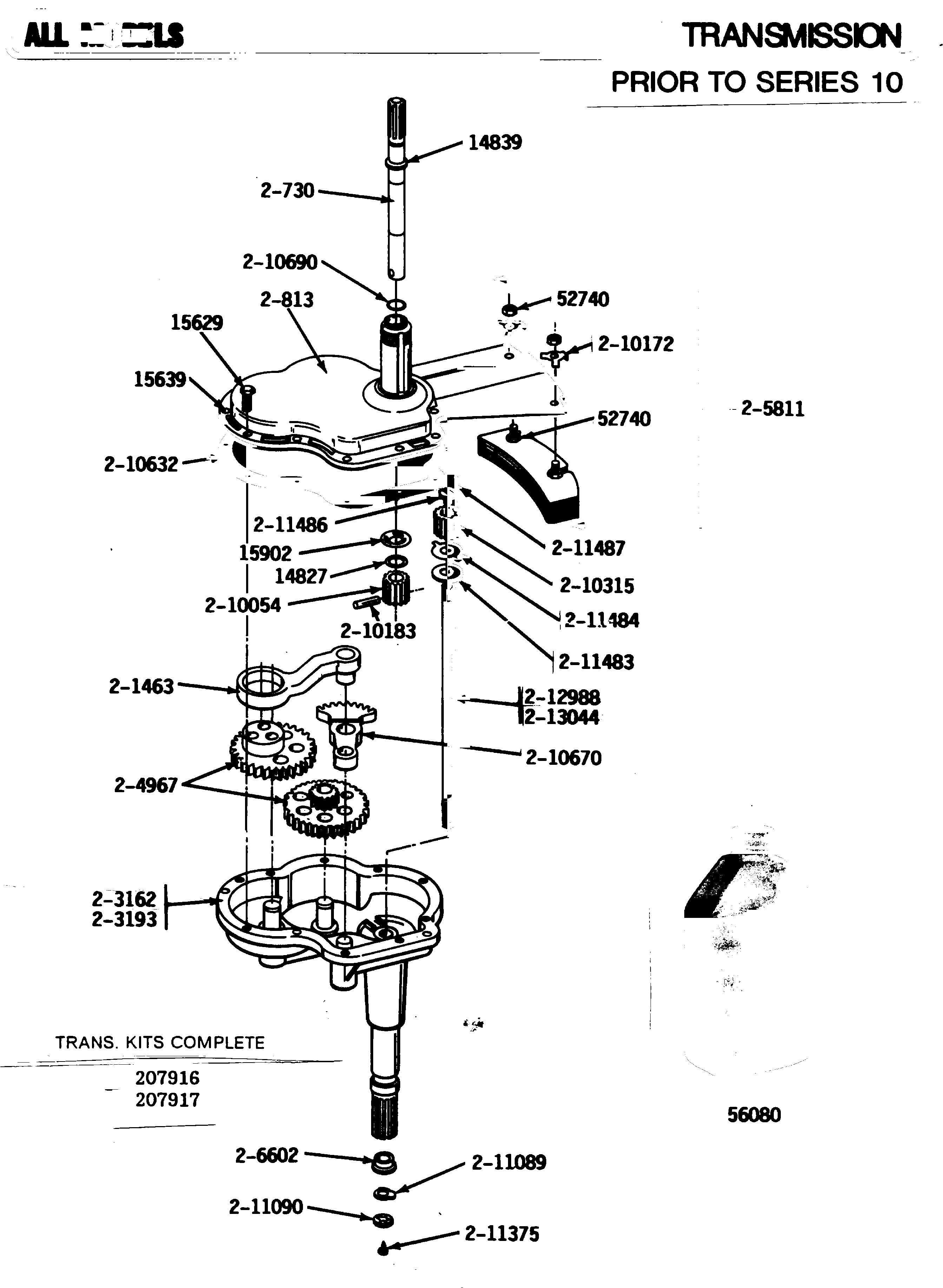

05 - TRANSMISSION (SERIES 00)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 001 | Y014827 | WASHER-CENTER SHAFT | $0.00 | |||
| 002 | Y014839 | COLLAR-DRIVE SHAFT | $0.00 | |||
| 003 | Y015629 | BOLT, GRINDING CHAMBER-DRAI | $0.00 | |||
| 004 | NLA | DOWEL PIN | WG03A02017 | $0.00 | ||
| 005 | Y015902 | SPRING FOR AGITATOR | $0.00 | |||
| 006 | Y052740 | NUT | WP62739 | $5.68 | ||
| 007 | Y056080 | TRANS LUBE - AUTO, 34 OZ. | $0.00 | |||
| 008 | 200730 | AGITATOR SHAFT | $0.00 | |||
| 009 | NLA | GEAR CASE COVER ASSEMBLY | WG03A02017 | $0.00 | ||
| 010 | NLA | PITMAN WITH WRIST PIN | WG03A02017 | $0.00 | ||
| 011 | NLA | PART NOT USED | WG03A02017 | $0.00 | ||
| 012 | NLA | HOUSING, GEAR | WG03A02017 | $0.00 | ||
| 013 | 204967 | GEAR KIT-POWER FIN AGITATOR | $0.00 | |||
| 014 | NLA | COUNTERWEIGHT | WG03A02017 | $0.00 | ||
| 015 | 206602 | SEAL | 207843 | $14.93 | ||
| 016 | 210054 | PINION | $0.00 | |||
| 017 | NLA | LOCK WASHER | WG03A02017 | $0.00 | ||
| 018 | 210183 | GROOV-PIN, 1/4 X 1-1/4 | $0.00 | |||
| 019 | 210315 | PINION | $0.00 | |||
| 020 | 210632 | TRANSMISSION GASKET | 22210632 | $13.20 | ||
| 021 | NLA | SEGMENT | WG03A02017 | $0.00 | ||
| 022 | 210690 | SEAL, RUBBER | $0.00 | |||
| 023 | 211089 | STOP LUG | WP211089 | $10.04 | ||
| 024 | 211090 | LOCK WASHER | WP22003555 | $18.31 | ||
| 025 | 211375 | SCREW #8-32 X 1/2 | WP912618 | $6.32 | ||
| 026 | 211483 | WASHER | WP6-2114830 | $6.28 | ||
| 027 | 211484 | LUG WASHER | $0.00 | |||
| 028 | 211486 | SCREW, 3/8-16 X 1/2 INCH | $0.00 | |||
| 029 | NLA | GROOV-PIN | WG03A02017 | $0.00 | ||
| 030 | 212988 | CENTER SHAFT MAYTAG | $44.51 | |||
| 031 | 213044 | SHAFT, CENTER | $0.00 |
*The price can change whitout warning
