Brand: Maytag
Model: A26CA - DISHWASHER, UNDERCOUNTER

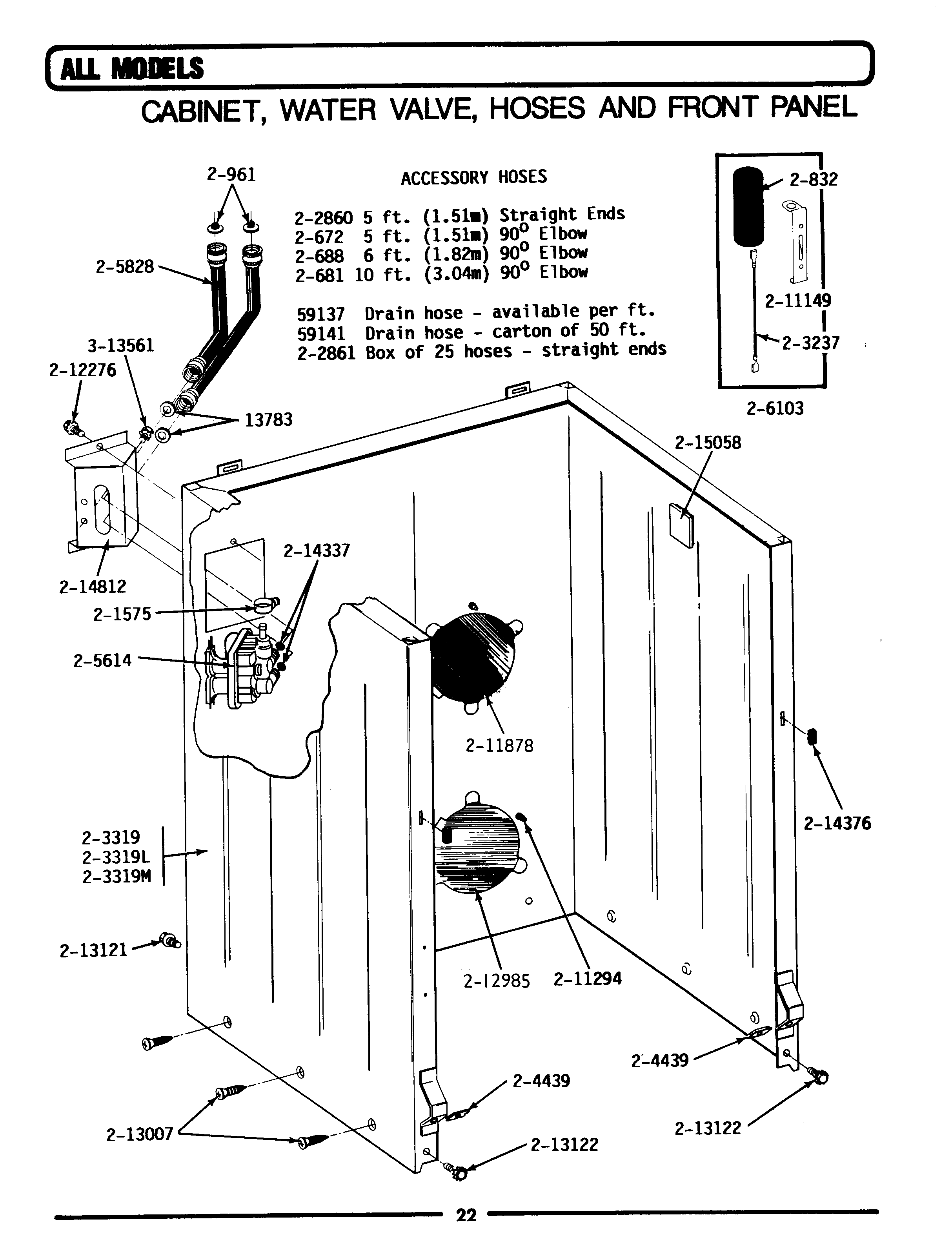

03 - CABINET, WATER VALVE, HOSES & FRNT PANEL
- 01 - COVER SHEET
- 02 - CONTROL PANEL, TOP CVR & LID SWTCH (12)
- 03 - CABINET, WATER VALVE, HOSES & FRNT PANEL
- 03 - DOOR
- 05 - TRANSMISSION (SERIES 00)
- 06 - ORBITAL TRANSMISSION (SERIES 10)
- 08 - CLUTCH, BRAKE & BELTS
- 08 - FREEZER DOOR
- 09 - 50HZ CONVERSION LIST
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 001 | Y013783 | GASKET, INLET HOSE | WPY013783 | $0.00 | ||
| 002 | Y059137 | HOSE 31/32`` PER FOOT BRANCH ST | $0.00 | |||
| 003 | Y059141 | CTN. 50 FT. 31/32 DRAIN HOS | $0.00 | |||
| 004 | 200461 | CLAMP | WP285655 | $5.88 | ||
| 005 | 200672 | HOSE | WP76314 | $29.93 | ||
| 006 | 200681 | INLET HOSE, HOT 10 FT. | $0.00 | |||
| 007 | 200688 | HOSE | WP76314 | $29.93 | ||
| 008 | Y200832 | CAPACITOR | WPY200832 | $0.00 | ||
| 009 | 200908 | CLAMP | WP285655 | $5.88 | ||
| 010 | 200961 | SCREEN WAS | $0.96 | |||
| 011 | 201112 | SIPHON BREAK KIT | 76660 | $84.67 | ||
| 012 | 201575 | CLAMP | WP596669 | $6.27 | ||
| 013 | 202860 | FILL HOSE | WP89503 | $18.19 | ||
| 014 | 202861 | FILL HOSE | WP89503 | $18.19 | ||
| 015 | 203237 | No.17 WIRE WITH TERMINAL | $0.00 | |||
| 016 | NLA | CABINET-WHITE | WG03A02017 | $0.00 | ||
| 017 | 204439 | SCREW & FSTNER ASSY(FRT.PANEL) | $0.00 | |||
| 018 | 205614 | WATER VALVE 120V 60HZ | 205613, CW151, WG04F05001, 358276, WP358276 | Call to order | ||
| 019 | 205828 | FILL HOSE | WP89503 | $18.19 | ||
| 020 | 206103 | CAPACITOR KIT | $0.00 | |||
| 021 | 211111 | HOSE COUPLING | WP16272 | $0.00 | ||
| 022 | 211149 | CLIP, CAPACITOR | $0.00 | |||
| 023 | 211294 | SCREW | WP90767 | $6.30 | ||
| 024 | 211448 | CLAMP | $0.00 | |||
| 025 | NLA | PLATE, ACCESS | WG03A02017 | $0.00 | ||
| 026 | 212276 | SCREW | WP90767 | $6.30 | ||
| 027 | 212982 | CLIP FASTENER | WP22001650 | $5.88 | ||
| 028 | 212985 | PLATE, ACCESS (W/HOLE) | $0.00 | |||
| 029 | 212998 | FRONT PANEL-WHITE | $0.00 | |||
| 030 | 213007 | SCREW | $10.79 | |||
| 031 | 213121 | SCREW | WPW10346892 | $6.33 | ||
| 032 | 213122 | SCREW | WP27001200 | $5.34 | ||
| 033 | 213846 | GUARD, BELT | $0.00 | |||
| 034 | 214337 | SCREEN | WP96160 | $10.01 | ||
| 035 | 214376 | SPACER, FRONT PANEL | $0.00 | |||
| 036 | 214768 | DRAIN HOSE, 4 FOOT | $0.00 | |||
| 037 | 214812 | BRACKET,WATER VALVE | $0.00 | |||
| 038 | 215057 | DRAIN HOSE | $0.00 | |||
| 039 | 215058 | PAD, CABINET BUMPER | $0.00 | |||
| 040 | Y310842 | SCREW | $0.00 | |||
| 041 | Y313561 | SCREW | WPY313561 | $5.09 |
*The price can change whitout warning
