Brand: Maytag
Model: A26CA - DISHWASHER, UNDERCOUNTER

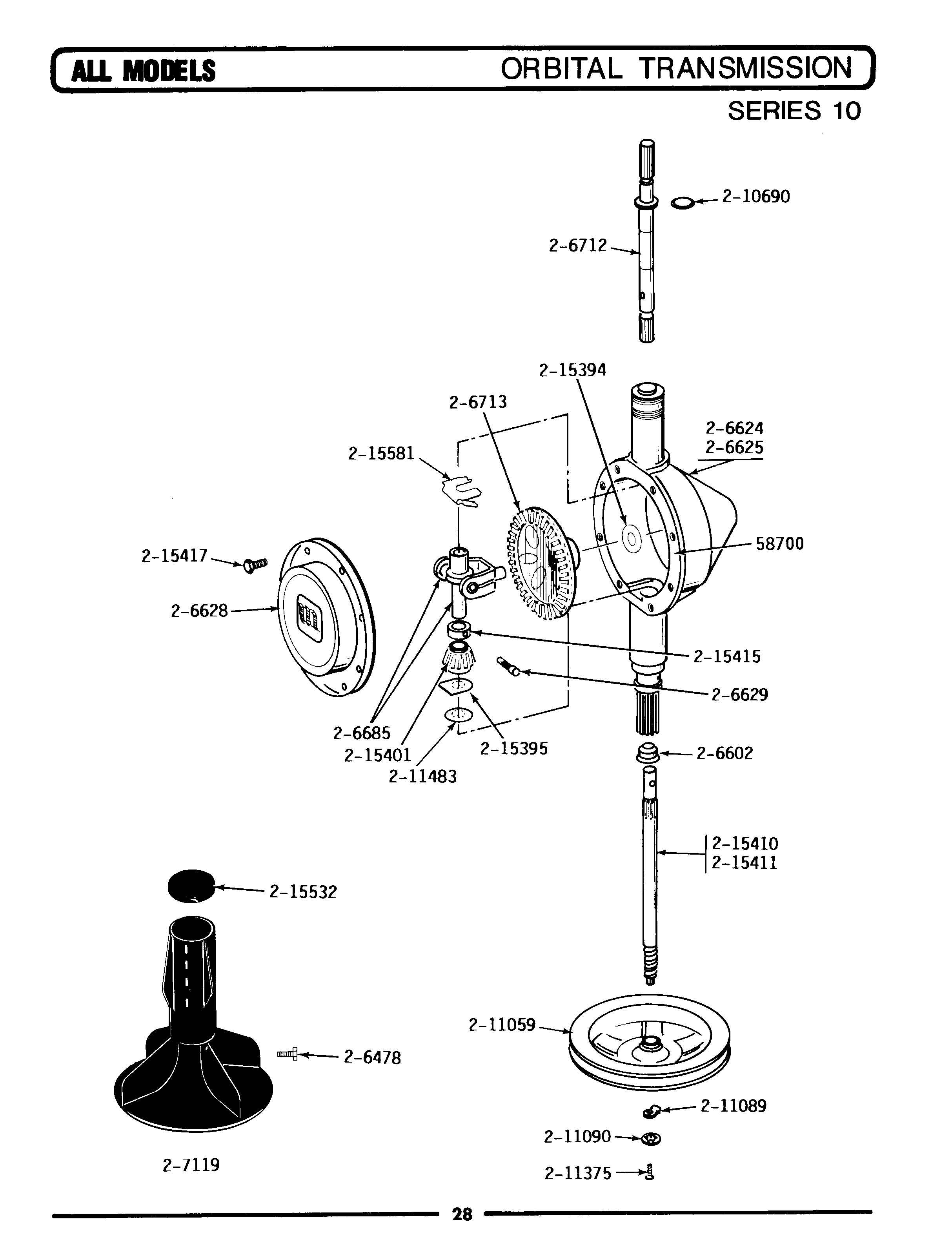

06 - ORBITAL TRANSMISSION (SERIES 10)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 001 | Y058700 | ADHESIVE | W10841140 | $25.16 | ||
| 002 | 206478 | SCREW & WASHER FOR AGITATOR | $0.00 | |||
| 003 | 206602 | SEAL | 207843 | $14.93 | ||
| 004 | 206624 | HOUSING, TRANSMISSION | $0.00 | |||
| 005 | 206625 | HOUSING, TRANSMISSION | $0.00 | |||
| 006 | 206628 | COVER, TRANSMISSION | $0.00 | |||
| 007 | Y206629 | PIN- COLLA | WPY206629 | $5.90 | ||
| 008 | 206685 | BLOCK, TORQUE AND YOKE ASSEMBL | $0.00 | |||
| 009 | 206712 | ASSEMBLY, AGITATOR SHAFT | 6-2097820 | $0.00 | ||
| 010 | 206713 | GEAR, BEVEL | $0.00 | |||
| 011 | 207119 | AGITATOR W/LOCK SCREW | $0.00 | |||
| 012 | 210690 | SEAL, RUBBER | $0.00 | |||
| 013 | 211059 | LOWER PULLEY | WP6-2301530 | $154.38 | ||
| 014 | 211089 | STOP LUG | WP211089 | $10.04 | ||
| 015 | 211090 | LOCK WASHER | WP22003555 | $18.31 | ||
| 016 | 211375 | SCREW #8-32 X 1/2 | WP912618 | $6.32 | ||
| 017 | 211483 | WASHER | WP6-2114830 | $6.28 | ||
| 018 | 215394 | WASHER | $5.02 | |||
| 019 | 215395 | PLATE- CLU | WP215395 | $6.27 | ||
| 020 | 215401 | PINION | WPW10221114 | $49.77 | ||
| 021 | 215410 | CTR SHAFT W/COLLAR (COURT) | 12001450 | $23.70 | ||
| 022 | NLA | SHAFT, CENTER | WG03A02017 | $0.00 | ||
| 023 | 215415 | COLLAR, LOWER | $0.00 | |||
| 024 | 215417 | SCREW, TRANSMISSION COVER | $0.00 | |||
| 025 | 215532 | AGITATOR CAP - BLACK | $0.00 | |||
| 026 | 215581 | SPRING,AGITATOR SHAFT | WP215581 | $7.03 |
*The price can change whitout warning
