Brand: Electrolux
Model: EW23BC70IS1 - REFRIGERATOR

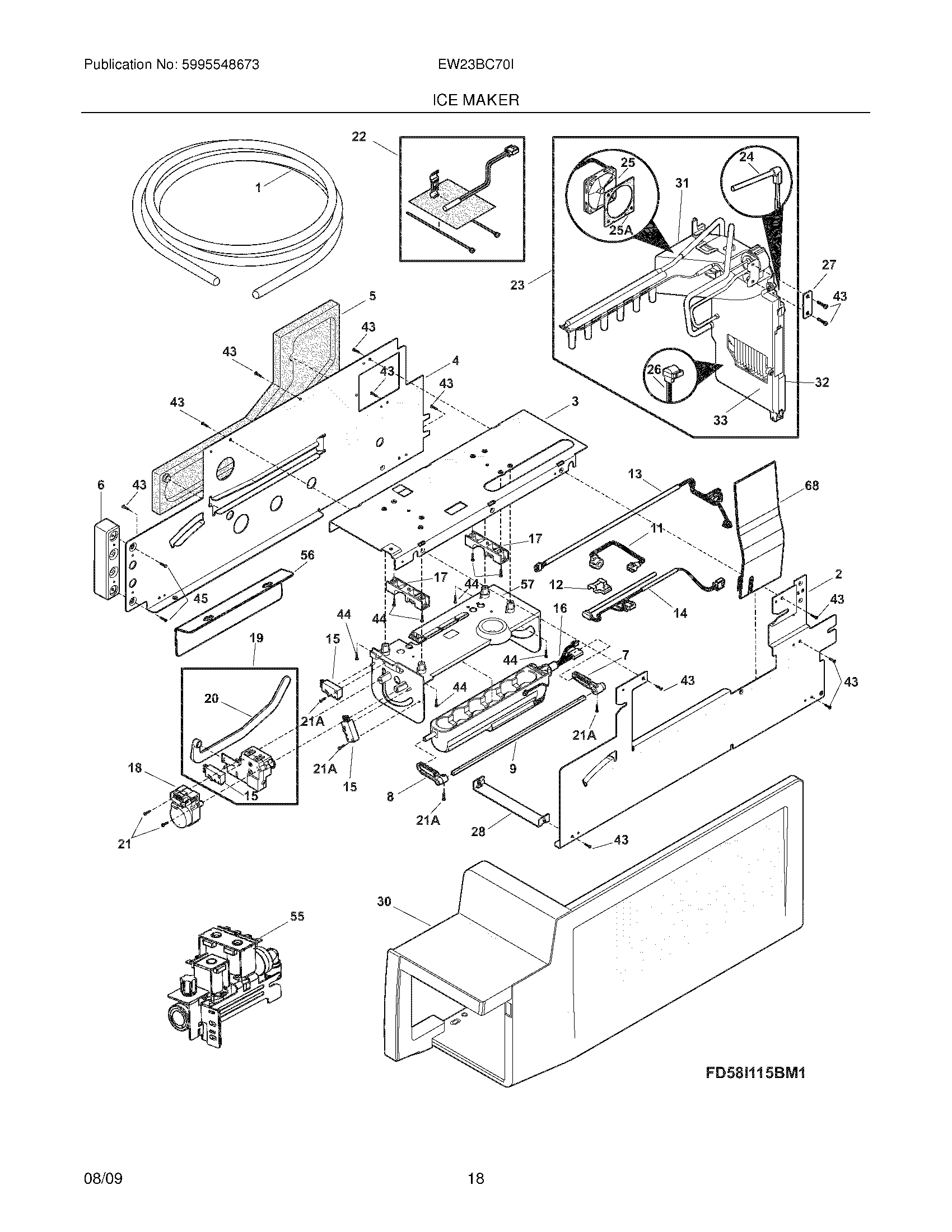

17 - ICE MAKER
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 7218976424 | TUBE,WATER INLET,64",YELLOW | 218976424 | $22.10 | ||
| NI | 7241964701 | FILL TUBE ASSY | 241920101 | $47.75 | ||
| NI | 7241965901 | Tube-water,formed ,64.86`` | 241965901 | $0.00 | ||
| NI | 7241920101 | FILL TUBE ASSY | 241920101 | $47.75 | ||
| 2 | 7241937302 | Frame-icemaker,RH | $0.00 | |||
| 3 | 7241828501 | Frame-icemaker,top | 241828501 | $0.00 | ||
| 4 | 7241937502 | Frame-icemaker,LH | 241937502 | $0.00 | ||
| 5 | 7241870701 | Duct-air | 241870701 | $0.00 | ||
| 6 | 7241954001 | Spacer,icemaker | 241954001 | $0.00 | ||
| 7 | 7241939001 | Bracket,ice tray | 241939001 | $0.00 | ||
| 8 | 7241827701 | BRACKET ICE TRAY | 241827701 | $48.45 | ||
| 9 | 7241841701 | SHAFT MOTOR ICEMAKER | 241841701 | $0.00 | ||
| 11 | 7241983101 | HEATER HARVEST | 241983101 | $261.60 | ||
| 12 | 7241997601 | Clamp,strain relief | 241997601 | $0.00 | ||
| 13 | 7241921501 | HARNESS WIRING ICE MAKER | 241921501 | $225.35 | ||
| 14 | 7241983201 | Heater,harvest ,115 V | 241983201 | $0.00 | ||
| 15 | 7241870101 | Switch | 241870101 | $0.00 | ||
| 16 | 7241827901 | ICE MAKER TRAY | 242043902 | $333.10 | ||
| 17 | 7241828101 | Bracket-evap coil | 241828101 | $0.00 | ||
| 18 | 7241817701 | MOTOR ICE MAKER | 241817701 | $100.10 | ||
| NI | 7241820701 | HARNESS WIRING ICMKR | 241820701 | $128.80 | ||
| 19 | 7241939901 | Shut-off Arm Assembly | 241939901 | $0.00 | ||
| 20 | 7241839501 | SHUT OFF ARM | 241839501 | $0.00 | ||
| 21 | 7242024101 | SCREW | 242024101 | $1.70 | ||
| 21A | 7242024401 | Screw | 242024401 | $0.00 | ||
| 22 | 75303918416 | THERMISTER KIT,T-3 SUCTION | 5303918416 | $100.15 | ||
| 23 | 75303918407 | EVAPORATOR | 5303918407 | $875.20 | ||
| 24 | 7241962501 | HEATER DEFROST ICEMAKER | 241962501 | $254.00 | ||
| 25 | 7241870801 | Fan | 241870801 | $0.00 | ||
| 25A | 7241962301 | Gasket-evap fan,icemaker | $0.00 | |||
| 26 | 7241962601 | Thermistor | 241962601 | $0.00 | ||
| 27 | 7241963401 | Gasket,ice maker | $0.00 | |||
| 28 | 7241828701 | Brace,icemaker ,front | 241828701 | $0.00 | ||
| 30 | 7242016101 | Cover,icmkr & bucket | 242016103 | $0.00 | ||
| 31 | 7241925101 | Shroud-evap fan mtg,ice maker | $0.00 | |||
| 32 | 7241925201 | Cover,rear ,i/mk evaporator | $0.00 | |||
| 33 | 7241924701 | Cover,front ,i/mk evaporator | $0.00 | |||
| 43 | 7218359202 | SCREW,PAN HEAD,8-32 X 0.250 | 218359202 | $10.90 | ||
| 44 | 7241870406 | Screw | 241870406 | $0.00 | ||
| 45 | 7241641501 | SCREW,CONTROL MTG | 5304453707 | $15.25 | ||
| 55 | 7241734301 | VALVE,WATER,TRIPLE SOLENOID | 242252702 | $127.00 | ||
| NI | 7218709101 | SCREW-HDL MTG,HEX WSH HD,#10AB | 218709101 | $6.55 | ||
| NI | 7240363602 | SCREW-SHOULDER,#12-11,HEX HD | 240363602 | $13.05 | ||
| 56 | 7241865501 | Rail,ice maker ,RH ,vertical | 241865501 | $0.00 | ||
| 57 | 7241816901 | BRACKET EVAP ASSEMBLY | 241816901 | $0.00 | ||
| 68 | 7241969701 | WATER DEFLECTOR | 241969702 | $16.45 | ||
| NI | 7242015401 | SCREW,HEX WASHER HEAD,8-18AB X | 241500303 | $4.35 | ||
| NI | 7240352102 | CONNCETOR-WATER,STRAIGHT | 241806601 | $69.65 | ||
| NI | 7240396801 | CLAMP TUBE | 240396801 | $19.60 | ||
| NI | 7241641502 | SCREW | 241641502 | $8.70 | ||
| NI | 75303918409 | Heat Exchanger,icemaker | 5303918409 | $0.00 |
*The price can change whitout warning
