Brand: Electrolux
Model: EWDW6505GS1C - DISHWASHER, BUILT-IN

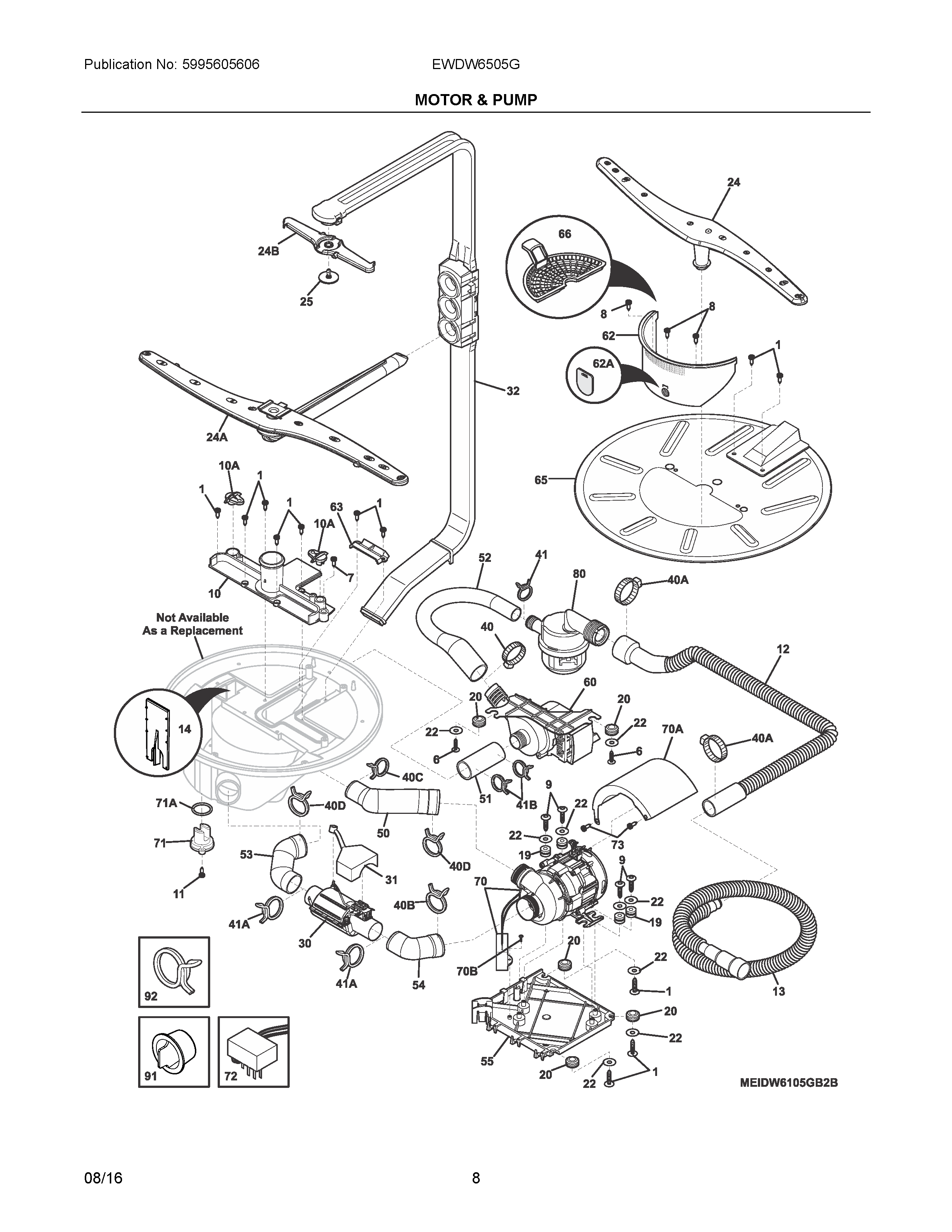

05 - MOTOR & PUMP
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 154518001 | SCREW,PAN HEAD,#10-16 X .8" | $10.80 | |||
| 7 | 154673501 | SCREW, 6 LOBE RECESS, #10 HI LO | $0.00 | |||
| 8 | 154783101 | SCREW,PLT,8-10 | $7.25 | |||
| 9 | 154625701 | SCREW,CONTROL MTG | 5304453707 | $15.25 | ||
| 10 | 154763201 | SUPPORT, LOWER SPRAY ARM | $0.00 | |||
| 10A | 154763301 | CLAMP, FILTER, (2) | $0.00 | |||
| 11 | 154779601 | SCREW,PH,8-10,(2) | $1.45 | |||
| 12 | 154654801 | HOSE, DRAIN, INTERMEDIATE | $0.00 | |||
| 13 | 154654901 | MAIN DRAIN HOSE | 5304521094 | $55.90 | ||
| NIA | 154657201 | SCREW,CABINET CLIP,(2) | $9.20 | |||
| NIB | 154819101 | CLAMP, DRAIN HOSE, TO CABINET | $0.00 | |||
| 14 | 154793601 | BRACKET,DRAIN | $15.25 | |||
| 19 | 154730301 | GROMMET, VIBRATION, (4) | $0.00 | |||
| 20 | 154740001 | GROMMET, VIBRATION, (5) | $0.00 | |||
| 22 | 5300809968 | WASHER | $43.55 | |||
| 24 | 154755501 | SPRAY ARM ASM,LOWER | $58.80 | |||
| 24A | 154508201 | SPRAY ARM ASSY,MIDDLE | $40.65 | |||
| 24B | 154649502 | UPPER SPRAY ARM ASM | $21.80 | |||
| 25 | 154650102 | PIN,SPRAY ARM,UPPER | $8.70 | |||
| 30 | 154503701 | HEATER,INLINE,1200W | $66.05 | |||
| NIA | 154832701 | SUPPORT, INLINE HEATER | $0.00 | |||
| NIB | 154836801 | NUT, PUSH, 7/16 | $0.00 | |||
| 31 | 154622901 | COVER, INLINE HEATER | $0.00 | |||
| 32 | 154515602 | TUBING ASSEMBLY, DELIVERY, W/CHECK VALVE | $0.00 | |||
| 40 | 154692901 | WORMGEAR CLAMP,0.75"-1.75" | 5304513829 | $6.55 | ||
| 40A | 154380601 | CLAMP-HOSE | $75.50 | |||
| 40B | 154787001 | CLAMP, SPRING, SAE 28 | $0.00 | |||
| 40C | 154786701 | CLAMP,SPRING,1.312",SAE 21 | $11.05 | |||
| 40D | 154786901 | CLAMP,SPRING,1.625",SAE 26 | $14.35 | |||
| 41 | 154348401 | CLAMP, RED, PUMP | $33.10 | |||
| 41A | 154786801 | CLAMP, SPRING, SAE 25, HOSE | $0.00 | |||
| 41B | 154691501 | CLAMP,SPRING,(2) | $8.60 | |||
| 50 | 154760501 | HOSE,SUMP TO,MOTOR,CIRCULATION | $11.45 | |||
| 51 | 154757702 | HOSE,SUMP TO ,DRAIN PUMP | $12.05 | |||
| 52 | 154622402 | HOSE,DRAIN PUMP TO DRAIN VALVE | $56.35 | |||
| 53 | 154803401 | HOSE, SUMP TO, INLINE HEATER | 154873001 | $0.00 | ||
| 54 | 154803501 | HOSE, INLINE HEATER, TO MOTOR | 154873101 | $0.00 | ||
| 55 | 154677101 | PLATE,MOTOR MOUNTING | $71.10 | |||
| 60 | 154757901 | WATER PUMP | $129.90 | |||
| 62 | 154600702 | FILTER ASSEMBLY, VERTICAL, W/FLAPPER | $0.00 | |||
| 62A | 154511601 | FLAPPER,DRAIN CHECK | $18.15 | |||
| 63 | 154513501 | COVER, DELIVERY TUBE | $0.00 | |||
| 65 | 154624901 | FILTER ASSY,COARSE SOIL,W/CHIM | $195.20 | |||
| 66 | 154740901 | TRAP, GLASS | $0.00 | |||
| 70 | 154614002 | MOTOR & PUMP ASSY, CIRCULATION, W/CAPACITOR | $0.00 | |||
| 70A | 154656401 | SHIELD, MOTOR, CIRCULATION | $0.00 | |||
| 70B | 154614401 | SCREW, CAPACITOR MTG. | $0.00 | |||
| 71 | 154473901 | SENSOR | $214.10 | |||
| NIA | 154833101 | HARNESS,WIRING,TURBID MODULE | $17.25 | |||
| 71A | 154691901 | O RING | $42.80 | |||
| 72 | 154655901 | SENSOR,LEAK DETECTOR | $108.15 | |||
| 73 | 154518401 | SCREW, 6 LOBE RECESS, #8-32 | $0.00 | |||
| 80 | 154622001 | DRAIN VALVE ASSY | $187.25 | |||
| 91 | 154676701 | PLUG, DRAIN HOSE | $0.00 | |||
| 92 | 154348502 | CLAMP,RED,PUMP | $9.45 |
*The price can change whitout warning
