Brand: Electrolux
Model: EWDW6505GS1C - DISHWASHER, BUILT-IN

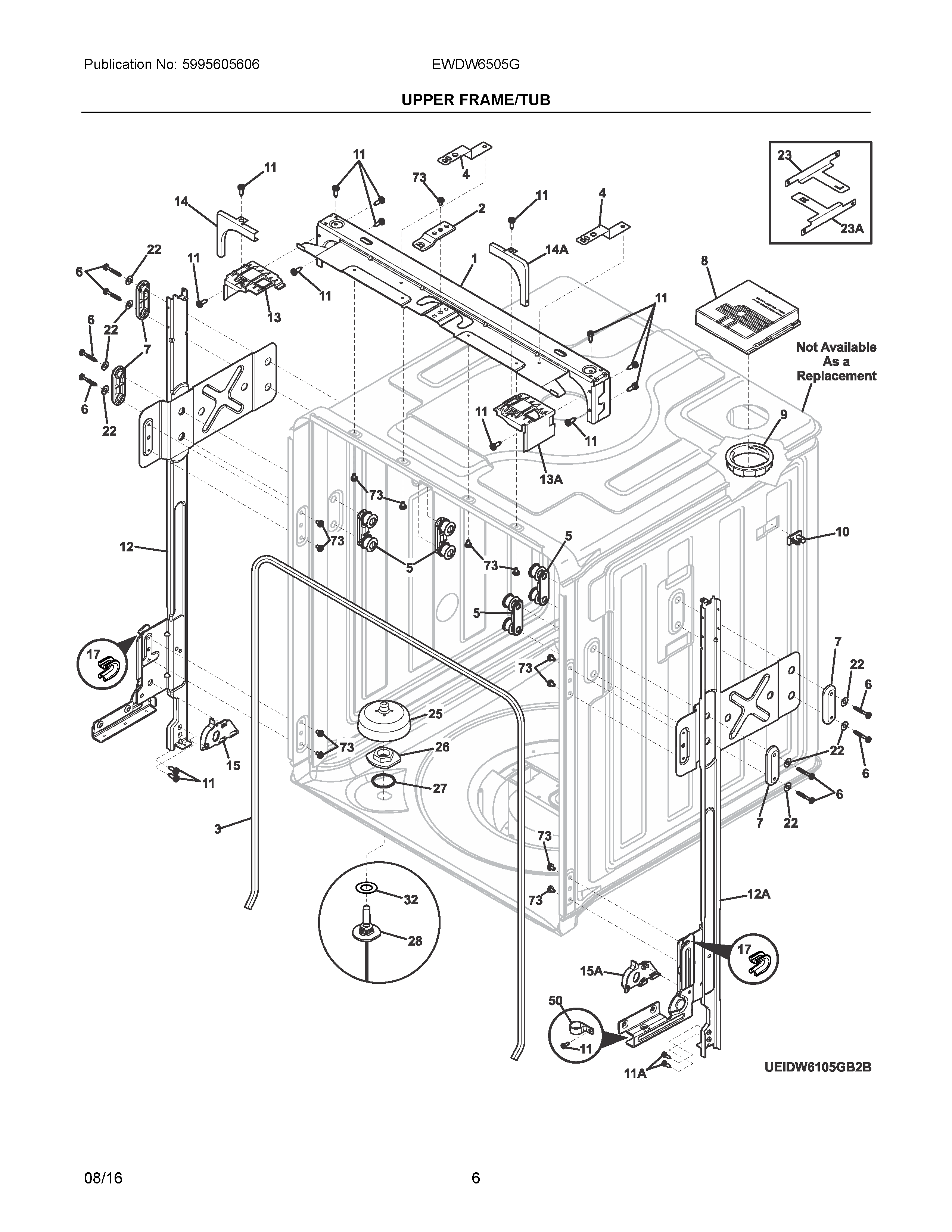

04 - UPPER FRAME/TUB
- 01 - COVER SHEET
- 02 - CONTROL PANEL
- 03 - DOOR
- 04 - UPPER FRAME/TUB
- 05 - MOTOR & PUMP
- 06 - LOWER FRAME
- 07 - RACKS
- 08 - WIRING DIAGRAM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 154500701 | BRACE, FRAME, TOP | $0.00 | |||
| 2 | 154511401 | STRIKE, DOOR LATCH | $0.00 | |||
| 3 | 154782201 | GASKET,TUB | 154859301 | $40.75 | ||
| 4 | 154657901 | CLIP, CABINET MTG., TOP MOUNT, (2) | $0.00 | |||
| NIA | 154657201 | SCREW,CABINET CLIP,(2) | $9.20 | |||
| 5 | 154510702 | ROLLER KIT (4),TUB,W/SEAL | $21.00 | |||
| 6 | 154719001 | SCREW, TUB ROLLER, (8) | $0.00 | |||
| 7 | 154510601 | PLATE, RETAINER, OUTER, (2), TUB ROLLER | $0.00 | |||
| 8 | 154773401 | VENT ASSEMBLY, UPPER | $0.00 | |||
| NIA | 154691601 | COVER,CONNECTOR,VENT ASSY | $13.05 | |||
| 9 | 154622601 | BEZEL,VENT ASSY,UPPER | $21.05 | |||
| 10 | 154633501 | CLIP, WIRING HARNESS | $0.00 | |||
| 11 | 154518301 | SCREW, 6 LOBE RECESS, #8-18 | $0.00 | |||
| 11A | 154200701 | SCREW | $13.80 | |||
| 12 | 154774001 | LEG AND HINGE ASSEMBLY, LEFT HAND, FRONT | $0.00 | |||
| 12A | 154774101 | LEG AND HINGE ASSEMBLY, RIGHT HAND, FRONT | $0.00 | |||
| 13 | 154654401 | BRACKET, CABINET CLIP, LH | $0.00 | |||
| 13A | 154654501 | BRACKET, CABINET CLIP, RH | $0.00 | |||
| 14 | 154502901 | TRIM, CORNER, LH | $0.00 | |||
| 14A | 154502001 | TRIM, CORNER, RH | $0.00 | |||
| 15 | 154656801 | COVER, HINGE ARM, LH | $0.00 | |||
| 15A | 154656901 | COVER, HINGE ARM, RH | $0.00 | |||
| 17 | 154671501 | BUSHING, HINGE ARM CABLE, (2) | $0.00 | |||
| 22 | 5300809968 | WASHER | $43.55 | |||
| 23 | 154654601 | CLIP,CABINET MTG,LH | $52.25 | |||
| 23A | 154654701 | CLIP,CABINET MTG,RH | $47.05 | |||
| 25 | 154764401 | FLOAT,FLOOD,W/MAGNET | $26.05 | |||
| 26 | 154506902 | NUT,FLOAT SWITCH | $0.00 | |||
| 27 | 154677201 | GASKET,FLOAT SWITCH | $8.70 | |||
| 28 | 154763901 | SWITCH ASSEMBLY,REED,FLOAT,WAT | $49.35 | |||
| 32 | 154506801 | WASHER,FLOAT SWITCH | $2.80 | |||
| 50 | 154690101 | CLAMP,WIRING | $15.25 | |||
| 73 | 154518401 | SCREW, 6 LOBE RECESS, #8-32 | $0.00 | |||
| NI | 154623602 | INSULATION, BLANKET | $0.00 | |||
| NI | 154679701 | CLIP, INSULATION, (2) | $0.00 | |||
| NI | 154662101 | CABINET SEAL KIT | $76.20 | |||
| NI | 154733001 | SEAL,TUB CORNER ,RH LOWER | $22.50 | |||
| NI | 154733101 | SEAL,TUB CORNER ,LH LOWER | $21.80 |
*The price can change whitout warning
