Brand: Electrolux
Model: EWDW6505GS1C - DISHWASHER, BUILT-IN

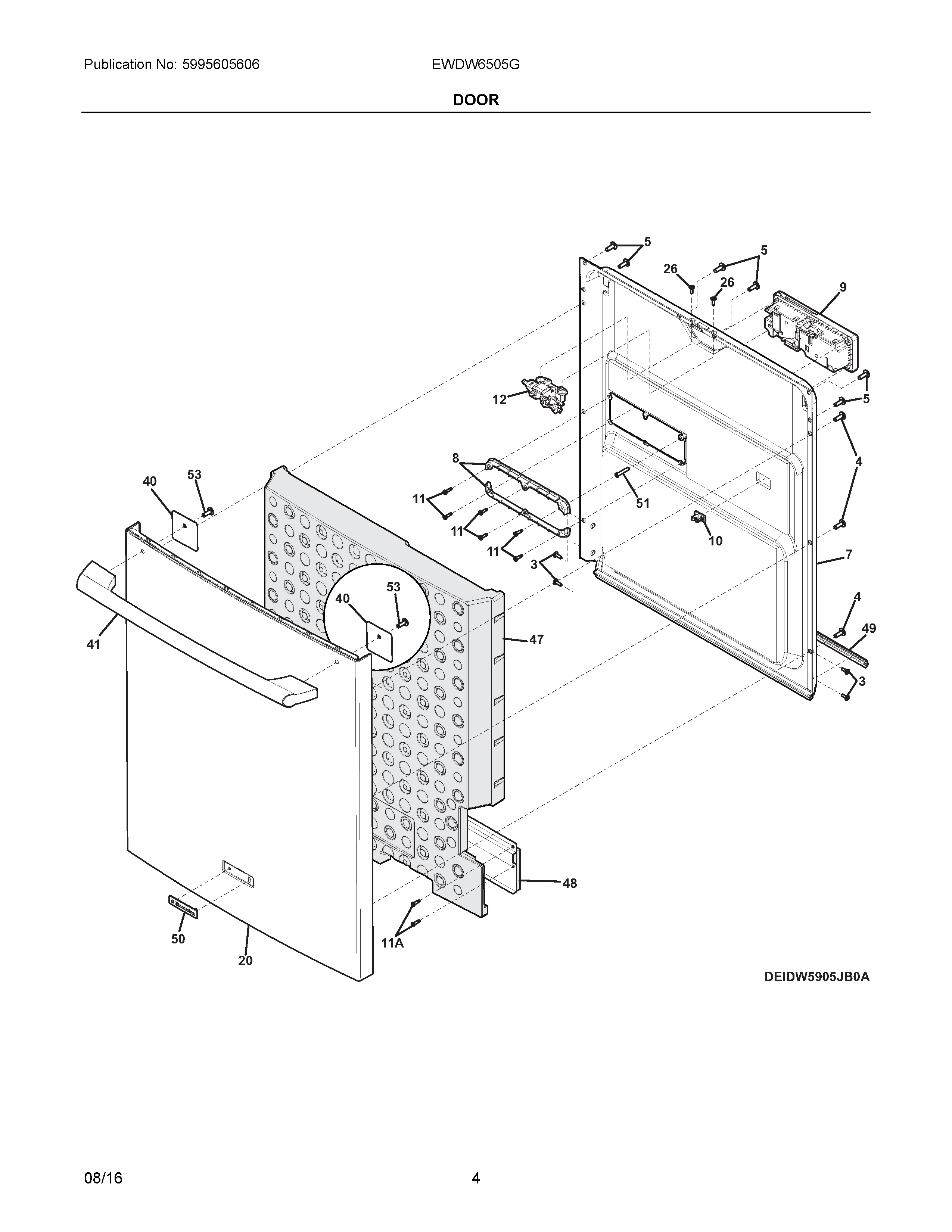

03 - DOOR
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 3 | 154518201 | SCREW, 6 LOBE RECESS, #10-32, (4) | $0.00 | |||
| 4 | 154603801 | SCREW,LOW PROFILE,TRUSS,(6) | $14.50 | |||
| 5 | 154603701 | SCREW, PH, #10-16 HI-LO, (6), 6 LOBE | $0.00 | |||
| 7 | 154840001 | LINER ASSEMBLY, DOOR, INNER, W/MASTIC-WIPER | $0.00 | |||
| 8 | 154670901 | BRACKET, DISPENSER MTG., (2) | $0.00 | |||
| 9 | 154574405 | DISTRIBUTOR, DET / PRODUCT RI | 5304507354 | $71.85 | ||
| 10 | 154633501 | CLIP, WIRING HARNESS | $0.00 | |||
| 11 | 154625702 | SCREW, FT PH 6 LOBE, #8-18 | $0.00 | |||
| 11A | 154518301 | SCREW, 6 LOBE RECESS, #8-18 | $0.00 | |||
| 12 | 154671402 | LATCH ASSY,DOOR | $97.25 | |||
| 20 | 154603501 | DOOR, OUTER, STAINLESS | $0.00 | |||
| 26 | 154519101 | SCREW, PHLPS HD, #10-16 HI LO, (4) | $0.00 | |||
| 40 | 154603401 | PLATE,HANDLE SUPPORT,(2) | $0.00 | |||
| 41 | 241881305 | HANDLE, DOOR, STAINLESS | $0.00 | |||
| 47 | 154672001 | MOISTURE BARRIER, ASSEMBLY, DOOR, W/DATA SHEET | $0.00 | |||
| 48 | 154670301 | REINFORCEMENT, ASSEMBLY, DOOR | $0.00 | |||
| 49 | 154782301 | GASKET, DOOR BOTTOM | 154859401 | $0.00 | ||
| 50 | 154658705 | PLAQUE-MARQUE,STAINLESS STEEL | 241873301 | $4.35 | ||
| 51 | 154320301 | CLAMP, DRIP LOOP, WIRE | $0.00 | |||
| 53 | 154633601 | SCREW,HANDLE MTG.,(2) | $15.25 |
*The price can change whitout warning
