Brand: Electrolux
Model: EWDW6505GS1C - DISHWASHER, BUILT-IN

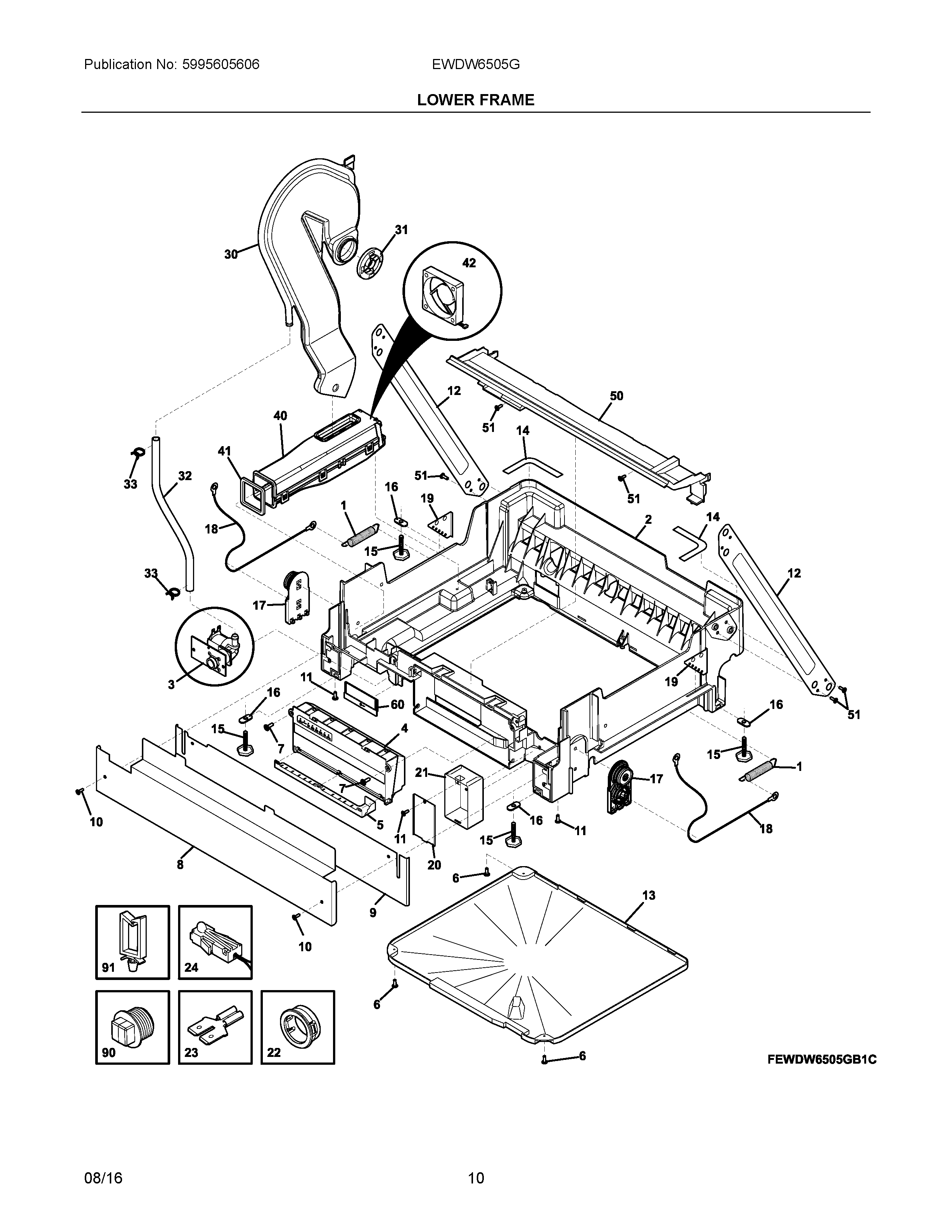

06 - LOWER FRAME
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 154838401 | SPRING,DOOR HINGE,(2) | $30.75 | |||
| 2 | 154502602 | BASE, FRAME MOUNTING | $0.00 | |||
| 3 | 154513601 | VALVE ASSEMBLY, WATER | $0.00 | |||
| NIA | 154689201 | DEFLECTOR, VALVE | $0.00 | |||
| 4 | 154750502 | ORDER ASSY | $342.55 | |||
| 5 | 154624701 | BRACKET, CONTROL HOUSING | $0.00 | |||
| 6 | 154294701 | SCREW-DISPENSER ASSEMB. #7 | $9.45 | |||
| 7 | 154673501 | SCREW, 6 LOBE RECESS, #10 HI LO | $0.00 | |||
| 8 | 154658005 | KICKPLATE,STAINLESS,W/LABEL | $105.25 | |||
| 9 | 154679305 | TOEPLATE,ADJUSTABLE,STAINLESS | $0.00 | |||
| 10 | 154371307 | SCREW, PHILLIPS HEAD, SILVER MIST | $0.00 | |||
| 11 | 154518301 | SCREW, 6 LOBE RECESS, #8-18 | $0.00 | |||
| 12 | 154501301 | FRAME, DIAGONAL, LEG, (2) | $0.00 | |||
| 13 | 154658101 | TRAY, BASE, W/LABEL | $0.00 | |||
| 14 | 154610301 | TAPE, CONNECTION, (2), BASE TO TUB | $0.00 | |||
| 15 | 154571101 | LEVELING LEG | $7.90 | |||
| 16 | 154515401 | PLATE, MOUNTING, (4), LEVELING LEG | $0.00 | |||
| 17 | 154856901 | BRACKET ASSEMBLY, PULLEY, (2) | $0.00 | |||
| 18 | 154658601 | CABLE,PULLEY,HINGE | $84.20 | |||
| 19 | 154514901 | PLATE,ADJUSTMENT,(2),DOOR SPRI | $15.95 | |||
| 20 | 154658201 | COVER, JUNCTION BOX, W/LABEL | $0.00 | |||
| 21 | 154517501 | BOX, JUNCTION | $0.00 | |||
| 22 | 154610701 | GROMMET, ELECTRICAL | $0.00 | |||
| 23 | 154671801 | CONNECTOR, GROUND, 1 FEMALE, TO 2 MALE | $0.00 | |||
| 24 | 154761201 | LIGHT ASSEMBLY, CLEANING | $0.00 | |||
| 30 | 154617901 | DUCT ASSY,SIDE DRYING,W/GASKET | $138.60 | |||
| 31 | 154618301 | COVER, DRYING INLET | $0.00 | |||
| 32 | 154625001 | TUBING,WATER INLET | $17.40 | |||
| 33 | 5303318539 | CLAMP | $1.45 | |||
| 40 | 154617602 | DUCT ASSEMBLY, LOWER DRYING, W/MOTOR | $0.00 | |||
| 41 | 154617801 | GASKET, DRYING DUCT, LOWER | $0.00 | |||
| 42 | 154619101 | MOTOR, DRYING | $0.00 | |||
| 50 | 154818901 | ADAPTOR PLATE, ASSEMBLY, W/SHIELD | $0.00 | |||
| 51 | 154518001 | SCREW,PAN HEAD,#10-16 X .8" | $10.80 | |||
| 90 | 154679801 | PLUG, WATER VALVE | $0.00 | |||
| 91 | 154692601 | CLIP, WIRING | $0.00 | |||
| NI | 154833301 | HARNESS, WIRING, LH SIDE, BASE | $0.00 | |||
| NI | 154833401 | HARNESS, WIRING, RH SIDE, BASE | $0.00 | |||
| NI | 154672301 | SCREW, 6 TRI LOBE, #10 PH, (2) | $0.00 |
*The price can change whitout warning
