Brand: Maytag
Model: JF42NXFXDE02 - REFRIGERATOR, FRENCH DOOR, BUILT-IN, BOTTOM MOUNT

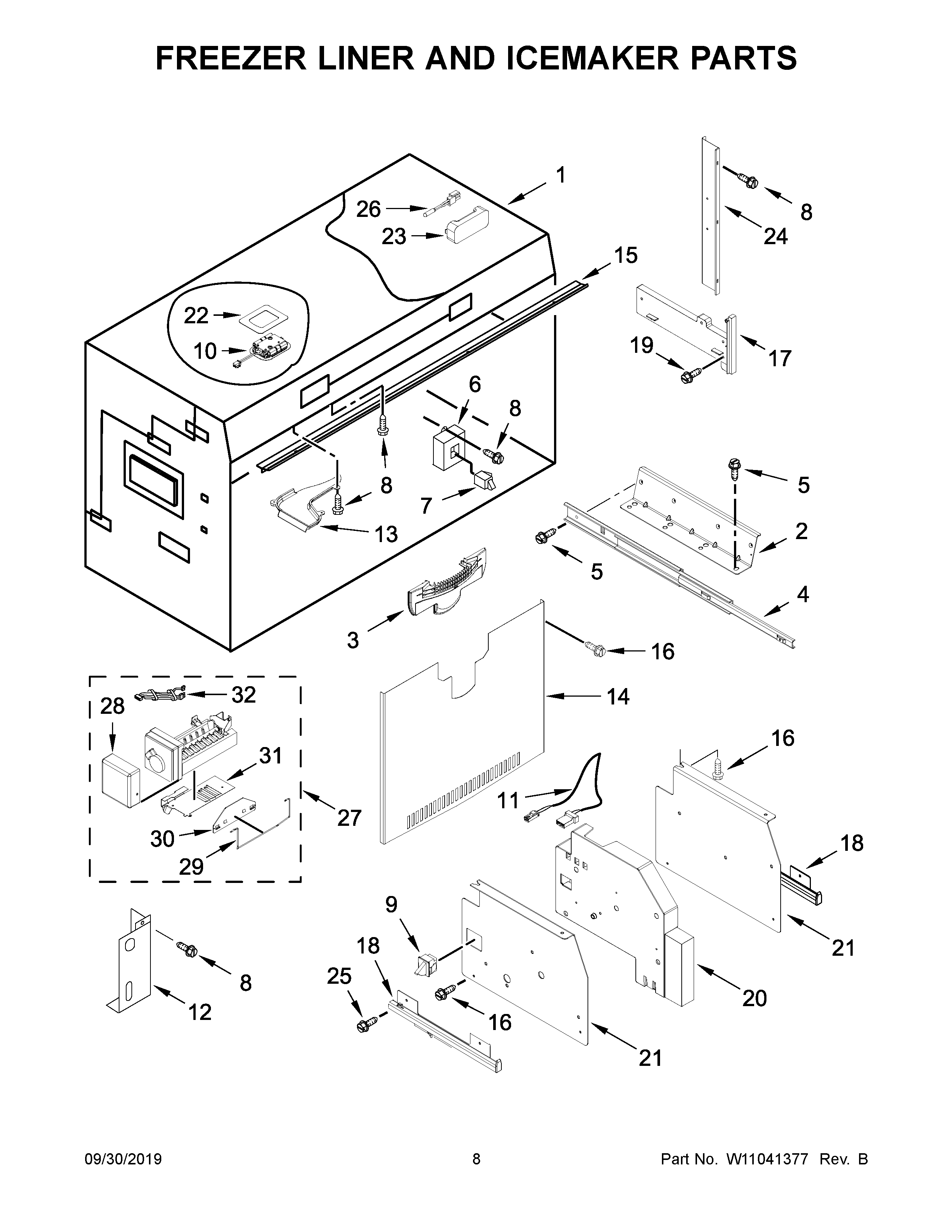

05 - FREEZER LINER AND ICEMAKER PARTS
- 01 - COVER SHEET
- 02 - CABINET PARTS
- 03 - CABINET TRIM PARTS
- 04 - REFRIGERATOR LINER PARTS
- 05 - FREEZER LINER AND ICEMAKER PARTS
- 06 - SHELF PARTS
- 07 - REFRIGERATOR DOOR PARTS
- 08 - FREEZER DOOR AND BASKET PARTS
- 09 - TOP GRILLE AND UNIT COVER PARTS
- 10 - UPPER UNIT PARTS
- 11 - LOWER UNIT AND TUBE PARTS
- 12 - OPTIONAL PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | N/P | LINER, FREEZER (NOT SERVICABLE) | $0.00 | |||
| 2 | W10744327 | SUPPORT | $262.88 | |||
| 3 | W10541687 | GRILLE | $60.73 | |||
| 4 | W10423551 | SLIDE | $291.68 | |||
| 5 | W10061370 | SCREW | $7.53 | |||
| 6 | W10606833 | COVER | $59.14 | |||
| 7 | W10565415 | SWITCH | $17.08 | |||
| 8 | 486194 | SCREW | $11.19 | |||
| 9 | W10565413 | SWITCH | $30.06 | |||
| 10 | W10843339 | MODULE | $230.19 | |||
| 11 | W10568445 | WIRE-JUMPR | $54.80 | |||
| 12 | 2306187 | COVER-WIRE | $58.88 | |||
| 13 | W10578092 | DUCT-AIR | $0.00 | |||
| 14 | W10636532 | COVER-EVAP | $178.01 | |||
| 15 | W10710401 | DEFLECTOR | $107.23 | |||
| 16 | W10001160 | SCREW | $7.37 | |||
| 17 | W10664385 | TRACK | $53.13 | |||
| 17A | W10664383 | TRACK | $55.26 | |||
| 18 | 2306117 | SLIDE | $222.85 | |||
| 18A | 2306116 | SLIDE | $247.07 | |||
| 19 | 488163 | SCREW | $0.00 | |||
| 20 | W10647421 | DIVIDER | $80.21 | |||
| 21 | W10600630 | SUPPORT | $111.48 | |||
| 21A | W10600626 | SUPPORT | $67.62 | |||
| 22 | W10672548 | SHIM | $13.92 | |||
| 23 | W10609678 | COVER | $24.70 | |||
| 24 | W10532983 | RAIL-EVAP | $79.59 | |||
| 25 | 488163 | SCREW | $0.00 | |||
| 26 | W10280386 | THERMISTOR | $75.69 | |||
| 27 | W10645968 | ICEMAKER | $190.20 | |||
| 28 | W10289690 | COVER-FRNT | $6.32 | |||
| 29 | W10889530 | ARM, SHUT OFF | $0.00 | |||
| 30 | 2304353 | EXTENSION | $63.78 | |||
| 31 | 2221231 | SHIELD | $71.44 | |||
| 32 | W10508673 | HARNS-WIRE | $95.52 | |||
| 27 | W11238143 | ICEMAKER | $190.20 | |||
| 29 | W11173300 | ARM-SHUT | $56.14 | |||
| 30 | W11112558 | EXTENSION | $63.78 |
*The price can change whitout warning
