Brand: Maytag
Model: JF42NXFXDE02 - REFRIGERATOR, FRENCH DOOR, BUILT-IN, BOTTOM MOUNT

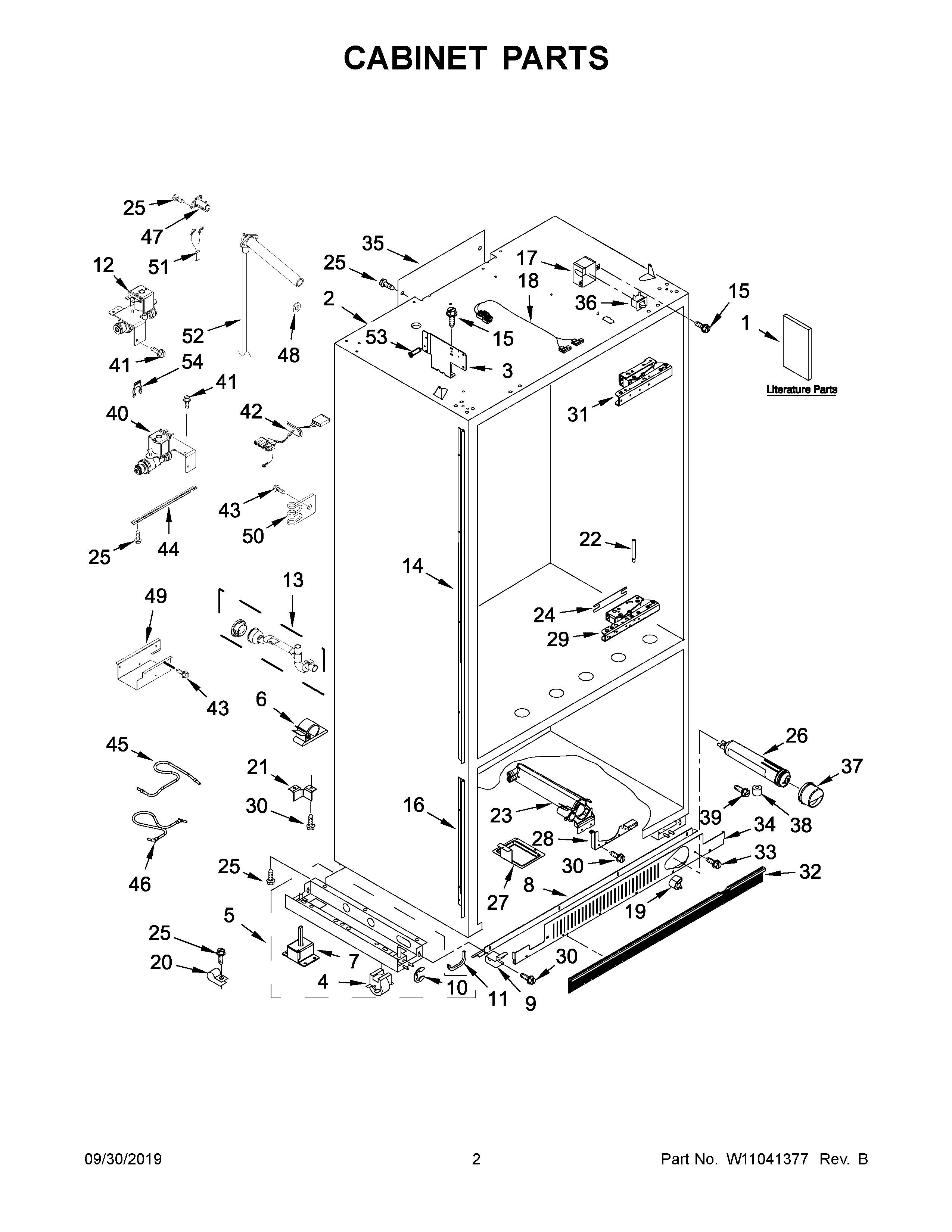

02 - CABINET PARTS
- 01 - COVER SHEET
- 02 - CABINET PARTS
- 03 - CABINET TRIM PARTS
- 04 - REFRIGERATOR LINER PARTS
- 05 - FREEZER LINER AND ICEMAKER PARTS
- 06 - SHELF PARTS
- 07 - REFRIGERATOR DOOR PARTS
- 08 - FREEZER DOOR AND BASKET PARTS
- 09 - TOP GRILLE AND UNIT COVER PARTS
- 10 - UPPER UNIT PARTS
- 11 - LOWER UNIT AND TUBE PARTS
- 12 - OPTIONAL PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10728796 | USE AND CARE GUIDE | $0.00 | |||
| 1A | W10605610 | ENERGY GUIDE | $0.00 | |||
| 1B | W10600683 | TECH SHEET (ENGLISH) | $0.00 | |||
| 1C | W10717764 | TECH SHEET (FRENCH) | $0.00 | |||
| 1D | W10735232 | INSTALLATION INSTRUCTIONS | $0.00 | |||
| 2 | N/P | CABINET (NOT A SERVICEABLE PART) | $0.00 | |||
| 3 | W10714143 | BRACKET | W11042558 | $67.80 | ||
| 3A | W10714146 | BRACKET | W11042559 | $67.80 | ||
| 4 | W10138054 | ROLLER-CAB | WPW10138054 | $34.87 | ||
| 5 | W10279275 | SUPPORT | W10860229 | $293.24 | ||
| 5A | W10138423 | SUPPORT | W10860448 | $288.76 | ||
| 6 | W10663352 | CLAMP-TUBE | $17.81 | |||
| 7 | 2005032 | LEVELER | $148.65 | |||
| 8 | W10606812 | TRIM-GRILL | $212.16 | |||
| 9 | 2307640 | BRACKET | W10839844 | $36.17 | ||
| 10 | 2006841 | RING-E | $71.25 | |||
| 11 | 2307584 | GROMMET | $17.15 | |||
| 12 | W10578757 | INLET VALVE | W11246413 | $153.66 | ||
| 13 | W10702350 | VALVE | W11291510 | $55.24 | ||
| 14 | W10687588 | TRIM-CABNT | $182.42 | |||
| 14A | W10687582 | TRIM-CABNT | $182.42 | |||
| 15 | 487415 | SCREW | WP965173 | $9.04 | ||
| 16 | W10714137 | TRIM-CABNT | $64.57 | |||
| 16A | W10687583 | TRIM-CABNT | $121.69 | |||
| 17 | W10167387 | COVER | $58.63 | |||
| 17A | W10167341 | COVER | $58.48 | |||
| 18 | W10740131 | WIRE-JUMPR | $94.08 | |||
| 19 | 2260503B | BUTTON | WP2260503B | $61.11 | ||
| 20 | 2221070 | CLAMP | W10833902 | $8.29 | ||
| 21 | 2006617 | BRACKET | $69.65 | |||
| 22 | W10234202 | PIN-HINGE | $66.35 | |||
| 23 | W10121140 | HOUSING | WPW10121140 | $209.27 | ||
| 24 | W10291661 | SHIM-HINGE | $13.55 | |||
| 25 | 486194 | SCREW | W11624204 | $11.19 | ||
| 26 | W10121146 | FILTER, WATER | EDR3RXD1 | $0.00 | ||
| 27 | 2318189 | PAN-DRIP | $113.74 | |||
| 28 | W10674648 | BRACKET | $15.27 | |||
| 29 | W10806865 | HINGE-DOOR | W10828686 | $324.21 | ||
| 30 | 8533928 | SCREW | WP8533928 | $6.50 | ||
| 31 | W10691145 | HINGE-DOOR | $306.62 | |||
| 31A | W10691136 | HINGE-DOOR | W11700299 | $362.19 | ||
| 32 | W10188549 | GRILLE | WPW10188549 | $102.76 | ||
| 33 | W10005050 | SCREW | WP489464 | $5.69 | ||
| 34 | W10189198 | GRILLE-FRT | W10861748 | $135.27 | ||
| 35 | 2215612 | COVER-DUCT | $76.61 | |||
| 36 | W10606838 | SWITCH | W11617993 | $29.43 | ||
| 37 | W10797527 | CAP,FILTER | W11238395 | $37.32 | ||
| 38 | 2005433 | SPACER | $20.32 | |||
| 39 | 9741232 | SCREW | WP9741232 | $6.32 | ||
| 40 | W10574769 | VALVE,INLET | W11225845 | $153.66 | ||
| 41 | 304392 | SCREW | WP489069 | $6.32 | ||
| 42 | W10565837 | HARNS-WIRE | $64.44 | |||
| 43 | W10001250 | SCREW | WP489464 | $5.69 | ||
| 44 | 2320559 | BRACKET | $71.01 | |||
| 45 | W10619899 | WATER TUBE | $37.51 | |||
| 46 | W10635851 | WATER TUBE | $64.72 | |||
| 47 | 2221240 | HEATER | WP2221240 | $149.16 | ||
| 48 | 1106508 | GASKET-SEAL | WP1106508 | $7.22 | ||
| 49 | W10619291 | SHIELD | $119.21 | |||
| 50 | 2208136 | CLAMP | WP488366 | $8.00 | ||
| 51 | W10482373 | WIRE-JUMPR | $95.52 | |||
| 52 | 2317847 | TUBE-WATER | $62.24 | |||
| NI | N/P | FOLLOWING PARTS NOT ILLUSTRATED | $0.00 | |||
| NI | W10613135 | KIT-INSTAL | W11175806 | $187.67 | ||
| NI | W10234156 | KIT-INSTAL | $13.74 | |||
| NI | W10488118 | INSTALLATION KIT | $91.70 | |||
| NI | W10744761 | KIT-INSTAL | $59.72 | |||
| 1A | W11113370 | ENERGY GUIDE | $0.00 | |||
| 1B | W10896706 | TECH SHEET (ENGLISH) | $0.00 | |||
| 1C | W10896708 | TECH SHEET (FRENCH) | $0.00 | |||
| 1D | W10906504 | WIRING DIAGRAM | $0.00 | |||
| 1E | W10735232 | INSTALLATION INSTRUCTIONS | $0.00 | |||
| 3 | W10756003 | BRACKET | W11042558 | $67.80 | ||
| 3A | W10756004 | BRACKET | W11042559 | $67.80 | ||
| 20 | M0108107 | CABLE CLAMP | W11456069 | $17.63 | ||
| 53 | W10121451 | INSERT | WPW10121451 | $6.81 | ||
| 54 | W10782424 | RING | $21.11 |
*The price can change whitout warning
