Brand: Maytag
Model: JF42NXFXDE02 - REFRIGERATOR, FRENCH DOOR, BUILT-IN, BOTTOM MOUNT

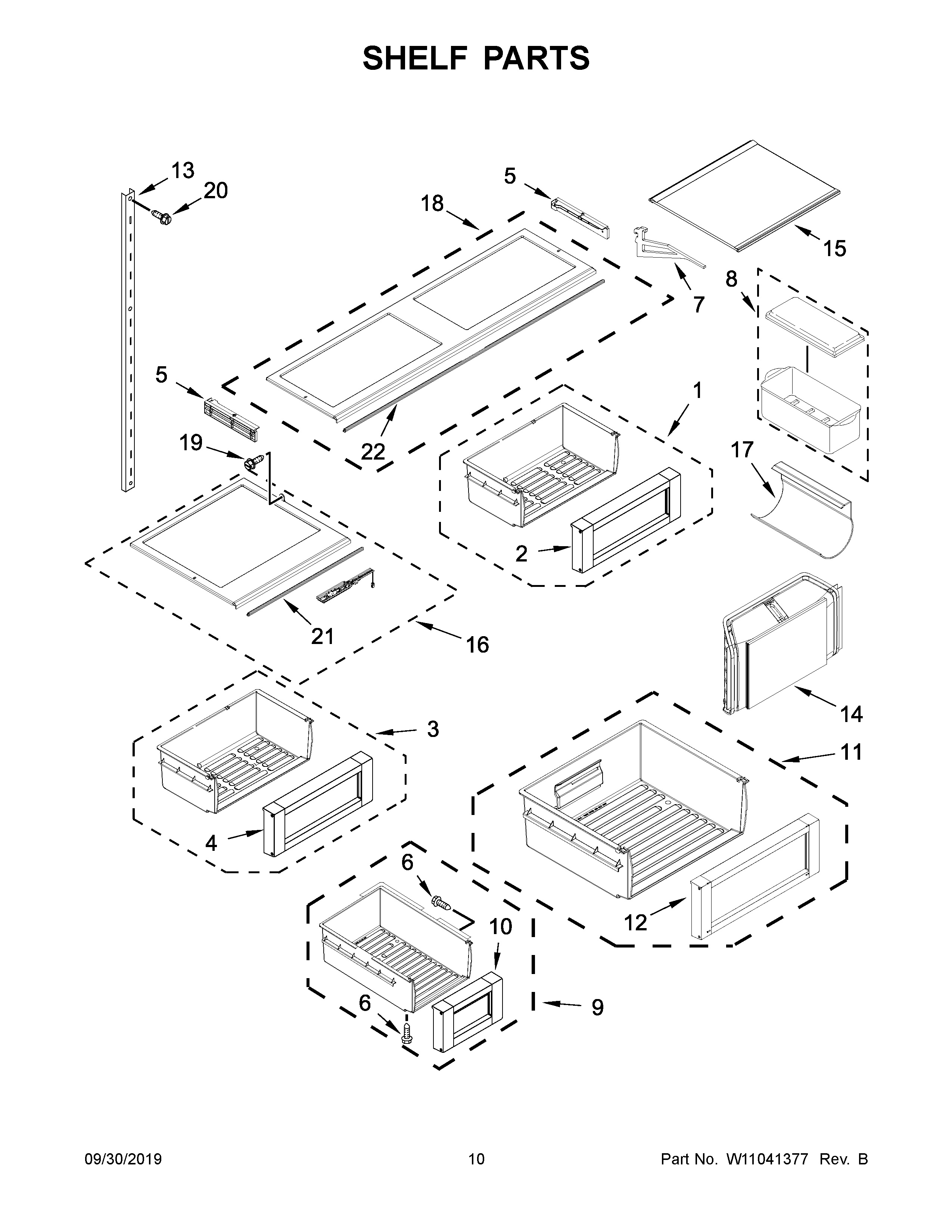

06 - SHELF PARTS
- 01 - COVER SHEET
- 02 - CABINET PARTS
- 03 - CABINET TRIM PARTS
- 04 - REFRIGERATOR LINER PARTS
- 05 - FREEZER LINER AND ICEMAKER PARTS
- 06 - SHELF PARTS
- 07 - REFRIGERATOR DOOR PARTS
- 08 - FREEZER DOOR AND BASKET PARTS
- 09 - TOP GRILLE AND UNIT COVER PARTS
- 10 - UPPER UNIT PARTS
- 11 - LOWER UNIT AND TUBE PARTS
- 12 - OPTIONAL PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10529501 | PAN-CRISPR | $328.51 | |||
| 2 | W10529479 | FRONT-PAN | $295.58 | |||
| 3 | W10529506 | CRISPER PAN | $238.82 | |||
| 4 | W10529487 | FRONT-PAN | $289.59 | |||
| 5 | W10569842 | SUPPORT | $63.92 | |||
| 5A | W10569839 | SUPPORT | $63.92 | |||
| 6 | 488886 | SCREW | WP488787 | $9.73 | ||
| 7 | W10605575 | SUPPORT | W11690161 | $36.20 | ||
| 8 | 2221071 | EGG-CONTNR | WP2221071A | $18.89 | ||
| 9 | W10626679 | PAN-ICE | $289.58 | |||
| 10 | W10626676 | FRONT-PAN | $235.10 | |||
| 11 | W10626681 | PAN-FRZR | $292.71 | |||
| 12 | W10626678 | FRONT-PAN | $299.73 | |||
| 13 | W10743255 | LADDER | $81.54 | |||
| 13A | W10743254 | LADDER | $81.54 | |||
| 13B | W10743230 | LADDER | $104.20 | |||
| 14 | W10593207 | PRO PRSERV | $31.48 | |||
| 15 | W10198701 | SHELF-GLAS | WPW10198701 | $172.86 | ||
| 16 | W10559654 | SHELF-GLAS | $299.79 | |||
| 16A | W10559655 | SHELF-GLAS | $281.49 | |||
| 17 | W10701859 | RACK-WINE | $17.53 | |||
| 18 | W10569917 | SHELF-GLAS | WPW10569917 | $253.38 | ||
| 19 | 488568 | SCREW | W10759522 | $5.03 | ||
| 20 | W10678207 | SCREW | $13.34 | |||
| 14 | W10826105 | PRESERVER | W11462816 | $16.79 | ||
| 19 | 8533928 | SCREW | WP8533928 | $6.50 | ||
| 20 | W10832438 | SCREW | W10678207 | $13.34 | ||
| 21 | W10709358 | GASKET-PAN | $104.41 | |||
| 22 | W10709357 | GASKET-PAN | $104.41 |
*The price can change whitout warning
