Brand: Maytag
Model: JF42NXFXDE02 - REFRIGERATOR, FRENCH DOOR, BUILT-IN, BOTTOM MOUNT

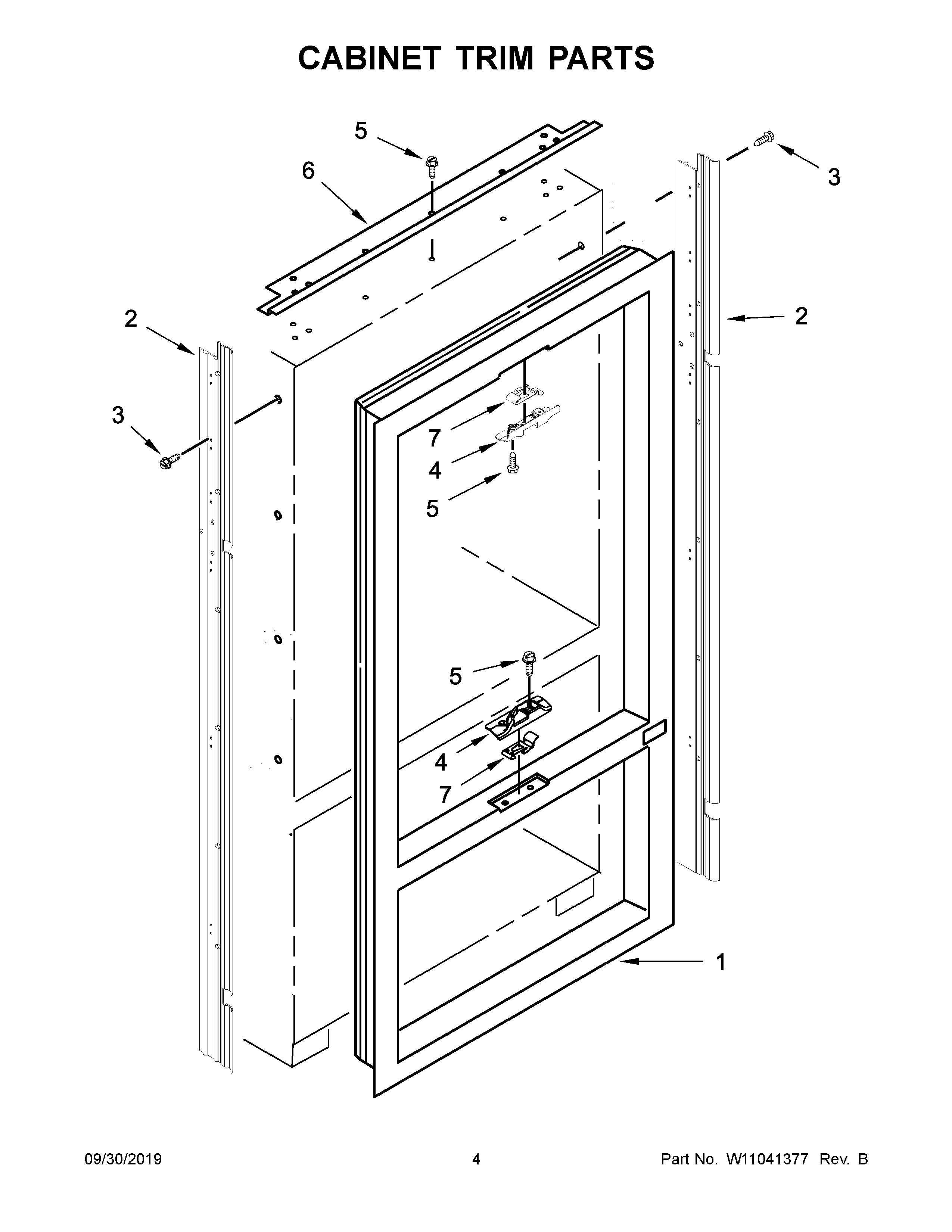

03 - CABINET TRIM PARTS
- 01 - COVER SHEET
- 02 - CABINET PARTS
- 03 - CABINET TRIM PARTS
- 04 - REFRIGERATOR LINER PARTS
- 05 - FREEZER LINER AND ICEMAKER PARTS
- 06 - SHELF PARTS
- 07 - REFRIGERATOR DOOR PARTS
- 08 - FREEZER DOOR AND BASKET PARTS
- 09 - TOP GRILLE AND UNIT COVER PARTS
- 10 - UPPER UNIT PARTS
- 11 - LOWER UNIT AND TUBE PARTS
- 12 - OPTIONAL PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | N/P | BREAKER, TRIM (NOT SERVICED) | $0.00 | |||
| 2 | W10714136 | TRIM,DOOR | $270.86 | |||
| 2A | W10714135 | TRIM-DOOR | $270.86 | |||
| 3 | W10141645 | SCREW | WPW10141645 | $6.28 | ||
| 4 | W10672299 | SLIDE | $56.55 | |||
| 4A | W10672301 | SLIDE | $56.55 | |||
| 5 | 486194 | SCREW | W11624204 | $11.19 | ||
| 6 | W10605547 | SWITCH | W11623171 | $101.77 | ||
| 7 | 2309230 | CLIP | $14.41 | |||
| 7A | 2309231 | CLIP | $41.43 | |||
| 8 | W10121451 | INSERT | WPW10121451 | $6.81 | ||
| 9 | 2005925 | SEAL, SIDE TRIM | $0.00 | |||
| 2 | W10714136 | TRIM,DOOR | $270.86 | |||
| 2A | W10714135 | TRIM-DOOR | $270.86 |
*The price can change whitout warning
