Brand: Maytag
Model: JF42NXFXDE02 - REFRIGERATOR, FRENCH DOOR, BUILT-IN, BOTTOM MOUNT

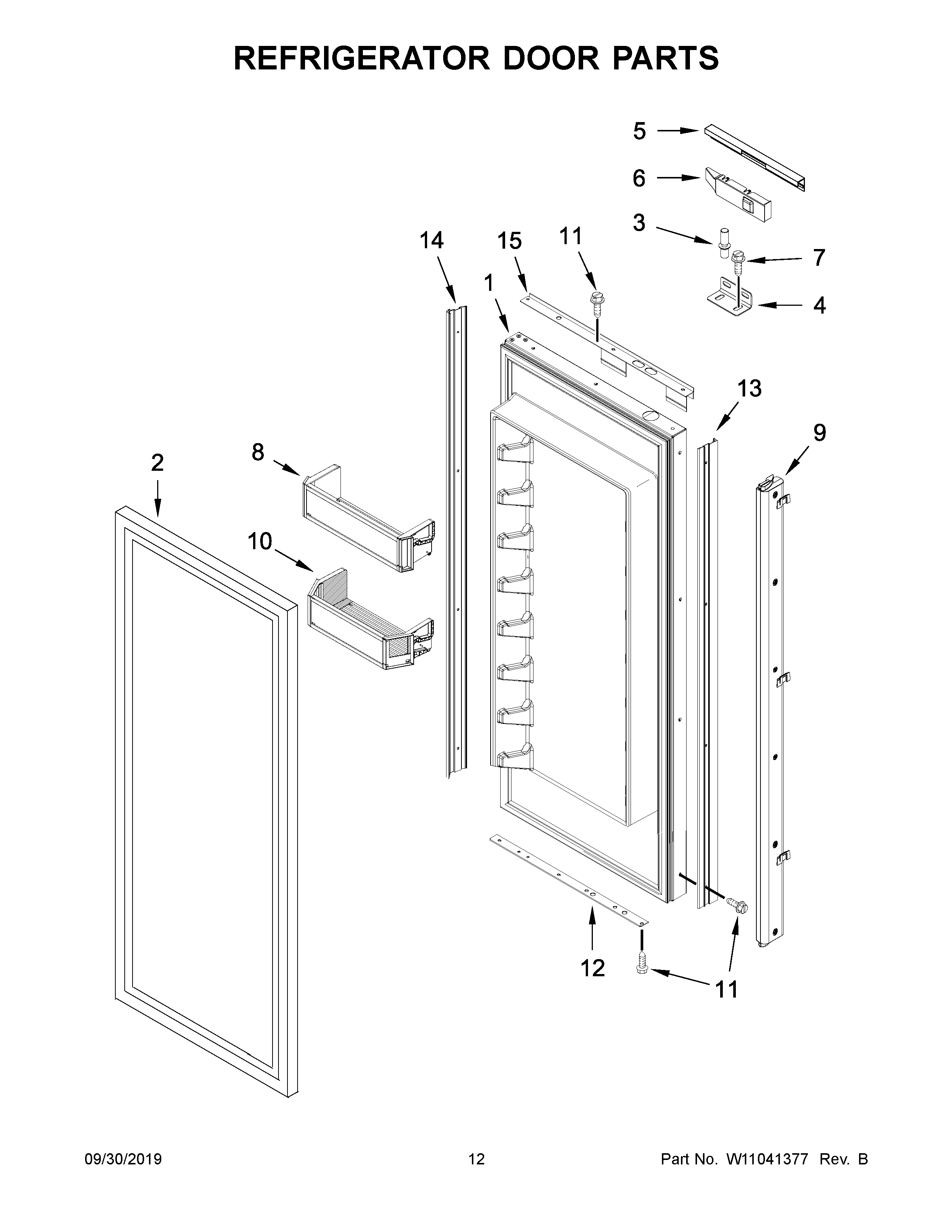

07 - REFRIGERATOR DOOR PARTS
- 01 - COVER SHEET
- 02 - CABINET PARTS
- 03 - CABINET TRIM PARTS
- 04 - REFRIGERATOR LINER PARTS
- 05 - FREEZER LINER AND ICEMAKER PARTS
- 06 - SHELF PARTS
- 07 - REFRIGERATOR DOOR PARTS
- 08 - FREEZER DOOR AND BASKET PARTS
- 09 - TOP GRILLE AND UNIT COVER PARTS
- 10 - UPPER UNIT PARTS
- 11 - LOWER UNIT AND TUBE PARTS
- 12 - OPTIONAL PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10796467 | DOR-FIP | W10854243 | $909.38 | ||
| 1A | W10605556 | DOOR-FIP | W10782269 | $1140.63 | ||
| 2 | W10606752 | GASKET-FIP | W11674371 | $204.29 | ||
| 3 | W10234194 | HINGE PIN | $15.20 | |||
| 4 | W10606841 | BRACKET | $27.15 | |||
| 5 | W10606808 | TRIM-COVER | $192.18 | |||
| 5A | W10726562 | TRIM-COVER | $120.06 | |||
| 6 | W10606813 | COVER | $24.52 | |||
| 6A | W10606814 | COVER | $22.59 | |||
| 7 | W10142233 | SCREW | WPW10142233 | $6.58 | ||
| 8 | W10529452 | BIN,CANTILEVER | $297.67 | |||
| 9 | W10732109 | RAIL-MULLION | W11590869 | $98.06 | ||
| 10 | W10525435 | BIN-CNTLVR | $222.11 | |||
| 11 | 8281252 | SCREW | W10851443 | $6.65 | ||
| 12 | W10606805 | TRIM-DOOR | $162.89 | |||
| 12A | W10606801 | TRIM-DOOR | $162.89 | |||
| 13 | W10606806 | TRIM-DOOR | $211.95 | |||
| 13A | W10606802 | TRIM-DOOR | $79.69 | |||
| 14 | W10606803 | TRIM-DOOR | $73.36 | |||
| 15 | W10651648 | TRIM-DOOR | $226.16 | |||
| 15A | W10606800 | TRIM-DOOR | $226.16 | |||
| NI | N/P | FOLLOWING PARTS NOT ILLUSTRATED | $0.00 | |||
| NI | W10772221 | MAT | $90.82 |
*The price can change whitout warning
