Brand: Maytag
Model: GDE7800 - ELECTRIC DRYER

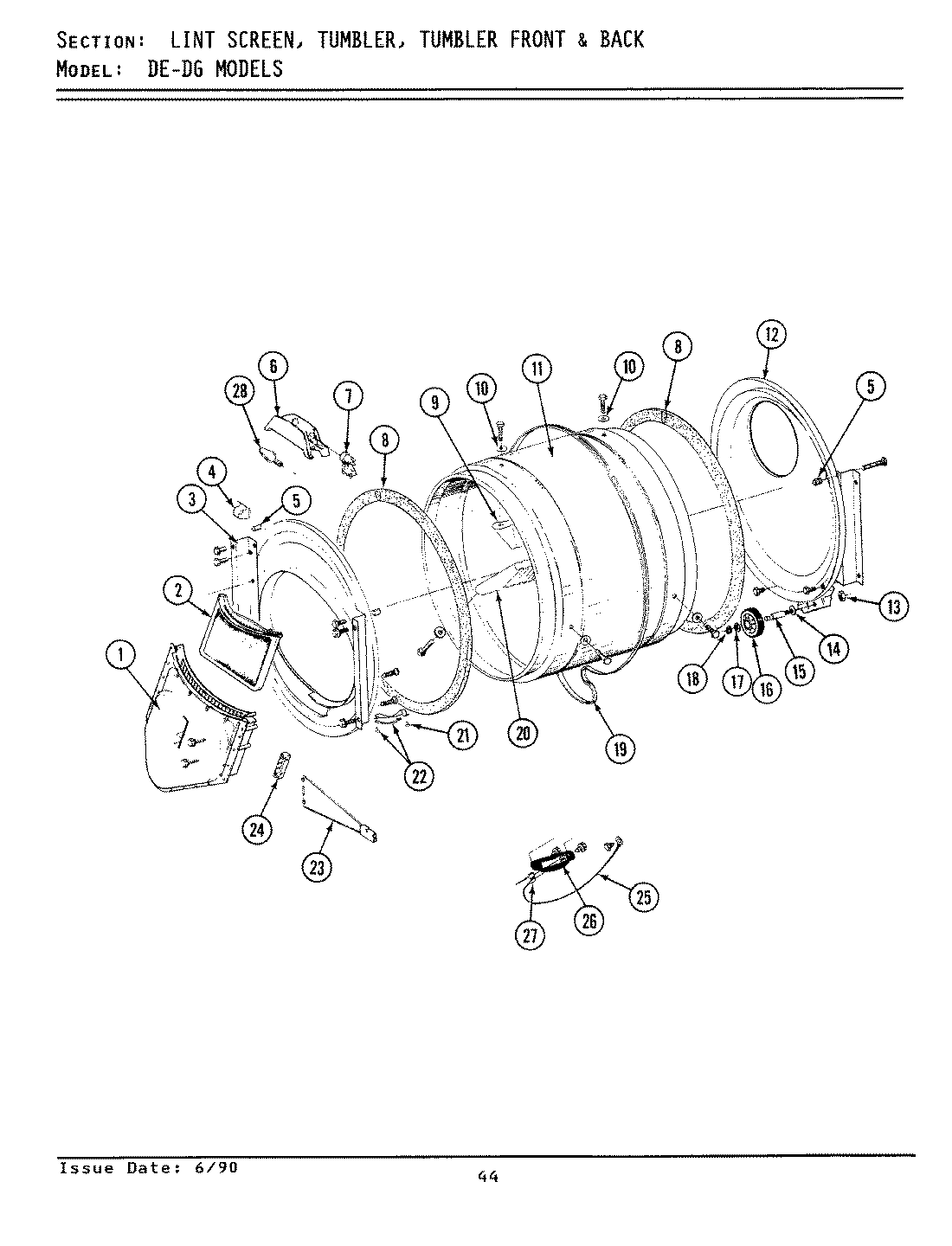

07 - LINT SCREEN, TUMBLER (FRONT & BACK)
- 01 - CONTROL PANEL
- 02 - FRONT PANEL & DOOR ASSEMBLY
- 03 - FRONT VIEW
- 04 - FREEZER INNER DOOR
- 04 - INLET DUCT & HEATER ASSEMBLY
- 05 - INLET DUCT & HEATER ASSEMBLY (SERIES A3)
- 06 - INSTALLATION ACCESSORIES
- 07 - LINT SCREEN, TUMBLER (FRONT & BACK)
- 08 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS
- 09 - REAR VIEW
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | Y307112 | DUCT, OUTLET ASSY. | $0.00 | |||
| 1 | Y314110 | SCREW | WP33002917 | $5.63 | ||
| 2 | Y307107 | LINT FILTER | $0.00 | |||
| 3 | Y310632 | SCREW | $6.43 | |||
| 3 | 307109 | FRONT, TUMBLER (W/SEAL) | $0.00 | |||
| 3 | Y313561 | SCREW | WPY313561 | $5.09 | ||
| 3 | 313764 | SCREW | $0.00 | |||
| 4 | Y310376 | CLIP, WIRE HARNESS | $0.00 | |||
| 5 | 313915 | COVER, THREAD | 65004704 | $0.00 | ||
| 8 | 314820 | FELT | WP314820, WG02L06813 | $27.68 | ||
| 9 | Y310759 | SCREW | WPY310759 | $5.91 | ||
| 9 | 314803 | BAFFLE (SHORT) | $0.00 | |||
| 10 | 314158 | WASHER | $0.00 | |||
| 11 | 314802 | TUMBLER W/OUT BAFFLES | $0.00 | |||
| 11 | 306663 | TUMBLER W/BAFFLES | $0.00 | |||
| 12 | Y307114 | BACK, TUMBLER (W/SEAL) | $0.00 | |||
| 12 | 211294 | SCREW | WP90767 | $6.30 | ||
| 13 | 312538 | NUT,HEXAGONE | WP33001443 | $5.97 | ||
| 14 | Y313347 | WASHER | WP312535 | $8.88 | ||
| 15 | Y312948 | ROLLER SHAFT | WP6-3129480 | $8.42 | ||
| 16 | Y303373 | MAYTAG DRUM ROLLER | 12001541 | $22.12 | ||
| 17 | 312535 | WASHER | WP312535 | $8.88 | ||
| 18 | 410233 | RING-RETAINER | WP9703438 | $3.20 | ||
| 19 | Y312959 | DRYER BELT 100" | WPY312959 | $25.54 | ||
| 20 | Y310759 | SCREW | WPY310759 | $5.91 | ||
| 20 | 314804 | BAFFLE TALL | 33001004 | $112.31 | ||
| 21 | 210720 | RIVET | WP210720 | $12.81 | ||
| 22 | 306508 | GLIDE KIT - TUMBLER | $17.62 | |||
| 27 | Y312658 | RECEPTACLE, SENSOR GROUND WIRE | $0.00 |
*The price can change whitout warning
