Brand: Maytag
Model: GDE7800 - ELECTRIC DRYER

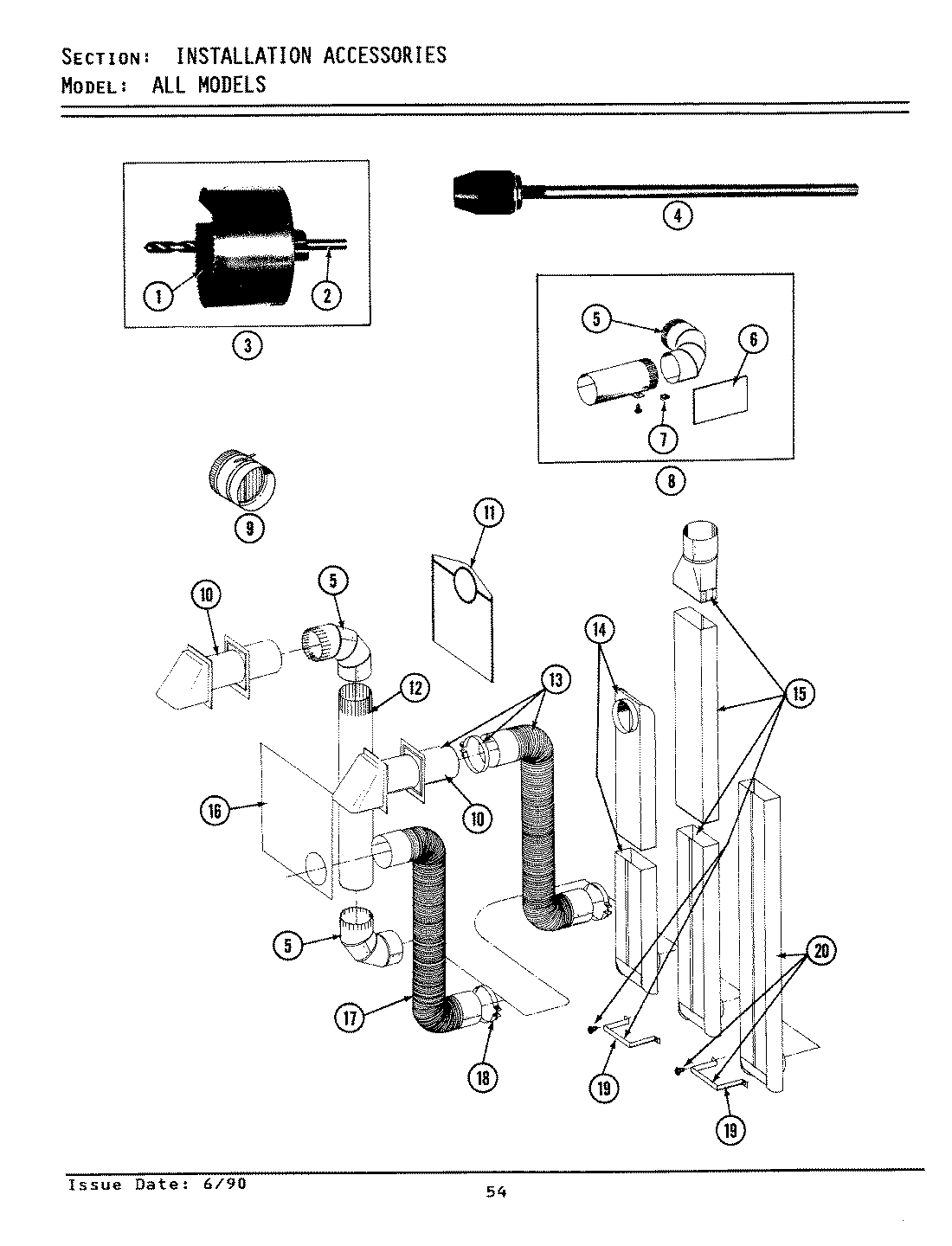

06 - INSTALLATION ACCESSORIES
- 01 - CONTROL PANEL
- 02 - FRONT PANEL & DOOR ASSEMBLY
- 03 - FRONT VIEW
- 04 - FREEZER INNER DOOR
- 04 - INLET DUCT & HEATER ASSEMBLY
- 05 - INLET DUCT & HEATER ASSEMBLY (SERIES A3)
- 06 - INSTALLATION ACCESSORIES
- 07 - LINT SCREEN, TUMBLER (FRONT & BACK)
- 08 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS
- 09 - REAR VIEW
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 038179 | BLADE, SAW | $0.00 | |||
| 2 | 038180 | REPLACEMENT DRILL | $0.00 | |||
| 3 | 038766 | HOLE SAW W/DRILL BIT | $0.00 | |||
| 4 | 038767 | EXTENSION CHUCK, DRILL | $0.00 | |||
| 5 | Y059131 | ELBOW, VENTING (4``) | $0.00 | |||
| 6 | 312302 | INSULATION, EXHAUST DUCT KIT | $0.00 | |||
| 7 | 213323 | FASTENER, EXHAUST DUCT KIT | $0.00 | |||
| 8 | Y304652 | EXHAUST DUCT KIT | $0.00 | |||
| 8 | 211294 | SCREW | WP90767 | $6.30 | ||
| 9 | 059146 | DAMPER, BACK DRAFT | $0.00 | |||
| 10 | Y059129 | VENT HOOD | 4396007RW | $20.99 | ||
| 11 | 311353 | FILTER | $30.44 | |||
| 12 | Y059130 | PIPE, VENTING | $0.00 | |||
| 13 | Y059143 | FLEXIBLE VENT KIT | $0.00 | |||
| 14 | Y059135 | VENT DUCT ASSY. | $0.00 | |||
| 15 | 059144 | RECTANGULAR VENT KIT | $0.00 | |||
| 16 | Y059134 | PLATE, ALUM. WINDOW (15``X20``) | $0.00 | |||
| 17 | Y304353 | 6FT SCVENT | 4396010RP | $31.49 | ||
| 18 | Y304630 | CLAMP, FLEXIBLE DUCT | $0.00 | |||
| 19 | 313272 | BRACKET, EXHAUST DEFLECTOR | $0.00 | |||
| 19 | 211294 | SCREW | WP90767 | $6.30 | ||
| 20 | 303736 | EXHAUST DEFLECTOR KIT | $0.00 |
*The price can change whitout warning
