Brand: Maytag
Model: GDE7800 - ELECTRIC DRYER

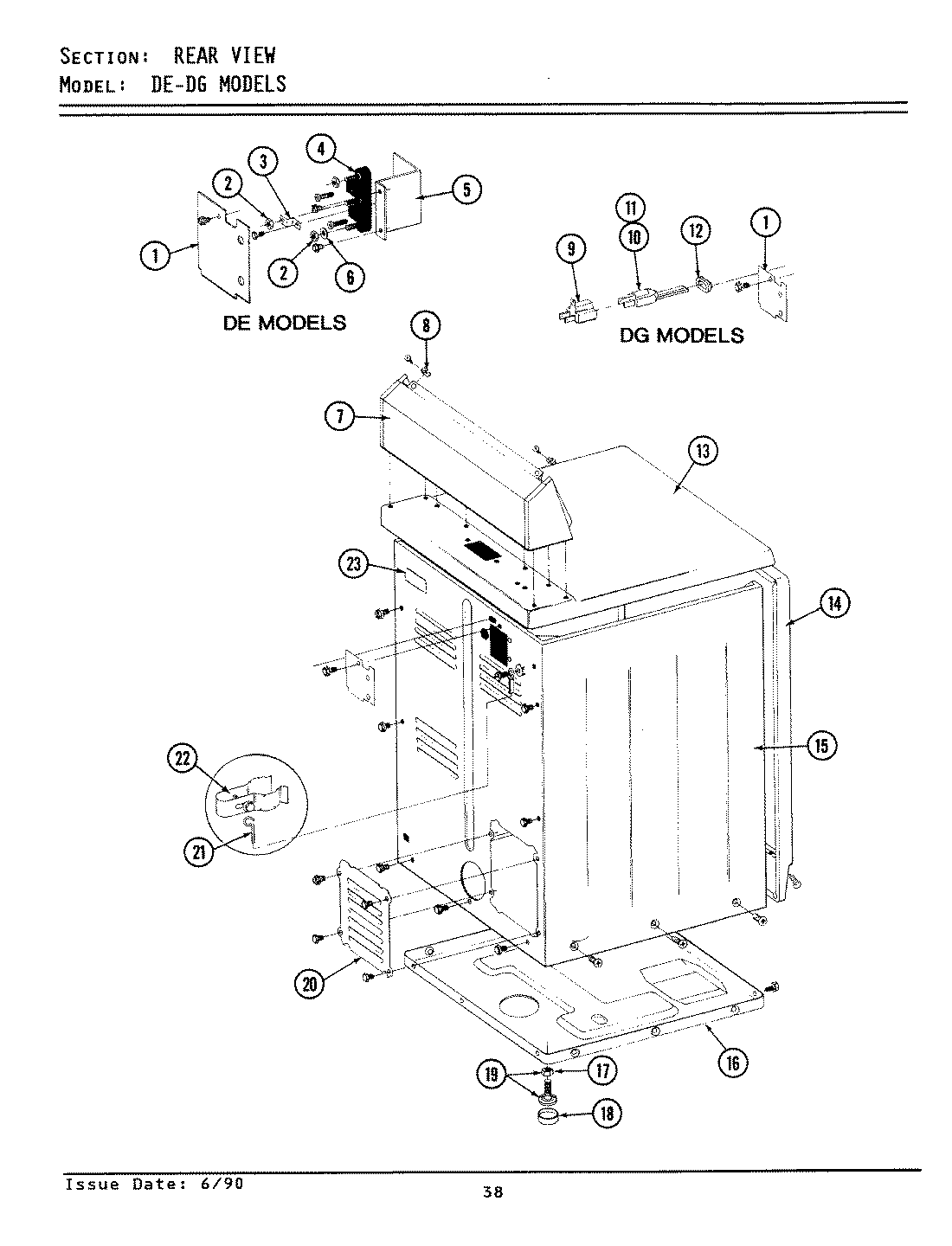

09 - REAR VIEW
- 01 - CONTROL PANEL
- 02 - FRONT PANEL & DOOR ASSEMBLY
- 03 - FRONT VIEW
- 04 - FREEZER INNER DOOR
- 04 - INLET DUCT & HEATER ASSEMBLY
- 05 - INLET DUCT & HEATER ASSEMBLY (SERIES A3)
- 06 - INSTALLATION ACCESSORIES
- 07 - LINT SCREEN, TUMBLER (FRONT & BACK)
- 08 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS
- 09 - REAR VIEW
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | Y312905 | COVER, TERMINAL | $0.00 | |||
| 1 | Y313561 | SCREW | WPY313561 | $5.09 | ||
| 2 | 311484 | NUT | WP112432 | $6.32 | ||
| 3 | Y311423 | SCREW | WP489483 | $9.37 | ||
| 3 | Y312184 | STRAP, GROUND | $0.00 | |||
| 4 | Y312209 | SCREW | W11164114 | $3.20 | ||
| 4 | 400008 | BLOCK, TERMINAL | $0.00 | |||
| 5 | Y312904 | BRACKET, TERMINAL BLOCK | $0.00 | |||
| 5 | Y313561 | SCREW | WPY313561 | $5.09 | ||
| 5 | Y310632 | SCREW | $6.43 | |||
| 6 | Y311270 | BLOCK | WPY311270 | $8.41 | ||
| 7 | 305193M | CONSOLE-HARVEST WHEAT | $0.00 | |||
| 8 | 215075 | FASTENER,CNTRL PNL TO CONSOLE | $0.00 | |||
| 11 | 305168 | CORD, POWER (CANADA) | $0.00 | |||
| 13 | 307104M | TOP COVER ASSY | $0.00 | |||
| 14 | 308000M | FRONT PANEL ASSY | $0.00 | |||
| 15 | Y310632 | SCREW | $6.43 | |||
| 15 | Y313561 | SCREW | WPY313561 | $5.09 | ||
| 15 | 307124M | CABINET ASSY HVT WHEAT | $0.00 | |||
| 16 | Y303361 | BASE ASSY. | $0.00 | |||
| 17 | Y052740 | NUT | WP62739 | $5.68 | ||
| 18 | Y314137 | PAD | WPY314137 | $15.14 | ||
| 19 | Y305086 | ADJUSTABLE LEG & NUT | WPY305086, W10176519 | $0.00 | ||
| 20 | Y312951 | COVER, ACCESS | $0.00 | |||
| 20 | 211294 | SCREW | WP90767 | $6.30 | ||
| 20 | Y313559 | SCREW | WP90767 | $6.30 |
*The price can change whitout warning
