Brand: Maytag
Model: GDE7800 - ELECTRIC DRYER

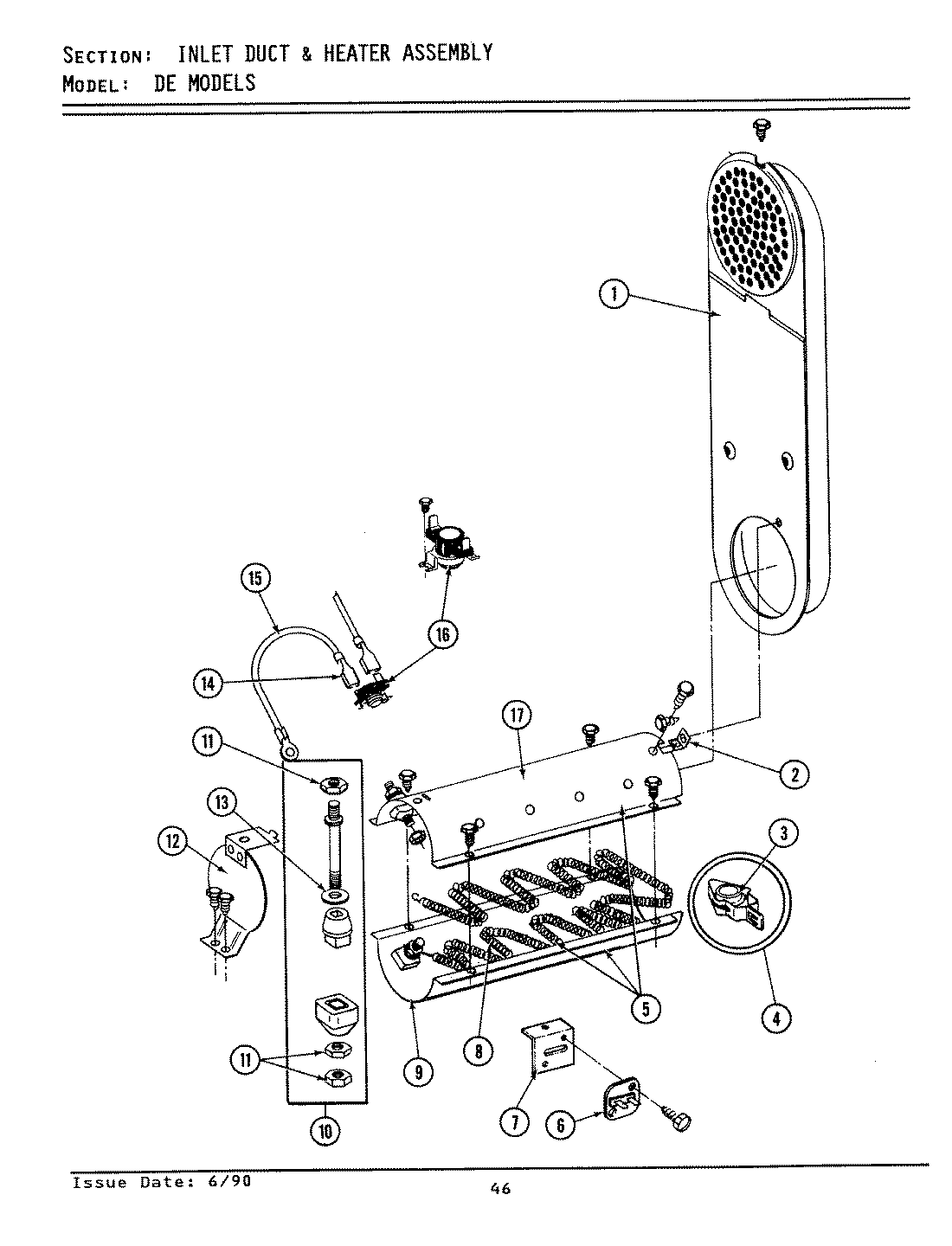

04 - INLET DUCT & HEATER ASSEMBLY
- 01 - CONTROL PANEL
- 02 - FRONT PANEL & DOOR ASSEMBLY
- 03 - FRONT VIEW
- 04 - FREEZER INNER DOOR
- 04 - INLET DUCT & HEATER ASSEMBLY
- 05 - INLET DUCT & HEATER ASSEMBLY (SERIES A3)
- 06 - INSTALLATION ACCESSORIES
- 07 - LINT SCREEN, TUMBLER (FRONT & BACK)
- 08 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS
- 09 - REAR VIEW
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 211294 | SCREW | WP90767 | $6.30 | ||
| 1 | 307120 | INLET DUCT ASSY. | $0.00 | |||
| 2 | 211294 | SCREW | WP90767 | $6.30 | ||
| 2 | Y312890 | RETAINER, HEATER CHAMBER | $0.00 | |||
| 3 | Y313270 | INSULATOR FOR HEATER ELEMEN | $0.00 | |||
| 4 | Y303881 | CLIP & INSULATOR | WPY303881 | $18.56 | ||
| 5 | 211294 | SCREW | WP90767 | $6.30 | ||
| 5 | Y303778 | HEATER ASSEMBLY COMPLETE | $0.00 | |||
| 6 | 307473 | THERMAL FUSE L240 | WP307473 | $46.84 | ||
| 6 | 314848 | SCREW | WP90767 | $6.30 | ||
| 7 | 315046 | MOUNTING BRACKET | $0.00 | |||
| 7 | 211294 | SCREW | WP90767 | $6.30 | ||
| 8 | Y313538 | MAYTAG DRYER COIL | WPY313538 | $56.91 | ||
| 9 | Y313576 | HEATER CHAMBER, BOTTOM | $0.00 | |||
| 10 | Y304596 | INSULATOR | $18.00 | |||
| 11 | 311484 | NUT | WP112432 | $6.32 | ||
| 12 | 211294 | SCREW | WP90767 | $6.30 | ||
| 12 | 304124 | HEATER SHIELD | $0.00 | |||
| 13 | 311093 | WASHER- 7 | WP311093 | $5.09 | ||
| 14 | 210745 | WIRE TERMINAL | $0.00 | |||
| 15 | Y304693 | JUMPER WIRE | WPY304693 | $4.61 | ||
| 16 | 303396 | THERMOSTAT | WP303396 | $35.68 | ||
| 16 | 211294 | SCREW | WP90767 | $6.30 | ||
| 16 | 303896 | THERMOSTAT (L200) | WP303896 | $70.17 | ||
| 17 | 211294 | SCREW | WP90767 | $6.30 | ||
| 17 | Y313575 | HEATER CHAMBER, TOP | $0.00 |
*The price can change whitout warning
