Brand: Maytag
Model: GDE7800 - ELECTRIC DRYER

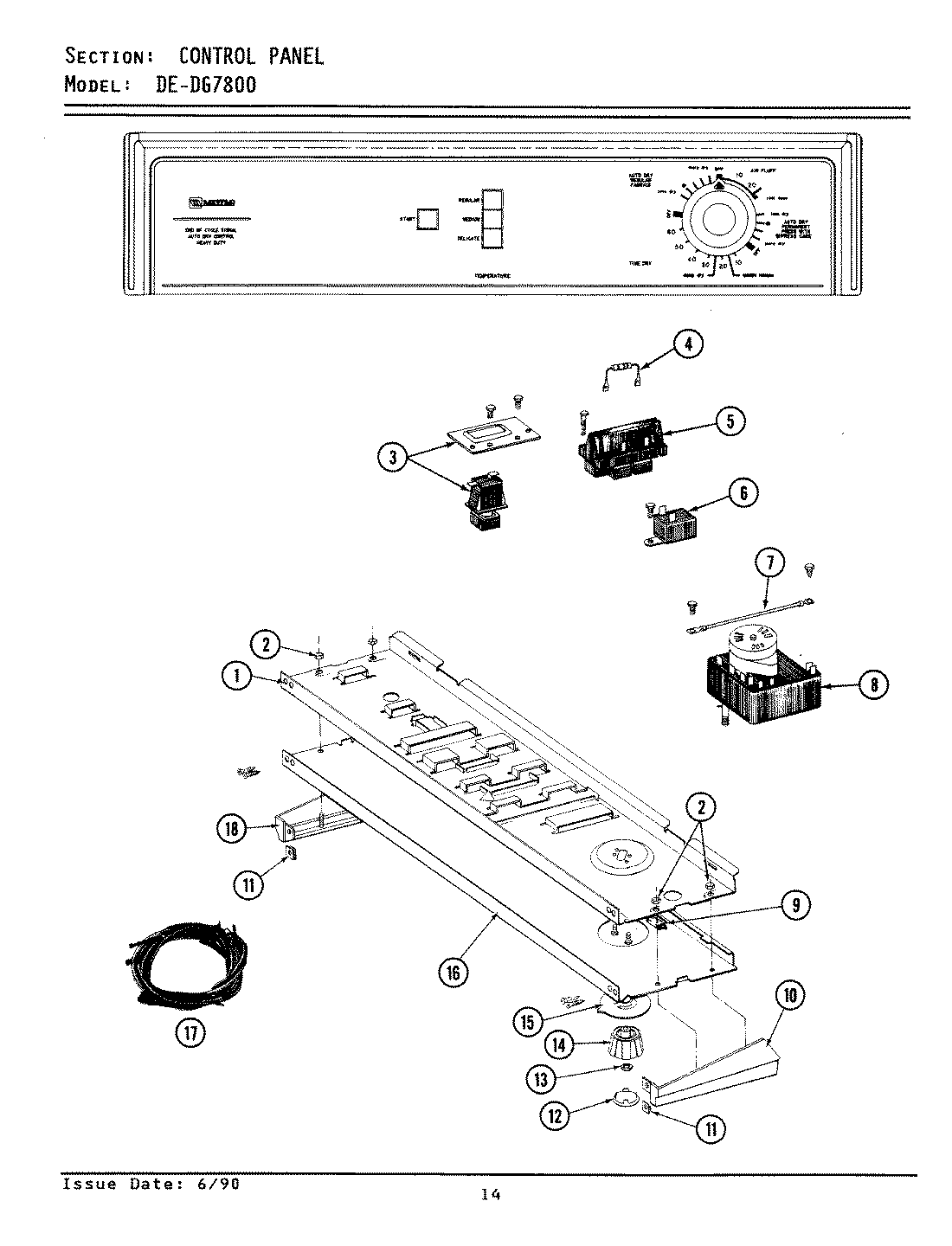

01 - CONTROL PANEL
- 01 - CONTROL PANEL
- 02 - FRONT PANEL & DOOR ASSEMBLY
- 03 - FRONT VIEW
- 04 - FREEZER INNER DOOR
- 04 - INLET DUCT & HEATER ASSEMBLY
- 05 - INLET DUCT & HEATER ASSEMBLY (SERIES A3)
- 06 - INSTALLATION ACCESSORIES
- 07 - LINT SCREEN, TUMBLER (FRONT & BACK)
- 08 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS
- 09 - REAR VIEW
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 314184 | BACK UP PLATE | $0.00 | |||
| 2 | 214872 | PALNUT, END CAP | $0.00 | |||
| 3 | 211168 | SCREW | WPW10139210 | $5.09 | ||
| 3 | 307305 | SWITCH PUSH TO START | $0.00 | |||
| 4 | 306916 | RESISTOR, MED TEMP ELEC | $0.00 | |||
| 5 | 213117 | SCREW | WP67006908 | $6.46 | ||
| 5 | 307304 | TEMP CONTROL SWITCH 3 BUTTON | $0.00 | |||
| 6 | 305205 | BUZZER | WP694419 | $103.57 | ||
| 6 | 211168 | SCREW | WPW10139210 | $5.09 | ||
| 7 | 211294 | SCREW | WP90767 | $6.30 | ||
| 7 | 204807 | GRND.WIRE,SUPP.PLTE TO TOP CVR | $0.00 | |||
| 8 | 306040 | TIMER | WP306040 | $280.48 | ||
| 8 | 910708 | SCREW | WP488234 | $6.30 | ||
| 9 | 214897 | PAD, CONTROL PANEL | $0.00 | |||
| 10 | 210932 | SCREW, No.8 X 9/16 CTSK | $0.00 | |||
| 10 | 207216 | END CAP RH | $0.00 | |||
| 11 | 214894 | FASTENER, END CAP | $0.00 | |||
| 12 | 215821 | CAP, KNOB | $0.00 | |||
| 13 | 312273 | NUT | W10155650 | $12.22 | ||
| 14 | 315041 | KNOB, TIMER | $0.00 | |||
| 15 | 315042 | DIAL SKIRT | $0.00 | |||
| 16 | 307319 | CONTROL PANEL | $0.00 | |||
| 17 | 307251 | WIRE HARNESS | $0.00 | |||
| 17 | 307344 | WIRE HARNESS | $0.00 | |||
| 18 | 207215 | END CAP LH | $0.00 |
*The price can change whitout warning
