Brand: Maytag
Model: FA4160 - WASHER

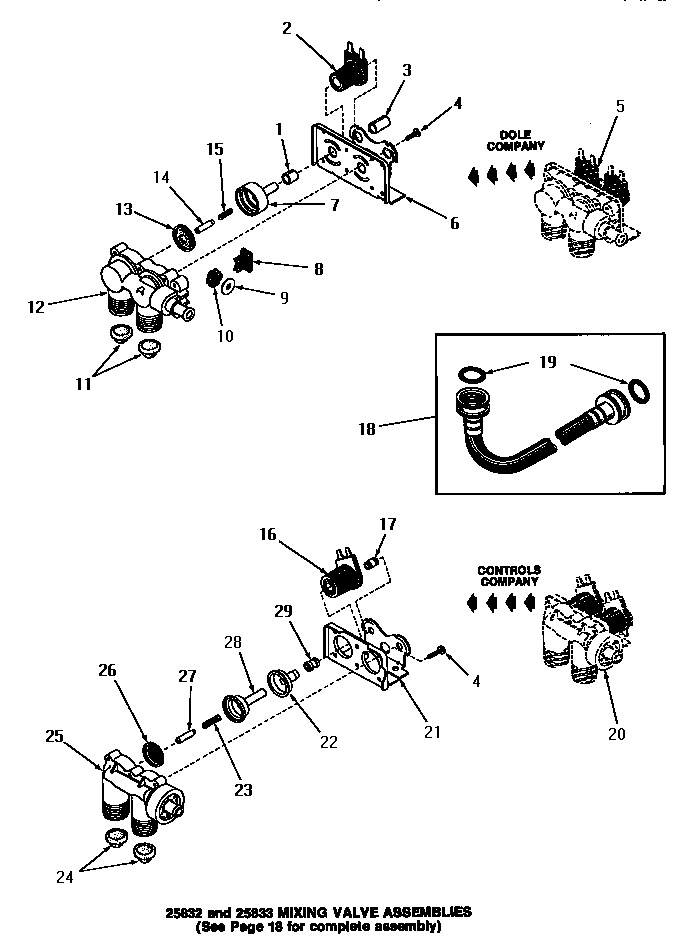

01 - 25832 & 25833 MIXING VALVE ASSEMBLIES
- 01 - 25832 & 25833 MIXING VALVE ASSEMBLIES
- 01 - BODY
- 01 - COVER SHEET
- 02 - ACCESSORIES
- 03 - DOOR PARTS
- 03 - INNER TUB
- 04 - 8318272 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)
- 04 - AGITATOR, SHAFT & FABRIC SOFTENER DISP
- 04 - MOTOR AND CONTROL UNIT PARTS
- 06 - BOOT, CHASSIS & DRAIN TUB
- 06 - LINT SCREEN, TUMBLER (FRONT & BACK)
- 07 - CABINET TOP & LOADING DOOR
- 07 - WIRING DIAGRAM
- 11 - DOOR SAFETY SWITCH
- 11 - SHELVES & ACCESSORIES
- 12 - DRAIN
- 14 - MIXING VALVE ASSY
- 15 - MOTOR, FLUID DRIVE & PUMP BELT
- 16 - PANELS
- 19 - PUMP ASSY
- 20 - TRANSMISSION ASSY
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 24129 | SLEEVE,SHORT | $0.00 | |||
| 2 | 24126 | SOLENOID | $0.00 | |||
| 3 | 24128 | SLEEVE,LONG | $0.00 | |||
| 4 | 25817C | SCREW | $0.00 | |||
| 5 | Y00000000 | SEE NOTE MIXING VALVE ASSEMBLY | $0.00 | |||
| 6 | Y24127 | MOUNTING BRACKET | $0.00 | |||
| 7 | 24130 | GUIDE,ARMATURE | $0.00 | |||
| 8 | Y24135 | PLUG,FLOW REGULATOR | $0.00 | |||
| 9 | 23224G | DIFFUSER | $0.00 | |||
| 10 | 23224C | REGULATOR,FLOW | $0.00 | |||
| 11 | 24122 | STRAINER- | WP22002960 | $5.83 | ||
| 12 | 24125 | BODY,VALVE | $0.00 | |||
| 13 | 24134 | DIAPHRAGM | $0.00 | |||
| 14 | 24132 | ARMATURE | $0.00 | |||
| 15 | 24131 | SPRING | $0.00 | |||
| 16 | 24596A | SOLENOID | $0.00 | |||
| 17 | 25817M | SOLENOID PLUG | $0.00 | |||
| 18 | 20241 | INLET HOSE, 4 FEET | $0.00 | |||
| 19 | 20290 | WASHER, 19/32 IDX1.031 | $0.00 | |||
| 20 | Y00000000 | SEE NOTE MIXING VALVE ASSEMBLY | $0.00 | |||
| 21 | 25817B | MOUNTING BRACKET | $0.00 | |||
| 22 | 25817E | SLEEVE,GUIDE xREPLACE | $0.00 | |||
| 23 | 25817G | SPRING | $0.00 | |||
| 24 | 24122 | STRAINER- | WP22002960 | $5.83 | ||
| 25 | 24123 | VALVE BODY | $0.00 | |||
| 26 | 25817K | DIAPHRAGM | $0.00 | |||
| 27 | 25817H | ARMATURE | $0.00 | |||
| 28 | 25817F | ARMATURE GUIDE | $0.00 | |||
| 29 | 25817D | SLEEVE ADAPTER | $0.00 |
*The price can change whitout warning
