Brand: Maytag
Model: FA4160 - WASHER

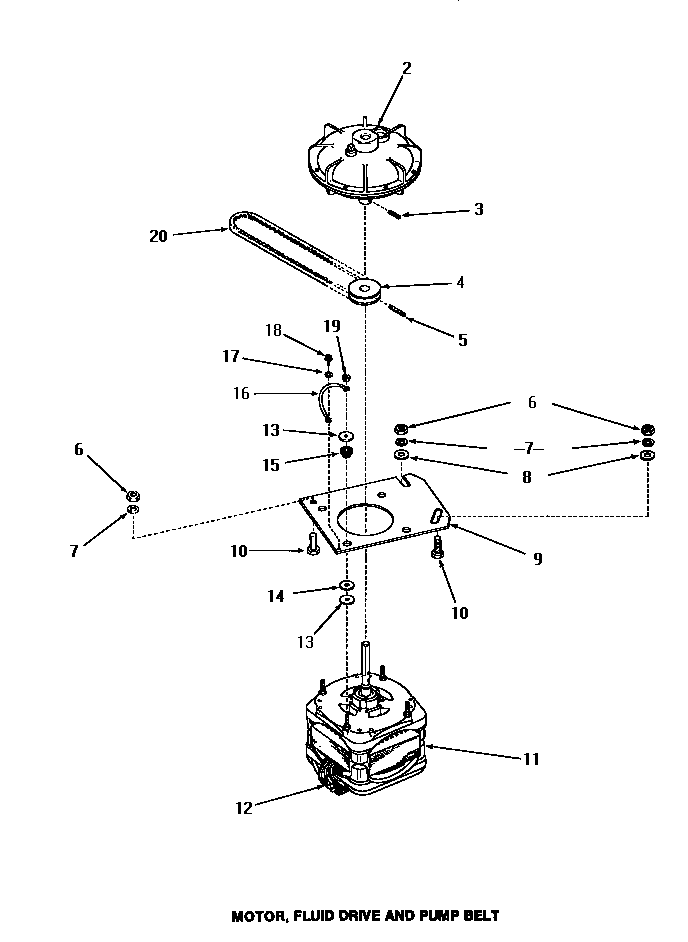

15 - MOTOR, FLUID DRIVE & PUMP BELT
- 01 - 25832 & 25833 MIXING VALVE ASSEMBLIES
- 01 - BODY
- 01 - COVER SHEET
- 02 - ACCESSORIES
- 03 - DOOR PARTS
- 03 - INNER TUB
- 04 - 8318272 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)
- 04 - AGITATOR, SHAFT & FABRIC SOFTENER DISP
- 04 - MOTOR AND CONTROL UNIT PARTS
- 06 - BOOT, CHASSIS & DRAIN TUB
- 06 - LINT SCREEN, TUMBLER (FRONT & BACK)
- 07 - CABINET TOP & LOADING DOOR
- 07 - WIRING DIAGRAM
- 11 - DOOR SAFETY SWITCH
- 11 - SHELVES & ACCESSORIES
- 12 - DRAIN
- 14 - MIXING VALVE ASSY
- 15 - MOTOR, FLUID DRIVE & PUMP BELT
- 16 - PANELS
- 19 - PUMP ASSY
- 20 - TRANSMISSION ASSY
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 2 | 24706 | ASSY,FLUID DRIVE | $0.00 | |||
| 3 | 24703 | PIN,ROLL | $0.00 | |||
| 4 | 26116 | PULLEY,DRIVE | $0.00 | |||
| 5 | 23750 | PIN,ROLL | $0.00 | |||
| 6 | 20274 | NUT | WP62739 | $5.68 | ||
| 7 | 20277 | LOCKWASHER,3/8 STD X 3 | $0.00 | |||
| 8 | 20279 | WASHER,13/32IDX13/16OD | $0.00 | |||
| 9 | 23769 | PLATE,MOUNTING | $0.00 | |||
| 10 | 20255 | SCREW,3/8-16 X 1 HEX H | $0.00 | |||
| 11 | 24725 | MOTOR, ONE SPEED, 120V, 60 HZ. | $0.00 | |||
| 12 | Y24149 | SWITCH,MOTOR | $0.00 | |||
| 12 | 24140 | SWITCH,MOTOR | $0.00 | |||
| 13 | 20103 | WASHER | $0.00 | |||
| 14 | 20104 | WASHER | $0.00 | |||
| 15 | 20102 | WASHER | $0.00 | |||
| 16 | 25484 | GROUND WIRE | $0.00 | |||
| 17 | 21735 | LOCKWASHER,No.10 INTSHKP | $0.00 | |||
| 18 | 20530 | SCREW | WP3351614 | $6.64 | ||
| 19 | 23604 | NUT,HEX 10-32 LOCK | $0.00 | |||
| 20 | 23759 | WASHER V-BELT (PUMP TO MOTOR) | $12.40 | |||
| NI | 20299 | FLUID DRIVE FLUID-BULK | $0.00 |
*The price can change whitout warning
