Brand: Maytag
Model: FA4160 - WASHER

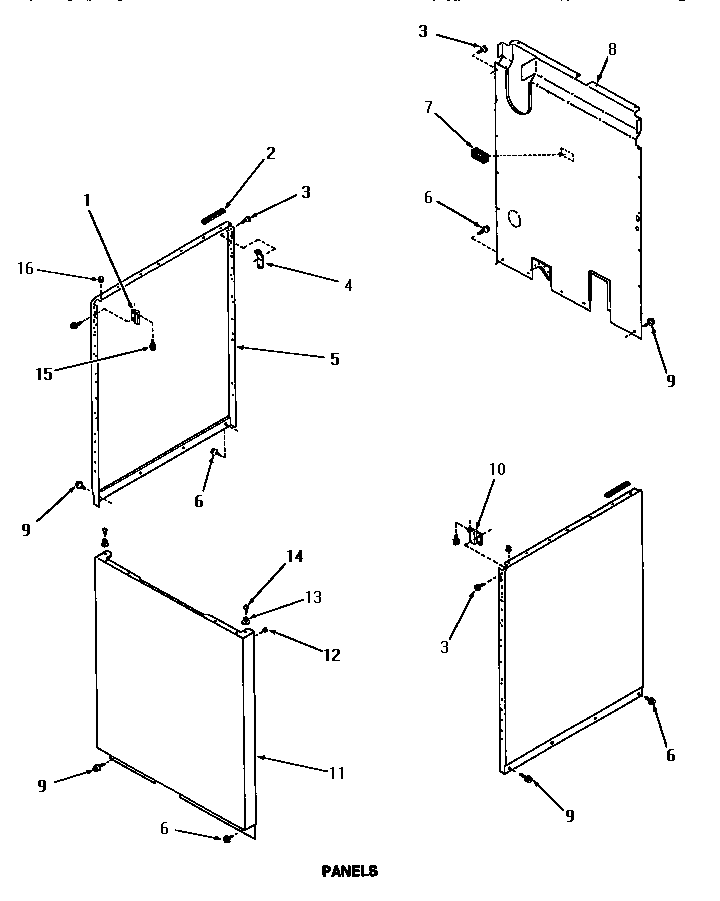

16 - PANELS
- 01 - 25832 & 25833 MIXING VALVE ASSEMBLIES
- 01 - BODY
- 01 - COVER SHEET
- 02 - ACCESSORIES
- 03 - DOOR PARTS
- 03 - INNER TUB
- 04 - 8318272 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)
- 04 - AGITATOR, SHAFT & FABRIC SOFTENER DISP
- 04 - MOTOR AND CONTROL UNIT PARTS
- 06 - BOOT, CHASSIS & DRAIN TUB
- 06 - LINT SCREEN, TUMBLER (FRONT & BACK)
- 07 - CABINET TOP & LOADING DOOR
- 07 - WIRING DIAGRAM
- 11 - DOOR SAFETY SWITCH
- 11 - SHELVES & ACCESSORIES
- 12 - DRAIN
- 14 - MIXING VALVE ASSY
- 15 - MOTOR, FLUID DRIVE & PUMP BELT
- 16 - PANELS
- 19 - PUMP ASSY
- 20 - TRANSMISSION ASSY
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 26932 | TOP HOLD-DOWN BRACKET, LEFT-FR | $0.00 | |||
| 2 | 80312 | BUMPER PAD | $0.00 | |||
| 3 | 51784 | SCREW,10B-16 X 1/2 HEX | $0.00 | |||
| 4 | 52487 | LUG,HOLD-DOWN | $0.00 | |||
| 5 | 26821A | PANEL,SIDE | $0.00 | |||
| 5 | 26821W | SIDE PANEL, LEFT OR RIGHT, WHI | $0.00 | |||
| 5 | 26821H | PANEL,SIDE | $0.00 | |||
| 5 | 26821L | PANEL,SIDE | $0.00 | |||
| 5 | 26821C | SIDE PANEL, RIGHT OR LEFT, COP | $0.00 | |||
| 5 | 26821K | SIDE PANEL, RIGHT OR LEFT, COF | $0.00 | |||
| 6 | 26415 | SCREW | WP27001200 | $5.34 | ||
| 7 | 23257 | PAD,BUMPER | $0.00 | |||
| 8 | 24342GR | REAR PANEL, GRAY | $0.00 | |||
| 9 | 26592 | HEX HEAD SCREW | $0.00 | |||
| 10 | 26690 | BRACKET,HOLD DOWN-R.H. | $0.00 | |||
| 11 | 26822A | PANEL,FRONT | $0.00 | |||
| 11 | 26822K | FRONT PANEL, COFFEE | $0.00 | |||
| 11 | 26822C | LOADING DOOR, COPPERTONE | $0.00 | |||
| 11 | 26822L | PANEL,FRONT | $0.00 | |||
| 11 | 26822H | PANEL,FRONT | $0.00 | |||
| 11 | 26822W | LOADING DOOR, WHITE | $0.00 | |||
| 12 | 20387 | BUMPER | $0.00 | |||
| 13 | 23020 | MOUNT,PANEL | $0.00 | |||
| 14 | Q6535 | SCREW,10B-16 X 3/4 ROU | $0.00 | |||
| 15 | 23008 | SCREW,10-24 X 3/4 SEMS | $0.00 | |||
| 16 | 21176 | BUMPER | $0.00 |
*The price can change whitout warning
