Brand: Maytag
Model: FA4160 - WASHER
20 - TRANSMISSION ASSY
- 01 - 25832 & 25833 MIXING VALVE ASSEMBLIES
- 01 - BODY
- 01 - COVER SHEET
- 02 - ACCESSORIES
- 03 - DOOR PARTS
- 03 - INNER TUB
- 04 - 8318272 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)
- 04 - AGITATOR, SHAFT & FABRIC SOFTENER DISP
- 04 - MOTOR AND CONTROL UNIT PARTS
- 06 - BOOT, CHASSIS & DRAIN TUB
- 06 - LINT SCREEN, TUMBLER (FRONT & BACK)
- 07 - CABINET TOP & LOADING DOOR
- 07 - WIRING DIAGRAM
- 11 - DOOR SAFETY SWITCH
- 11 - SHELVES & ACCESSORIES
- 12 - DRAIN
- 14 - MIXING VALVE ASSY
- 15 - MOTOR, FLUID DRIVE & PUMP BELT
- 16 - PANELS
- 19 - PUMP ASSY

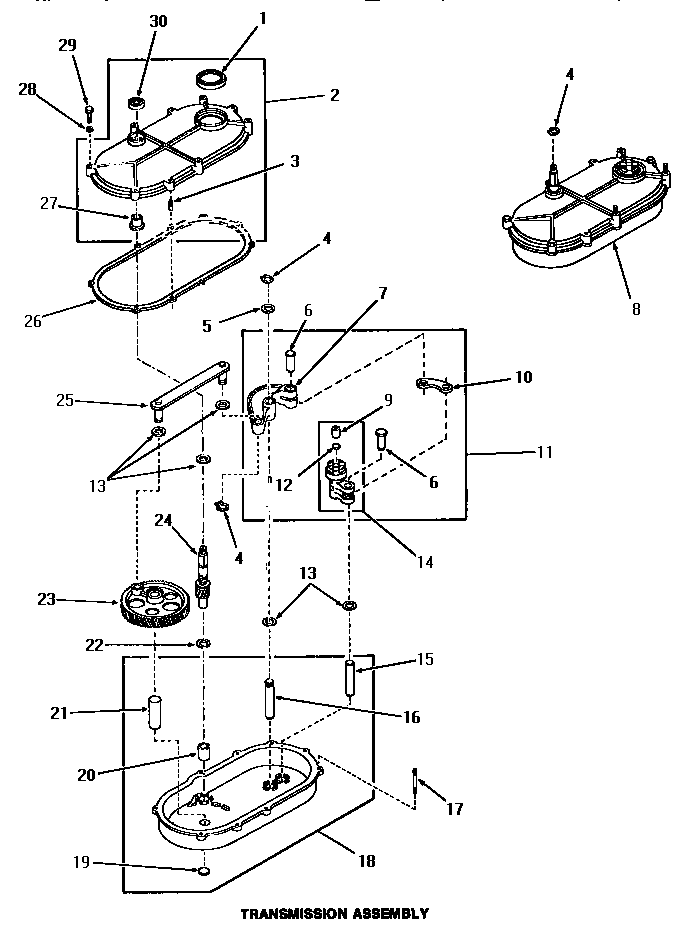

- 20 - TRANSMISSION ASSY
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 20199 | SEAL | $5.33 | |||
| 2 | 20216 | ASSY,TRANSMISSION COVE | $0.00 | |||
| 3 | 20197 | DOWEL PIN | $0.00 | |||
| 4 | 23751 | RING,RETAINING | $0.00 | |||
| 5 | 20212 | WASHER,.626IDX1.00ODX. | $0.00 | |||
| 6 | 01690 | PIN,LINK | $0.00 | |||
| 7 | 05005 | ASSY,ROCKER ARM | $0.00 | |||
| 8 | 23828 | ASSY,TRANSMISSION | $0.00 | |||
| 9 | 01711 | BEARING | $0.00 | |||
| 10 | Y04999 | LINK | $0.00 | |||
| 11 | 20220 | ASSY,ROCKER ARM | $0.00 | |||
| 12 | Y02479 | DISC,EXPANSION | $0.00 | |||
| 13 | 01791 | WASHER,.626 X 1.125 X1 | $0.00 | |||
| 14 | 20219 | DRIVE CLUTCH ASSEMBLY | $0.00 | |||
| 15 | 01688 | PIN | $0.00 | |||
| 16 | 24817 | PIN,ROCKER ARM | $0.00 | |||
| 17 | 20155 | STUD,DOUBLE END 1/4-20 | $0.00 | |||
| 18 | 23927 | ASSY,TRANSMISSION xREPLACE | $0.00 | |||
| 19 | Y02769 | DISC | $0.00 | |||
| 20 | 01993 | BEARING,7/8ODX5/8ID | $0.00 | |||
| 21 | 03477 | PIN | $0.00 | |||
| 22 | 20198 | WASHER,.626IDX1.250ODX | $0.00 | |||
| 23 | 02175 | GEAR,CRANK | $0.00 | |||
| 24 | 23645 | PINION | $0.00 | |||
| 25 | 03969 | ROD,CONNECTING | $0.00 | |||
| 26 | 20059 | GASKET | $0.00 | |||
| 27 | 20082 | BEARING | $0.00 | |||
| 28 | 03189 | LOCKWASHER,1/4 STD-C P | $0.00 | |||
| 29 | 20257 | SCREW,1/4-20 X 1-1/4 H | $0.00 | |||
| 30 | 20200 | SEAL | $4.13 | |||
| NI | 02528 | TRANSMISSION LUBRICANT | $0.00 |
*The price can change whitout warning
