Brand: Maytag
Model: FA4160 - WASHER

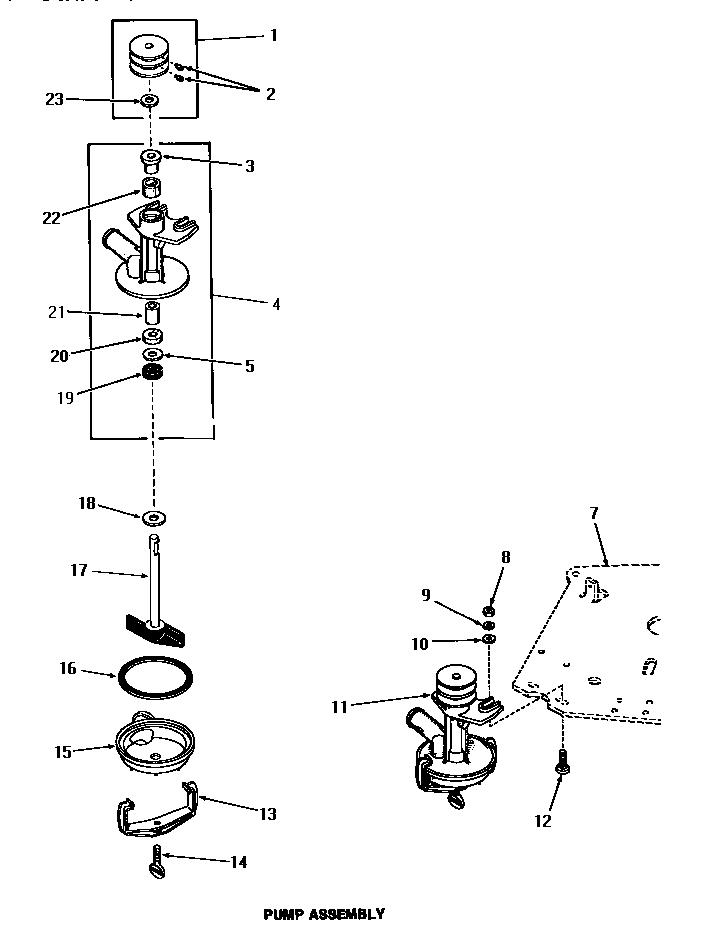

19 - PUMP ASSY
- 01 - 25832 & 25833 MIXING VALVE ASSEMBLIES
- 01 - BODY
- 01 - COVER SHEET
- 02 - ACCESSORIES
- 03 - DOOR PARTS
- 03 - INNER TUB
- 04 - 8318272 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)
- 04 - AGITATOR, SHAFT & FABRIC SOFTENER DISP
- 04 - MOTOR AND CONTROL UNIT PARTS
- 06 - BOOT, CHASSIS & DRAIN TUB
- 06 - LINT SCREEN, TUMBLER (FRONT & BACK)
- 07 - CABINET TOP & LOADING DOOR
- 07 - WIRING DIAGRAM
- 11 - DOOR SAFETY SWITCH
- 11 - SHELVES & ACCESSORIES
- 12 - DRAIN
- 14 - MIXING VALVE ASSY
- 15 - MOTOR, FLUID DRIVE & PUMP BELT
- 16 - PANELS
- 19 - PUMP ASSY
- 20 - TRANSMISSION ASSY
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 23770 | ASSY,PULLEY | $0.00 | |||
| 2 | 02771 | SCREW,1/4-20X3/8 HEX S | $0.00 | |||
| 3 | 20072 | BEARING | $0.00 | |||
| 4 | 20763 | PUMP BODY | $0.00 | |||
| 5 | 20093 | WASHER,29/64IDX63/64OD | $0.00 | |||
| 7 | Y00000000 | SEE NOTE MOUNTING PLATE | $0.00 | |||
| 8 | 20275 | NUT | WPW10139757 | $0.00 | ||
| 9 | 03189 | LOCKWASHER,1/4 STD-C P | $0.00 | |||
| 10 | 20176 | WASHER,.2656IDX9/16ODX | $0.00 | |||
| 11 | 25178 | ASSY,PUMP | WG04F06280 | $0.00 | ||
| 12 | 24390 | BOLT | $0.00 | |||
| 13 | 20066 | PUMP CLAMP | $4.58 | |||
| 14 | 20161 | SCREW | $1.48 | |||
| 15 | 04316 | BOTTOM,PUMP | $0.00 | |||
| 16 | 20097 | GASKET | $0.00 | |||
| 17 | 04372 | ASSY,IMPELLER | $0.00 | |||
| 18 | 20099 | WASHER,.440IDX1.125ODX | $0.00 | |||
| 19 | 20095 | SEAL | $0.00 | |||
| 20 | 20094 | PACKING MATERIAL | $0.00 | |||
| 21 | 20071 | BEARING | $0.00 | |||
| 22 | 26479 | WICK | $0.00 | |||
| 23 | 26919 | WASHER,PUMP PULLEY | $0.00 | |||
| NI | 131P3 | KIT,PUMP KT85 | $0.00 |
*The price can change whitout warning
