Brand: Maytag
Model: FA4160 - WASHER

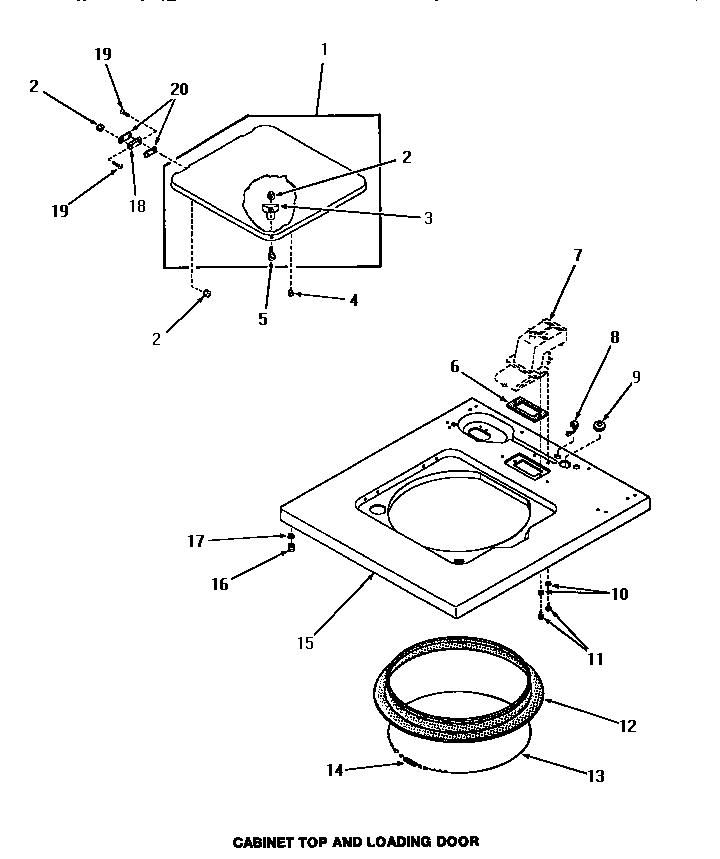

07 - CABINET TOP & LOADING DOOR
- 01 - 25832 & 25833 MIXING VALVE ASSEMBLIES
- 01 - BODY
- 01 - COVER SHEET
- 02 - ACCESSORIES
- 03 - DOOR PARTS
- 03 - INNER TUB
- 04 - 8318272 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)
- 04 - AGITATOR, SHAFT & FABRIC SOFTENER DISP
- 04 - MOTOR AND CONTROL UNIT PARTS
- 06 - BOOT, CHASSIS & DRAIN TUB
- 06 - LINT SCREEN, TUMBLER (FRONT & BACK)
- 07 - CABINET TOP & LOADING DOOR
- 07 - WIRING DIAGRAM
- 11 - DOOR SAFETY SWITCH
- 11 - SHELVES & ACCESSORIES
- 12 - DRAIN
- 14 - MIXING VALVE ASSY
- 15 - MOTOR, FLUID DRIVE & PUMP BELT
- 16 - PANELS
- 19 - PUMP ASSY
- 20 - TRANSMISSION ASSY
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 26901H | ASSY,LID & CATCH | $0.00 | |||
| 1 | 26901A | LOADING DOOR, AVOCADO | $0.00 | |||
| 1 | 26901K | LOADING DOOR, COFFEE | $0.00 | |||
| 1 | 26901L | ASSY,LID & CATCH | $0.00 | |||
| 1 | 26901W | ASSY,LID & CATCH xREPLACE | $0.00 | |||
| 1 | 26901C | LOADING DOOR, COPPERTONE | $0.00 | |||
| 2 | 21752 | NUT,8-32 HEX BRILOCK | $0.00 | |||
| 3 | 25217 | CATCH,LID SWITCH | $0.00 | |||
| 4 | 21176 | BUMPER | $0.00 | |||
| 5 | 26769 | ASSY,SCREW & WASHER | $0.00 | |||
| 6 | 23255 | GASKET | $0.00 | |||
| 7 | Y00000000 | SEE NOTE WATER INLET | $0.00 | |||
| 8 | 21903 | STRAIN RELIEF | $0.00 | |||
| 9 | 20118 | GROMMET,1982 INV | $0.00 | |||
| 10 | 20493 | WASHER,11/64IDX3/8ODX3 | $0.00 | |||
| 11 | 55469 | SCREW, 8B-16X5/8 TAP | $0.00 | |||
| 12 | 25277 | GUARD, RIM | $0.00 | |||
| 13 | 22352 | RETAINER,WIRE | $0.00 | |||
| 14 | 20791 | SPRING | $0.00 | |||
| 15 | 26819W | CABINET TOP, WHITE | $0.00 | |||
| 15 | 26819A | CABINET TOP, AVOCADO | $0.00 | |||
| 15 | 26819K | CABINET TOP, COFFEE | $0.00 | |||
| 15 | 26819C | CABINET TOP, COPPERTONE | $0.00 | |||
| 15 | 26819L | ASSY,TOP | $0.00 | |||
| 15 | 26819H | CABINET TOP, HARVEST GOLD | $0.00 | |||
| 16 | 23007 | CAGED NUT | $0.00 | |||
| 17 | 24861 | LOCKWASHER,.448X.789SH | $0.00 | |||
| 18 | 21583 | HINGE | $0.00 | |||
| 19 | 22649 | SCREW,8-32 X 13/32 FL | $0.00 | |||
| 20 | 21584 | GASKET | $0.00 |
*The price can change whitout warning
