Brand: Maytag
Model: FA4160 - WASHER

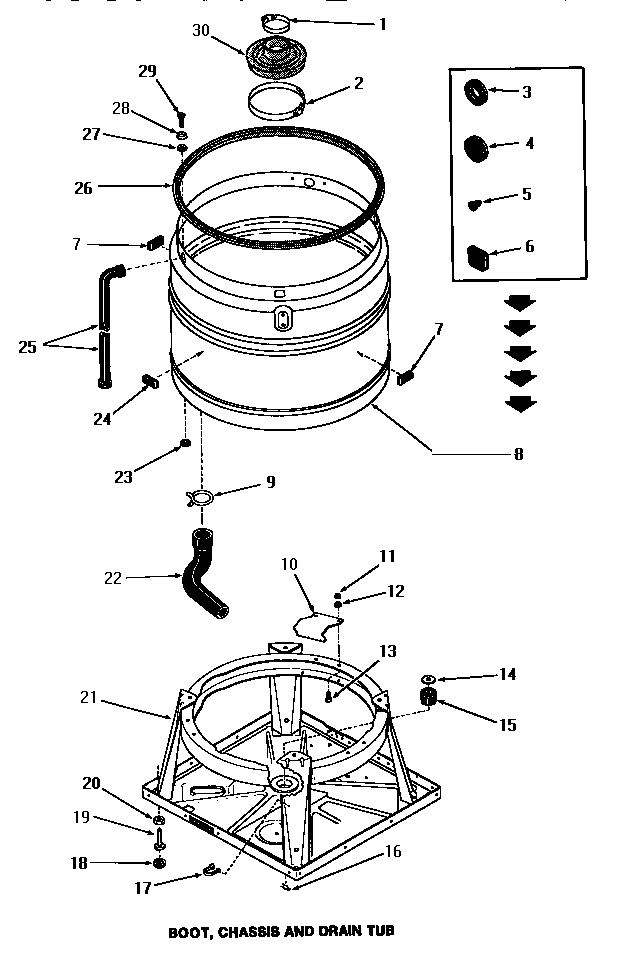

06 - BOOT, CHASSIS & DRAIN TUB
- 01 - 25832 & 25833 MIXING VALVE ASSEMBLIES
- 01 - BODY
- 01 - COVER SHEET
- 02 - ACCESSORIES
- 03 - DOOR PARTS
- 03 - INNER TUB
- 04 - 8318272 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)
- 04 - AGITATOR, SHAFT & FABRIC SOFTENER DISP
- 04 - MOTOR AND CONTROL UNIT PARTS
- 06 - BOOT, CHASSIS & DRAIN TUB
- 06 - LINT SCREEN, TUMBLER (FRONT & BACK)
- 07 - CABINET TOP & LOADING DOOR
- 07 - WIRING DIAGRAM
- 11 - DOOR SAFETY SWITCH
- 11 - SHELVES & ACCESSORIES
- 12 - DRAIN
- 14 - MIXING VALVE ASSY
- 15 - MOTOR, FLUID DRIVE & PUMP BELT
- 16 - PANELS
- 19 - PUMP ASSY
- 20 - TRANSMISSION ASSY
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 20107 | UPPER CLAMP | $0.00 | |||
| 2 | 20108 | LOWER CLAMP | 80043 | $0.00 | ||
| 3 | 20118 | GROMMET,1982 INV | $0.00 | |||
| 4 | 20305 | GROMMET | $0.00 | |||
| 5 | 21393 | GROMMET | $0.00 | |||
| 6 | 21651 | GROMMET | $0.00 | |||
| 7 | 23258 | PAD,BUMPER | $0.00 | |||
| 8 | 25983 | DRAIN TUB, SHUR-FIL | $0.00 | |||
| 9 | 10108 | SEAL | $0.00 | |||
| 10 | 21905 | PLATE,SNUBBER | $0.00 | |||
| 11 | 20275 | NUT | WPW10139757 | $0.00 | ||
| 12 | 03189 | LOCKWASHER,1/4 STD-C P | $0.00 | |||
| 13 | 02422 | SCREW,1/4-20 X 1/2 HEX | $0.00 | |||
| 14 | 20162 | SPACER | $0.00 | |||
| 15 | 20195 | GROMMET | $0.00 | |||
| 16 | 26012 | PIN CLIP | $0.00 | |||
| 17 | 22837 | STRAP,WIRE | $0.00 | |||
| 18 | 21749 | RUBBER FOOT | WP40016001 | $6.06 | ||
| 19 | 20409 | LEVELING LEG | 40039001, 22003428 | $0.00 | ||
| 20 | Y21899 | NUT- LOCK | WP210385 | $5.63 | ||
| 21 | 26028 | ASSY,CHASSIS xREPLACE | $0.00 | |||
| 22 | 25112 | HOSE | $0.00 | |||
| 23 | 20115 | GROMMET | $0.00 | |||
| 24 | 23257 | PAD,BUMPER | $0.00 | |||
| 25 | 22818 | HOSE | $0.00 | |||
| 26 | 21233 | GASKET | $0.00 | |||
| 27 | 20112 | GROMMET | $0.00 | |||
| 28 | 20111 | WASHER | $0.00 | |||
| 29 | 20259 | SCREW | $0.00 | |||
| 30 | 20129 | SPEED QUEEN BOOT | $9.99 |
*The price can change whitout warning
