Brand: Maytag
Model: FA4160 - WASHER

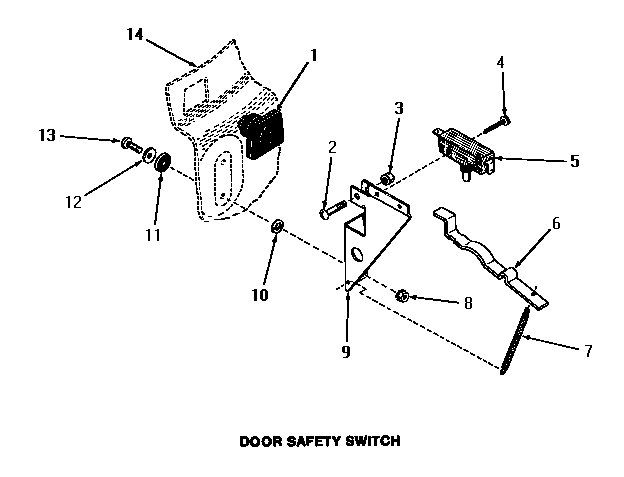

11 - DOOR SAFETY SWITCH
- 01 - 25832 & 25833 MIXING VALVE ASSEMBLIES
- 01 - BODY
- 01 - COVER SHEET
- 02 - ACCESSORIES
- 03 - DOOR PARTS
- 03 - INNER TUB
- 04 - 8318272 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)
- 04 - AGITATOR, SHAFT & FABRIC SOFTENER DISP
- 04 - MOTOR AND CONTROL UNIT PARTS
- 06 - BOOT, CHASSIS & DRAIN TUB
- 06 - LINT SCREEN, TUMBLER (FRONT & BACK)
- 07 - CABINET TOP & LOADING DOOR
- 07 - WIRING DIAGRAM
- 11 - DOOR SAFETY SWITCH
- 11 - SHELVES & ACCESSORIES
- 12 - DRAIN
- 14 - MIXING VALVE ASSY
- 15 - MOTOR, FLUID DRIVE & PUMP BELT
- 16 - PANELS
- 19 - PUMP ASSY
- 20 - TRANSMISSION ASSY
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 23591 | DIAPHRAGM | $3.23 | |||
| 2 | Y02370 | SCREW,10-24X15/16 HEX | $0.00 | |||
| 3 | 22001 | NUT,10-24 NYLON HEX BR | $0.00 | |||
| 4 | 51783 | SCREW,6B-20 X 7/8 HEX | $0.00 | |||
| 5 | 23540 | SWITCH | $0.00 | |||
| 6 | 23592 | ARM | $4.05 | |||
| 7 | 26766 | SPRING | $0.00 | |||
| 8 | 23951 | NUT | M0282009 | $12.22 | ||
| 9 | 22783 | BRACKET | $0.00 | |||
| 10 | 21735 | LOCKWASHER,No.10 INTSHKP | $0.00 | |||
| 11 | 02928 | WASHER | $0.00 | |||
| 12 | 20492 | WASHER | $0.00 | |||
| 13 | 21081 | SCREW,10-24 X 1/2 RD H | SP1627 | $0.00 | ||
| 14 | Y00000000 | SEE NOTE DRAIN TUB | $0.00 |
*The price can change whitout warning
