Brand: Maytag
Model: MFR50PNAVS - WASHER

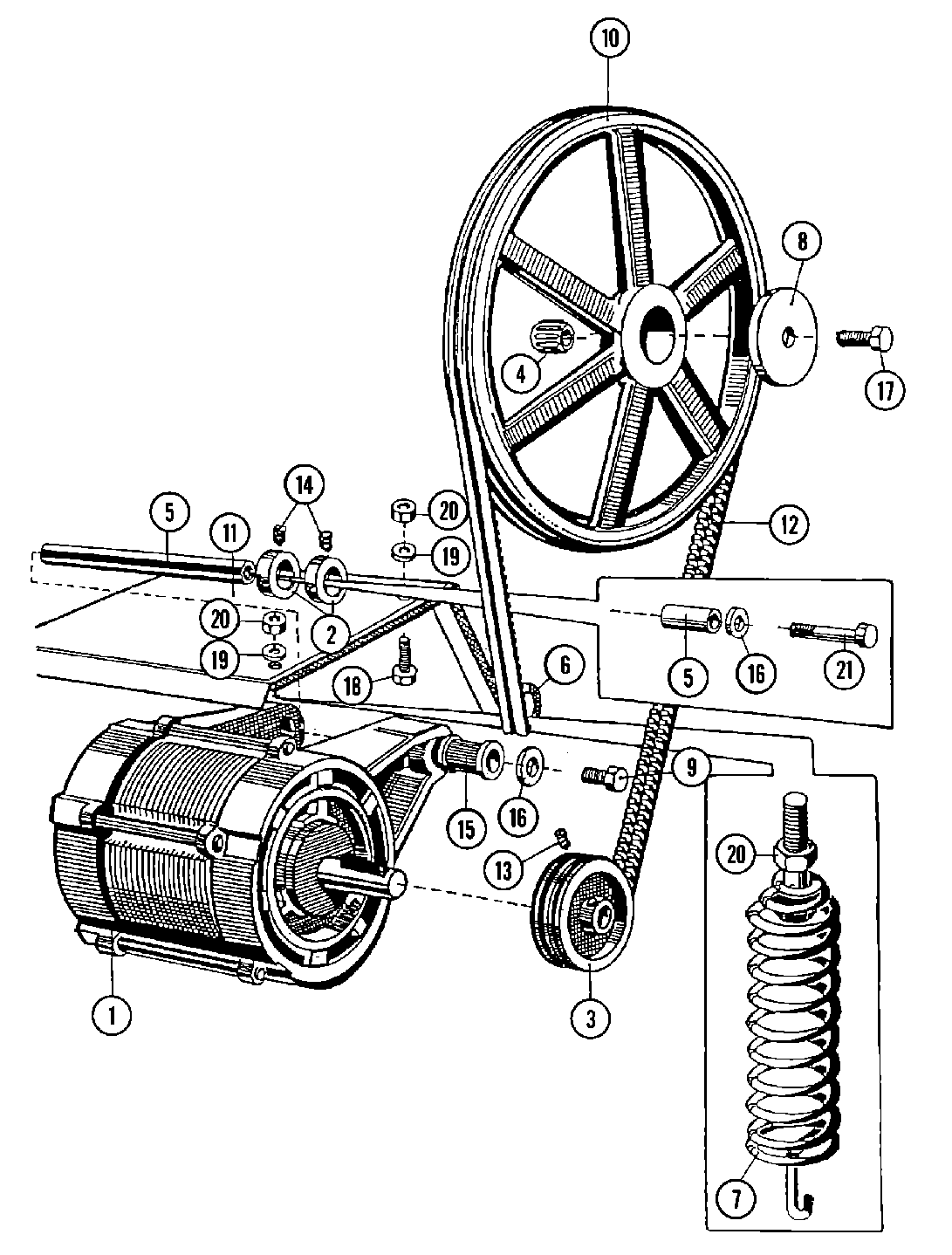

09 - MOTOR & BASKET PULLEY
- 01 - SOAP BOX & TOP COVER ASSEMBLY
- 02 - FRAME PARTS
- 05 - DOOR
- 05 - FRESH FOOD INNER DOOR
- 05 - SECTION
- 06 - BASKET & OUTER SHELL ASSEMBLY
- 07 - REFRIGERATOR DOOR
- 08 - DRAIN & HOSE ASSEMBLY
- 09 - AIR FLOW PARTS
- 09 - ICE MAKER
- 09 - MOTOR & BASKET PULLEY
- 10 - BASE FRAME
- 11 - CABINET
- 13 - BASE FRAME (SERIES 11)
- 14 - CABINET (SERIES 11)
- 15 - TIMER & COIN ASSEMBLY (SERIES 11)
- 16 - SOAP BOX & TOP COVER ASSEMBLY(SERIES 11)
- 17 - DOOR LOCK ASSEMBLY (SERIES 11)
- 18 - DRAIN & HOSE ASSEMBLY (SERIES 11)
- 19 - WATER VALVE & REAR PANEL (SERIES 11)
- 20 - MOTOR & BASKET PULLEY (SERIES 11)
- 21 - BASKET & OUTER SHELL ASSEMBLY(SERIES 11)
- 23 - BEARINGS & TRUNNION ASSEMBLY (SERIES 11)
- 24 - ELECTRICAL COMPONENTS (SERIES 11)
- 25 - CONTROL PANEL (PN MODELS SERIES 11)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 001 | 23001269 | MOTOR (SINGLE PHASE-240/208V) | $0.00 | |||
| 001 | 23001271 | MOTOR (THREE PHASE 240/208V) | $0.00 | |||
| 001 | 23002317 | SWITCH, CENTRIFUGAL | $0.00 | |||
| 002 | 23001272 | COLLAR, RETAINER | $0.00 | |||
| 003 | 23001273 | V-PULLEY (DIA. 53 X PZ 60HZ) | $0.00 | |||
| 004 | 23001274 | RING, TOLERANCE | $0.00 | |||
| 005 | 23001275 | ROD, MOTOR SUPPORT | $0.00 | |||
| 006 | 23001278 | TENSIONER, BELT | $0.00 | |||
| 007 | 23001279 | BELT, TENSION SPRING | $0.00 | |||
| 008 | 23001281 | WASHER (DIA. 90 X 10) | $0.00 | |||
| 009 | 23001283 | BOLT (M12 X 35) | $0.00 | |||
| 010 | 23001285 | PULLEY, BASKET (DIA. 450) | $0.00 | |||
| 011 | 23001286 | SHIELD, MOTOR | $0.00 | |||
| 012 | 23001287 | V-BELT (XPZ X 1950) | WP23001287 | $0.00 | ||
| 013 | 23001289 | SCREW, ALLEN SET (M8 X 10) | $0.00 | |||
| 014 | 23001290 | SCREW, ALLEN SET (M6 X 6) | $0.00 | |||
| 015 | 23001291 | BUSHING, RUBBER MOTOR MOUNT | $0.00 | |||
| 016 | 23001292 | WASHER (13) | $0.00 | |||
| 017 | 23001293 | BOLT (M14 X 50) | $0.00 | |||
| 018 | 23001264 | BOLT | 23002475 | $13.01 | ||
| 019 | 23001265 | WASHER (8) | 23002727 | $0.00 | ||
| 020 | 23001266 | NUT M8 | $0.00 | |||
| 021 | 23001294 | BOLT (M12 X 70) | $0.00 |
*The price can change whitout warning
