Brand: Maytag
Model: MFR50PNAVS - WASHER

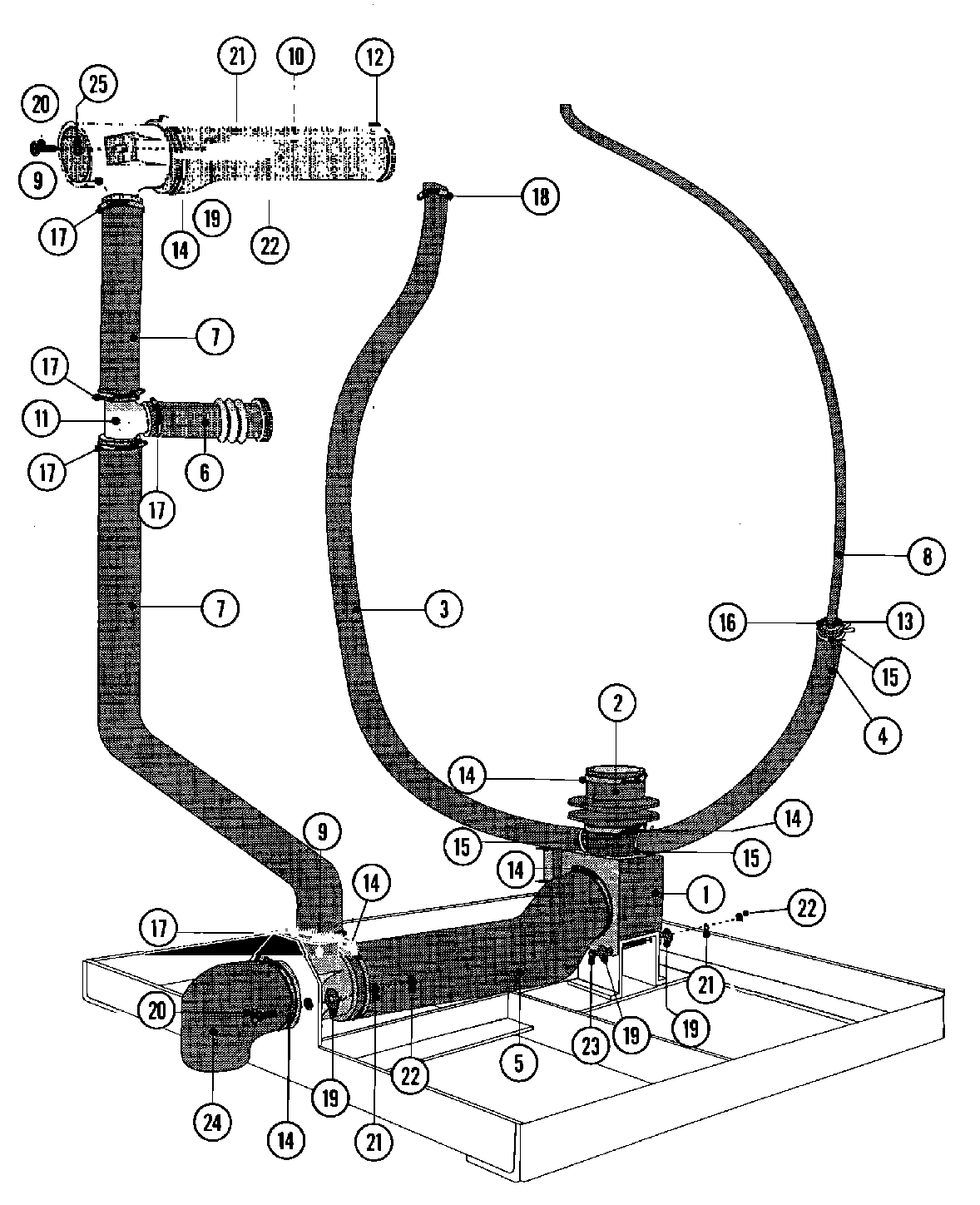

18 - DRAIN & HOSE ASSEMBLY (SERIES 11)
- 01 - SOAP BOX & TOP COVER ASSEMBLY
- 02 - FRAME PARTS
- 05 - DOOR
- 05 - FRESH FOOD INNER DOOR
- 05 - SECTION
- 06 - BASKET & OUTER SHELL ASSEMBLY
- 07 - REFRIGERATOR DOOR
- 08 - DRAIN & HOSE ASSEMBLY
- 09 - AIR FLOW PARTS
- 09 - ICE MAKER
- 09 - MOTOR & BASKET PULLEY
- 10 - BASE FRAME
- 11 - CABINET
- 13 - BASE FRAME (SERIES 11)
- 14 - CABINET (SERIES 11)
- 15 - TIMER & COIN ASSEMBLY (SERIES 11)
- 16 - SOAP BOX & TOP COVER ASSEMBLY(SERIES 11)
- 17 - DOOR LOCK ASSEMBLY (SERIES 11)
- 18 - DRAIN & HOSE ASSEMBLY (SERIES 11)
- 19 - WATER VALVE & REAR PANEL (SERIES 11)
- 20 - MOTOR & BASKET PULLEY (SERIES 11)
- 21 - BASKET & OUTER SHELL ASSEMBLY(SERIES 11)
- 23 - BEARINGS & TRUNNION ASSEMBLY (SERIES 11)
- 24 - ELECTRICAL COMPONENTS (SERIES 11)
- 25 - CONTROL PANEL (PN MODELS SERIES 11)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 001 | 23001244 | VALVE, DRAIN (240V-50/60HZ) | $0.00 | |||
| 002 | 23002907 | TUB, OUTLET VALVE HOSE | $0.00 | |||
| 003 | 23001246 | HOSE, BOTTOM FILL | $0.00 | |||
| 004 | 23001247 | HOSE, AIR DOME (30 CM) | $0.00 | |||
| 005 | 23001248 | HOSE, DRAIN | $0.00 | |||
| 006 | 23001250 | HOSE, AIR VENT | $0.00 | |||
| 007 | 23001251 | HOSE, OVERFLOW | $0.00 | |||
| 008 | 23001252 | HOSE, WATER LEVEL SWITCH | $0.00 | |||
| 009 | 23001253 | DRAIN TEE | $0.00 | |||
| 010 | 23001254 | AIR VENT HOSE, SOAP BOX | $0.00 | |||
| 011 | 23001255 | TEE, OVERFLOW HOSE | $0.00 | |||
| 012 | 23001256 | CLAMP, HOSE (60-80) | 34001289 | $0.00 | ||
| 013 | 23001257 | CLAMP | WP596669 | $6.27 | ||
| 014 | 23001258 | CLAMP | WP696392 | $6.01 | ||
| 015 | 23001259 | CLAMP | WP285655 | $5.88 | ||
| 016 | 23001260 | BUSHING, AIR DOME HOSE | $0.00 | |||
| 017 | 23001261 | COLLAR | WP616099 | $5.82 | ||
| 018 | 23001262 | COLLAR | WP616099 | $5.82 | ||
| 019 | 23002437 | WASHER M8 | 23001263 | $0.00 | ||
| 020 | 23002475 | BOLT | $13.01 | |||
| 021 | 23002358 | WASHER M8 | 23002727 | $0.00 | ||
| 022 | 23002435 | NUT (M8) | $0.00 | |||
| 023 | 23002908 | SCREW (M8X120) | $0.00 | |||
| 024 | 23002822 | ELBOW, 90 DEGREE | $0.00 | |||
| 025 | 23002653 | WASHER (8/6) | $0.00 |
*The price can change whitout warning
