Brand: Maytag
Model: MFR50PNAVS - WASHER

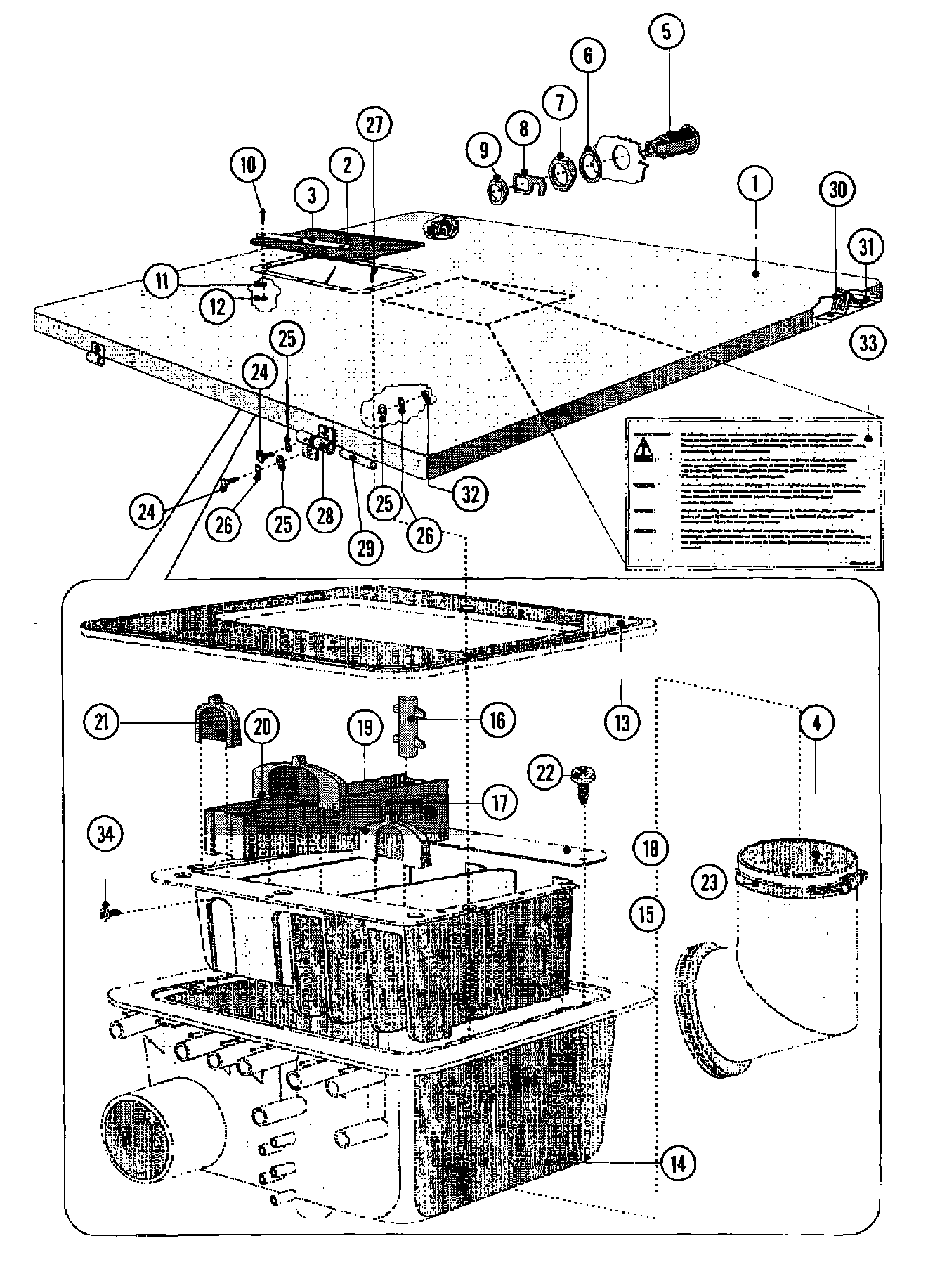

16 - SOAP BOX & TOP COVER ASSEMBLY(SERIES 11)
- 01 - SOAP BOX & TOP COVER ASSEMBLY
- 02 - FRAME PARTS
- 05 - DOOR
- 05 - FRESH FOOD INNER DOOR
- 05 - SECTION
- 06 - BASKET & OUTER SHELL ASSEMBLY
- 07 - REFRIGERATOR DOOR
- 08 - DRAIN & HOSE ASSEMBLY
- 09 - AIR FLOW PARTS
- 09 - ICE MAKER
- 09 - MOTOR & BASKET PULLEY
- 10 - BASE FRAME
- 11 - CABINET
- 13 - BASE FRAME (SERIES 11)
- 14 - CABINET (SERIES 11)
- 15 - TIMER & COIN ASSEMBLY (SERIES 11)
- 16 - SOAP BOX & TOP COVER ASSEMBLY(SERIES 11)
- 17 - DOOR LOCK ASSEMBLY (SERIES 11)
- 18 - DRAIN & HOSE ASSEMBLY (SERIES 11)
- 19 - WATER VALVE & REAR PANEL (SERIES 11)
- 20 - MOTOR & BASKET PULLEY (SERIES 11)
- 21 - BASKET & OUTER SHELL ASSEMBLY(SERIES 11)
- 23 - BEARINGS & TRUNNION ASSEMBLY (SERIES 11)
- 24 - ELECTRICAL COMPONENTS (SERIES 11)
- 25 - CONTROL PANEL (PN MODELS SERIES 11)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 001 | 23002968 | COVER, STAINLESS STEEL | $0.00 | |||
| 002 | 23001003 | RUBBER COVER, SOAP BOX | WP23001003 | $0.00 | ||
| 003 | 23002893 | LATH, RUBBER COVER SOAP HOPPER | $0.00 | |||
| 004 | 23001005 | RUBBER HOSE, SOAP BOX | $0.00 | |||
| 005 | 23001006 | LOCK, TOP PANEL | $0.00 | |||
| 005 | 23002673 | KEY-TOP PANEL (25001) | WP23002673 | $0.00 | ||
| 006 | 23001007 | WASHER, FIBER | $0.00 | |||
| 007 | 23001008 | LOCK NUT (LARGE) | $0.00 | |||
| 008 | 23001009 | LOCK HOOK (SHORT) | $0.00 | |||
| 008 | 23001010 | LOCK HOOK (LONG) | $0.00 | |||
| 009 | 23001011 | NUT | $0.00 | |||
| 010 | 23001012 | SCREW (M4 X 12 STNLS STEEL) | $0.00 | |||
| 011 | 23001636 | WASHER | $0.00 | |||
| 012 | 23002652 | NUT (QTY OF 4 = 1 PIECE) | $0.00 | |||
| 013 | 23001015 | RUBBER SEAL, SOAP BOX | $0.00 | |||
| 014 | 23001016 | SOAP BOX HOUSING | WP23001016 | $0.00 | ||
| 015 | 23001017 | INSERT | WP23001017 | $67.23 | ||
| 016 | 23001018 | SIPHON | $0.00 | |||
| 017 | 23001019 | TRAY | $0.00 | |||
| 018 | 23001020 | COVER, PLATE | $0.00 | |||
| 019 | 23001021 | DRAWER, PREWASH | $0.00 | |||
| 020 | 23001022 | DRAWER, MAIN WASH | $0.00 | |||
| 021 | 23001023 | DRAWER | $4.69 | |||
| 022 | 23001024 | SCREW | $0.00 | |||
| 023 | 23001025 | CLAMP | WP696392 | $6.01 | ||
| 024 | 23002462 | SCREW (M6 X 20) LU | $0.00 | |||
| 025 | 23001027 | WASHER | WP25100 | $5.09 | ||
| 026 | 23002756 | LOCKWASHER | $7.90 | |||
| 027 | 23002894 | SCREW (M5X15) | $0.00 | |||
| 028 | 23001030 | HINGE, TOP COVER | W11031729 | $0.00 | ||
| 029 | 23001031 | HINGE SHAFT (10 X 56 BRASS) | $0.00 | |||
| 030 | 23001032 | CLAMP, SRV | $0.00 | |||
| 031 | 23001033 | RIVETS, BLIND (DIA. 3.2 X 8)LU | $0.00 | |||
| 032 | 23002436 | NUT | 23001312 | $15.36 | ||
| 033 | 23001550 | LABEL, EARTH | $0.00 | |||
| 034 | NLA | SCREW, SLOTTED (PAN HEAD) | WG03A02017 | $0.00 |
*The price can change whitout warning
