Brand: Maytag
Model: MFR50PNAVS - WASHER

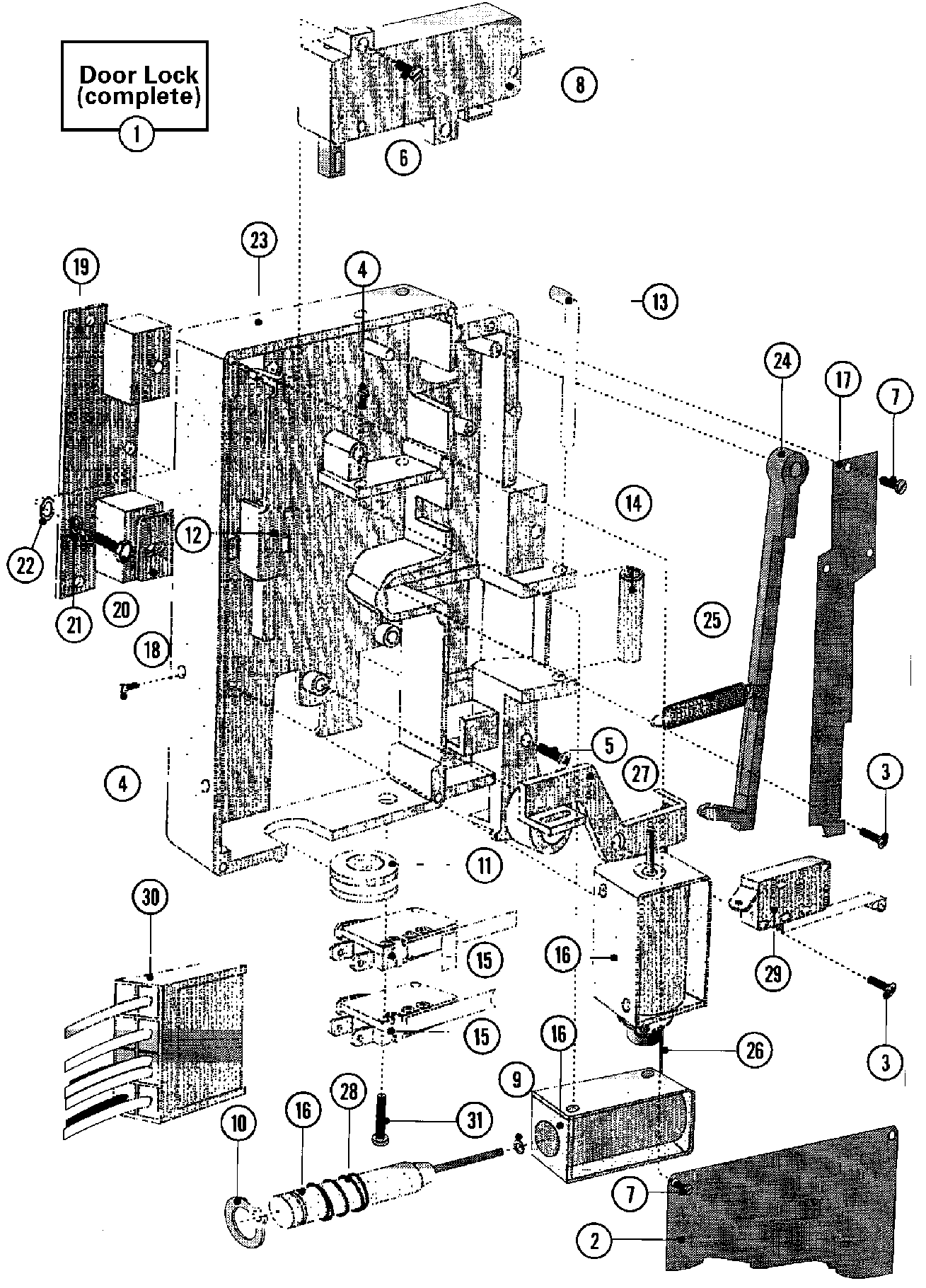

17 - DOOR LOCK ASSEMBLY (SERIES 11)
- 01 - SOAP BOX & TOP COVER ASSEMBLY
- 02 - FRAME PARTS
- 05 - DOOR
- 05 - FRESH FOOD INNER DOOR
- 05 - SECTION
- 06 - BASKET & OUTER SHELL ASSEMBLY
- 07 - REFRIGERATOR DOOR
- 08 - DRAIN & HOSE ASSEMBLY
- 09 - AIR FLOW PARTS
- 09 - ICE MAKER
- 09 - MOTOR & BASKET PULLEY
- 10 - BASE FRAME
- 11 - CABINET
- 13 - BASE FRAME (SERIES 11)
- 14 - CABINET (SERIES 11)
- 15 - TIMER & COIN ASSEMBLY (SERIES 11)
- 16 - SOAP BOX & TOP COVER ASSEMBLY(SERIES 11)
- 17 - DOOR LOCK ASSEMBLY (SERIES 11)
- 18 - DRAIN & HOSE ASSEMBLY (SERIES 11)
- 19 - WATER VALVE & REAR PANEL (SERIES 11)
- 20 - MOTOR & BASKET PULLEY (SERIES 11)
- 21 - BASKET & OUTER SHELL ASSEMBLY(SERIES 11)
- 23 - BEARINGS & TRUNNION ASSEMBLY (SERIES 11)
- 24 - ELECTRICAL COMPONENTS (SERIES 11)
- 25 - CONTROL PANEL (PN MODELS SERIES 11)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 001 | 23003679 | DOOR LATCH COMPLETE (MC/MN) | WP23003679 | $0.00 | ||
| 001 | Y23002897 | LOCK, DOOR (COMPLETE) | WPY23002897 | $0.00 | ||
| 002 | 23001130 | PLATE, COVER (STNLS STEEL) | $0.00 | |||
| 003 | 23001131 | SCREW | $7.76 | |||
| 004 | 23001132 | SCREW (M3 X 4 CROSS RECESSED) | $0.00 | |||
| 005 | 23001133 | SCREW | $24.18 | |||
| 006 | 23001070 | SCREW (M4X10) | $0.00 | |||
| 007 | 23001134 | BOLT (M3 X 6) | $0.00 | |||
| 008 | 23001135 | BIMETAL, ACTUATOR (230V) | WP23001135 | $0.00 | ||
| 009 | 23001136 | WASHER (DIA. 5.1 X 3.3 X 0.1) | $0.00 | |||
| 010 | 23001137 | RING, RETAINING (G10) | $0.00 | |||
| 011 | 23001138 | BUSHING, CABLE PASSAGE | $0.00 | |||
| 012 | 23001140 | BAR, LOCKING | $0.00 | |||
| 013 | 23001142 | RETAINER, LOCK TUBE (DIA.4X45) | WP23001142 | $0.00 | ||
| 014 | 23001143 | LOCK TUBE (DIA. 4X23.5 STNLS) | $0.00 | |||
| 015 | 23001144 | MICROSWITCH, SHORT LEVER | $0.00 | |||
| 016 | 23001146 | COIL (240V) | WP23001146 | $0.00 | ||
| 016 | 23001147 | COIL (120V) | $0.00 | |||
| 017 | 23001149 | LEAF SPRING, LATCH BAR | W10859569 | $0.00 | ||
| 018 | 23001155 | SHIM | $3.59 | |||
| 019 | 23001156 | SPACER, LOCK | WP23001156 | $0.00 | ||
| 020 | 23002353 | SCREW (M6X12) | $0.00 | |||
| 021 | 23002130 | WASHER (6) | $0.00 | |||
| 022 | 23001159 | WASHER (DIA. 14X8.6X1 STNLS)LU | 23001608 | $0.00 | ||
| 023 | Y23002898 | GROUND, PLATE LOCK | $0.00 | |||
| 024 | 23002899 | HANDLE, LOCKING PART | WP23002899 | $0.00 | ||
| 025 | 23002900 | SPRING, LOCKING PART | $0.00 | |||
| 026 | 23002901 | ACTUATOR | 23001152 | $19.07 | ||
| 027 | NLA | LEVEL, OPENING | WG03A02017 | $0.00 | ||
| 028 | 23002903 | SPRING, LOCKING PART | $0.00 | |||
| 029 | 23002337 | MICROSWITCH W/ROLLER ARM | WP23002337 | $0.00 | ||
| 030 | 23002904 | WIRING, DOOR LOCK | $0.00 | |||
| 030 | 23002905 | WIRING, DOOR LOCK | $0.00 | |||
| 031 | 23002906 | SCREW (M3X25) | $0.00 |
*The price can change whitout warning
